Connector Accessory, LI, LE, LX, LXI molded case circuit breakers, 300–600A, mechanical lug kit, aluminum or copper

CB ACCESSORY MECHANICAL LUG K

SQDAL600LI5 AL600LI5 785901060932
49.97 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Connector Accessory, LI, LE, LX, LXI molded case circuit breakers, 300–600A, mechanical lug kit, aluminum or copper-1
  • Material: Aluminum
  • Warranty Length: 18 mth
Square D LI molded case circuit breakers provide basic thermal magnetic protection. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. This connector accessory is designed to be used with LI molded circuit breakers with basic thermal magnetic protection. Terminal wire range for this accessory is (2) 4/0 AWG - 500kcmil aluminium or copper. This accessory has 1 lug per kit.
QTY
  • Product Description
  • Features
  • Specifications
Square D LI molded case circuit breakers provide basic thermal magnetic protection. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. This connector accessory is designed to be used with LI molded circuit breakers with basic thermal magnetic protection. Terminal wire range for this accessory is (2) 4/0 AWG - 500kcmil aluminium or copper. This accessory has 1 lug per kit.
  • Features

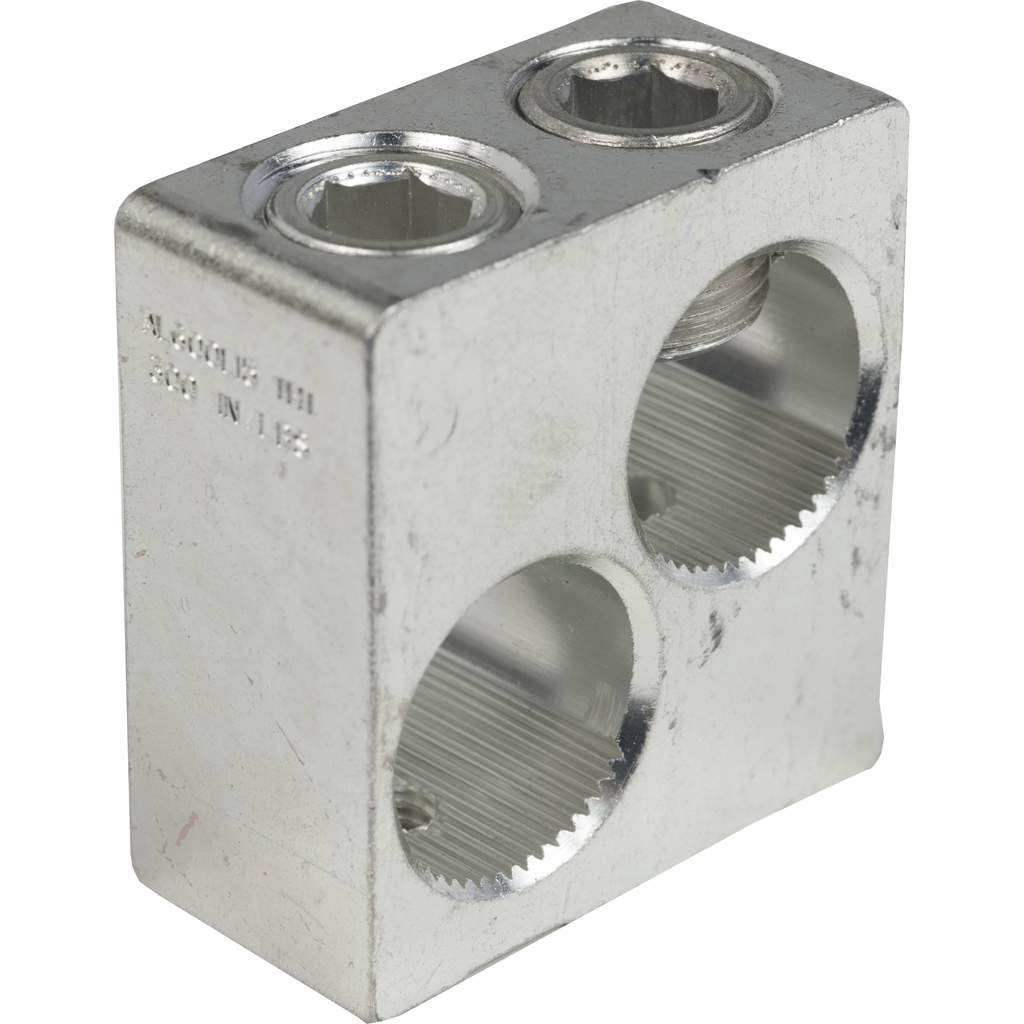

    • Mechanical lug kit
    • Includes one lug per accessory kit
    • Compatible with LE/LX circuit breakers
    • Accepts two 4/0 AWG to 500kcmil aluminum or copper conductor per lug
    • Lugs are made of tin-plated aluminum which allows both aluminum and copper conductors
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Physical Attributes
    • Kcmil Size : 500 kcmil
  • Conformance Attributes
    • Product Certifications : UL, CSA
  • Complementary Attributes
    • Line Rated Current : 300-600 A
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : AWG 12...AWG 4 aluminium, AWG 4/0...500 kcmil aluminium/copper
    • Circuit Breaker Type : FH, LE/LX
    • Location Of Connection : downstream, upstream
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : Out
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1407012EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Material : aluminium
    • Package Weight Lbs : 127.006 g
    • Poles Description : 2P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : mechanical lug
    • Quantity Per Set : set of 1
    • Returnability : Yes
    • Sustainable Packaging : No
    • Accessory Separate Part Category2 : connection accessory
    • Medium Desc : Connector Accessory, LI, LE, LX, LXI molded case circuit breakers, 300–600A, mechanical lug kit, aluminum or copper
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1407012EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1407012EN
    • Environmental Disclosure : ENVPEP1407012EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1407012EN
  • General Attributes
    • Product Or Component Type : mechanical lug
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
