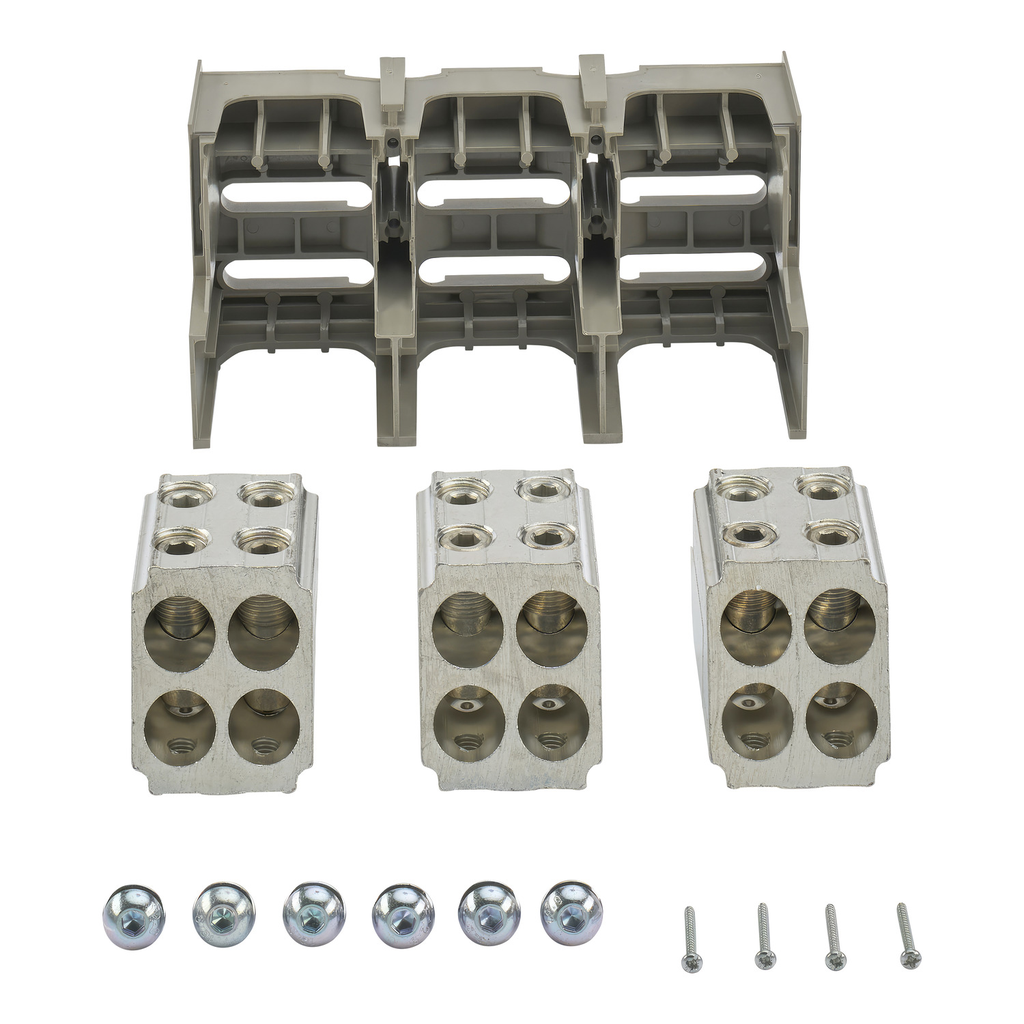

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT P circuit breakers. These alumin

• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Location Of Connection
• upstream
• downstream
• Mounting Location
• downstream
• upstream
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Tightening Torque
• 50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
• AWG Gauge
• AWG 3/0...500 kcmil aluminium/copper
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Certifications
• CSA
• UL

• Physical Attributes
• Kcmil Size : 500 kcmil
• Complementary Attributes
• Line Rated Current : 1200-1200 A
• Important Information Attributes
• B2B Bullet Point 1 : Mechanical lug terminal kit for aluminum wire connection
• B2B Bullet Point 2 : Includes three lugs, and required hardware per accessory kit
• B2B Bullet Point 3 : Compatible with PowerPacT P circuit breakers
• B2B Bullet Point 4 : Complies with UL and CSA standards
• B2B Bullet Point 5 : Complies with UL 489 listed, CSA, and IEC standards
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-09
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1905
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Fixing Mode : by screws
• Halogen Free Status : Halogen free product
• Material : aluminium
• Mounting Mode : unit mount
• Package Weight Lbs : 1.891 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : mechanical lug
• Quantity Per Set : set of 3
• Range Of Product : PowerPact P
• Returnability : Yes
• Sustainable Packaging : No
• Accessory Separate Part Category : connection accessory
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : mechanical lug
• Range Of Product : PowerPact P
• Environment Attributes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=55943143&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
