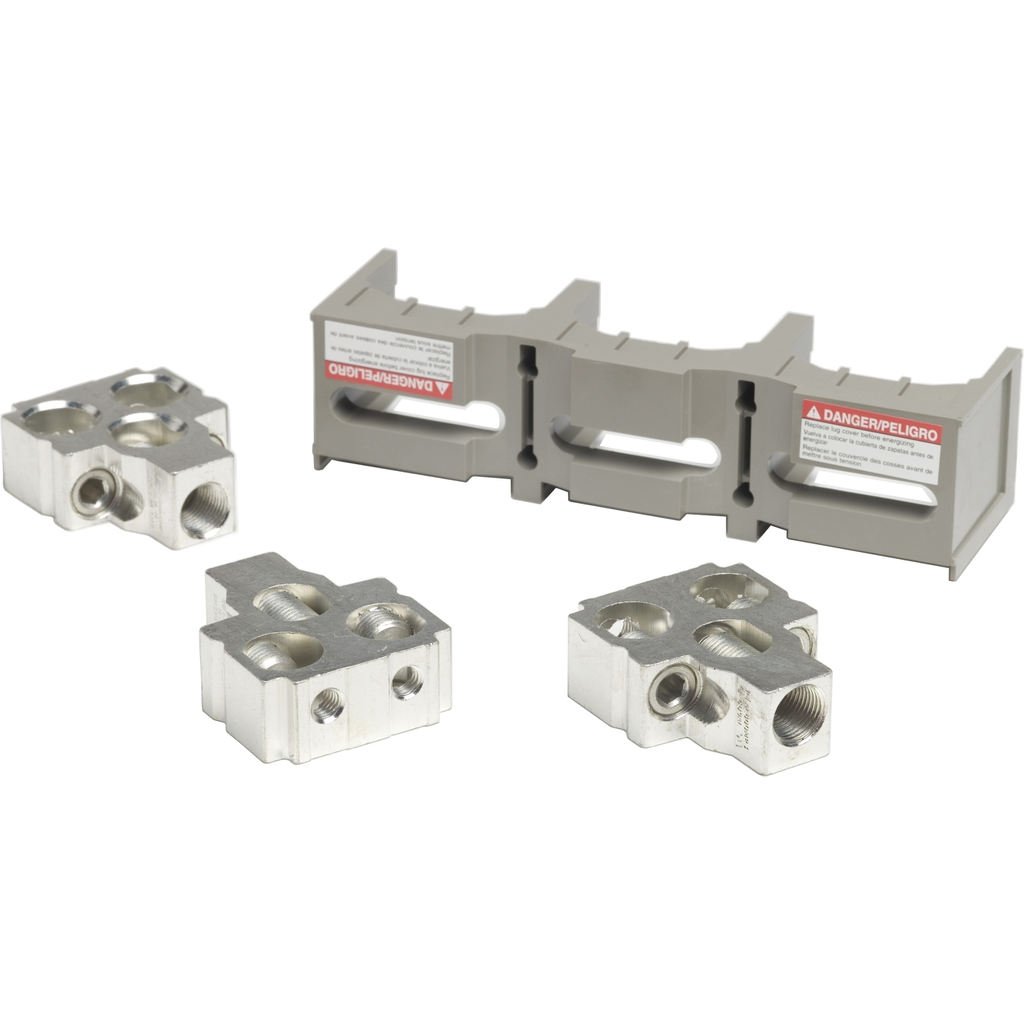

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT P circuit breakers. The lugs are

• Range Of Product
• PowerPact M
• PowerPact P
• Mounting Mode
• unit mount
• I-Line
• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Location Of Connection
• downstream
• upstream
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Tightening Torque
• 50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
• AWG Gauge
• AWG 3/0...500 kcmil aluminium/copper
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Certifications
• UL
• CSA

• Physical Attributes
• Kcmil Size : 500 kcmil
• Complementary Attributes
• Line Rated Current : 800-800 A
• Important Information Attributes
• B2B Bullet Point 1 : PowerPacT P aluminum mechanical lugs kit 800A, 3 pieces per kit
• B2B Bullet Point 2 : Lugs are made of tin-plated aluminum which allows to use them with aluminum and Copper conductors
• B2B Bullet Point 3 : Mechanical lugs are for use with unit mount PowerPact P breakers for line, load sides or for load side of I-line breaker
• B2B Bullet Point 4 : Terminal data for this lugs is (3) 3/0 AWG–500 kcmil (95–250 mm2) aluminum or copper
• B2B Bullet Point 5 : All lugs are UL Listed and CSA certified for their proper application
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-09
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1905
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Material : aluminium
• Package Weight Lbs : 818.597 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : mechanical lug
• Quantity Per Set : 3
• Returnability : Yes
• Sustainable Packaging : No
• Accessory Separate Part Category : connection accessory
• Relationshiptype : Compatible relationship
• Boxes : MGF36800
• General Attributes
• Product Or Component Type : mechanical lug
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=55987873&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
