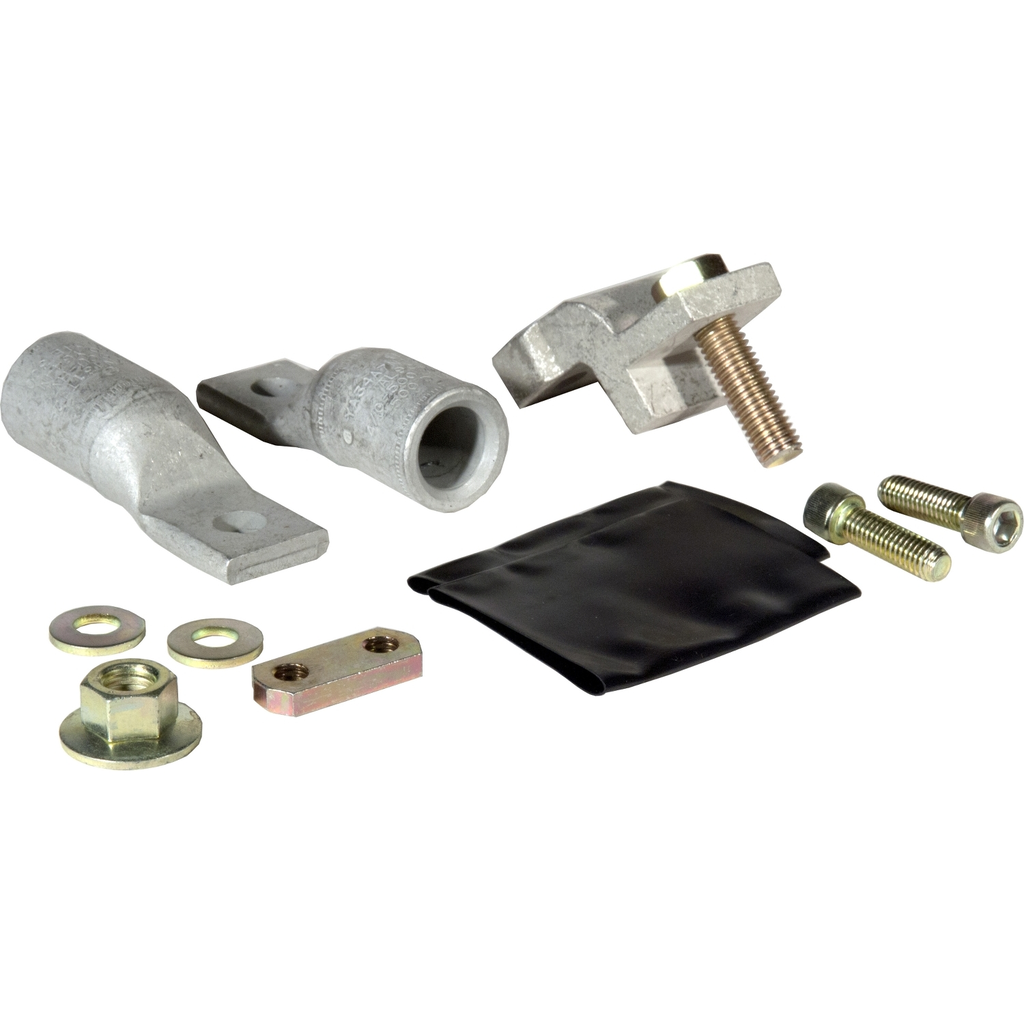

Circuit breaker accessory, PowerPacT M/P, lug kit, compression, 600A, 4/0 AWG to 500kcmil, Al

PowerPact M/P-FRAME MOULDED CA

SQDYA600P5 YA600P5 SQDYA600P5
496.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker accessory, PowerPacT M/P, lug kit, compression, 600A, 4/0 AWG to 500kcmil, Al-1
  • Material: Aluminum
  • Warranty Length: 18 mth
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This lug kit is for PowerPacT M and P circuit breakers. It is for unit mount and I-Line breaker types. These aluminum compression lugs are rated for 600A. The lugs accept 4/0 AWG to 500kcmil conductors. These lugs comply with UL and CSA standards.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This lug kit is for PowerPacT M and P circuit breakers. It is for unit mount and I-Line breaker types. These aluminum compression lugs are rated for 600A. The lugs accept 4/0 AWG to 500kcmil conductors. These lugs comply with UL and CSA standards.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : CSA, UL
  • Complementary Attributes
    • Line Rated Current : 600-600 A
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Mounting Mode : compression, unit mount
    • Range Of Product : PowerPact M, PowerPact P
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • AWG Gauge : AWG 4/0...500 kcmil aluminium/copper
    • Energy Efficiency Optimized : False
    • Material : aluminium
    • Package Weight Lbs : 907.185 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : mechanical lug
    • Quantity Per Set : set of 2
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 28-28 N.m 95-240 mm² (AWG 4/0...500 kcmil)
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Accessory Separate Part Category2 : connection accessory
    • Medium Desc : Circuit breaker accessory, PowerPacT M/P, lug kit, compression, 600A, 4/0 AWG to 500kcmil, Al
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Range Of Product : PowerPact M, PowerPact P
    • Product Or Component Type : mechanical lug
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
