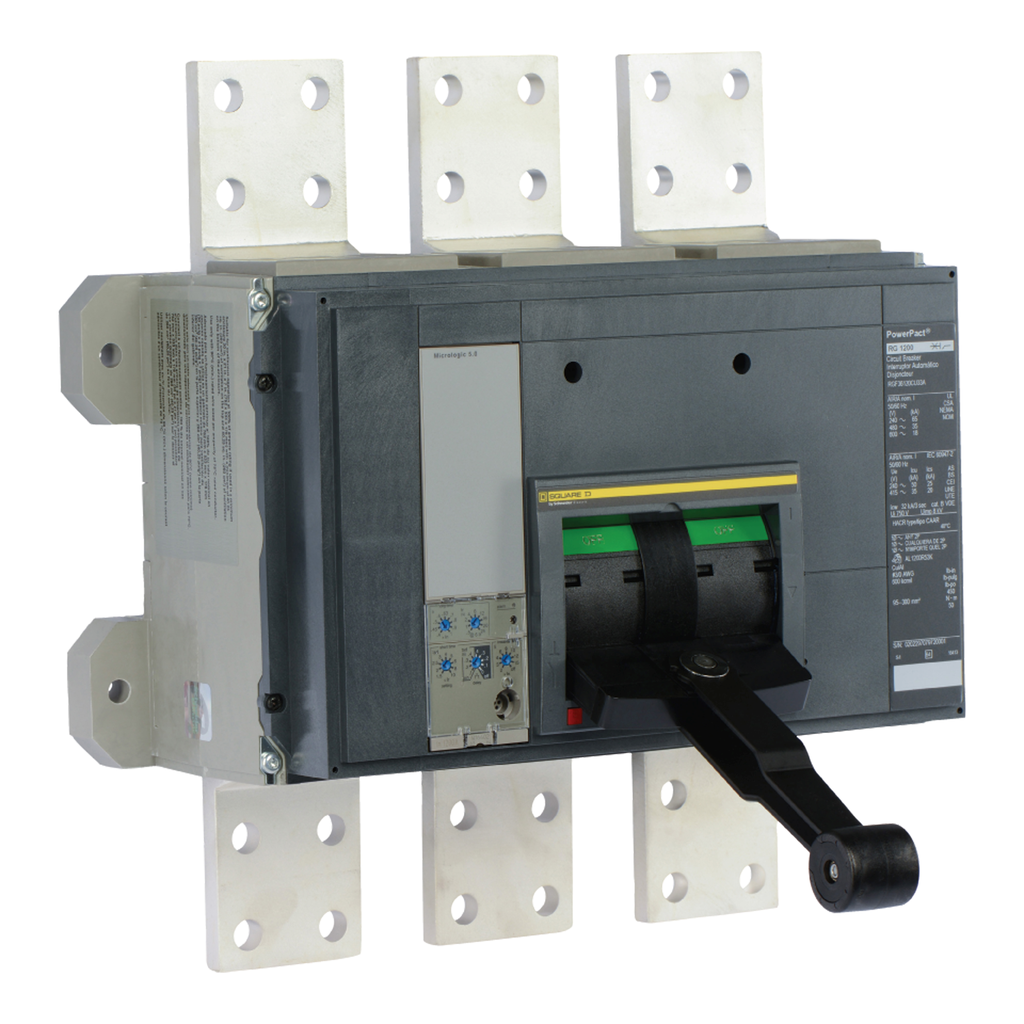

Circuit breaker, PowerPacT R, 1000A, 3 pole, 600VAC, 25kA, busbar, Micrologic 3.0, 100%

MOLDED CASE CIRCUIT BREAKER 60

SQDRJF36100CU31A RJF36100CU31A 785901683810
28758.13 / EACH
http://schema.org/OutOfStock
Mayer-Circuit breaker, PowerPacT R, 1000A, 3 pole, 600VAC, 25kA, busbar, Micrologic 3.0, 100%-1
  • Certifications: CSA, NOM, UL
  • Depth: 14.49 in
  • Height: 16.24 in
  • Line Rated Current: 1000-1000 A
  • Mounting Type: Unit Mount Busbar)
  • Net Weight: 52 lb
  • Standard: CSA, IEC 60947-2, NEMA, NMX J-266, UL
  • Storage Temperature: -50-85 °C
  • Strip Length: 35 mm
  • Warranty Length: 18 mth
  • Width: 16.53 in
PowerPact™ R-frame electronic trip molded case circuit breakers are designed to protect electrical systems from damage caused by overloads, short circuits, and ground faults. All circuit breakers are designed to open and close a circuit by nonautomatic means and to open the circuit automatically on a predetermined overcurrent. Electronic trip molded case circuit breakers use an electronic trip system to signal the circuit breaker to open automatically. The PowerPact R-frame (3000A frame size) circuit breakers are dual rated to UL489 and IEC 60947-2. P-frame, R-frame molded case circuit breakers are available with either a basic ET 1.0I electronic trip system or with a more advanced Micrologic™ trip system. Electronic trip motor circuit protectors (trip system ET 1.0M), which trip on short circuit only, and automatic molded case switches, which trip at a predetermined self-protection level only, are also available for special applications. This PowerPact R, circuit breaker has a rated currrent of 1000A and a rated operational current of 600VAC with a breaking capacity of 25 kA@600VAC. This 3-pole breaker is a unit mount and has a continuous current rating of 100 %. This breaker has an electronic trip unit technology and a Micrologic 3.0 trip unit. This product complys to UL listed, CSA & IEC standards. Dimensions forThis product are 16.24 in (H), 16.53 in (W), 14.49 in (D). This product comes with an 18 month warranty.
QTY
  • Product Description
  • Specifications
PowerPact™ R-frame electronic trip molded case circuit breakers are designed to protect electrical systems from damage caused by overloads, short circuits, and ground faults. All circuit breakers are designed to open and close a circuit by nonautomatic means and to open the circuit automatically on a predetermined overcurrent. Electronic trip molded case circuit breakers use an electronic trip system to signal the circuit breaker to open automatically. The PowerPact R-frame (3000A frame size) circuit breakers are dual rated to UL489 and IEC 60947-2. P-frame, R-frame molded case circuit breakers are available with either a basic ET 1.0I electronic trip system or with a more advanced Micrologic™ trip system. Electronic trip motor circuit protectors (trip system ET 1.0M), which trip on short circuit only, and automatic molded case switches, which trip at a predetermined self-protection level only, are also available for special applications. This PowerPact R, circuit breaker has a rated currrent of 1000A and a rated operational current of 600VAC with a breaking capacity of 25 kA@600VAC. This 3-pole breaker is a unit mount and has a continuous current rating of 100 %. This breaker has an electronic trip unit technology and a Micrologic 3.0 trip unit. This product complys to UL listed, CSA & IEC standards. Dimensions forThis product are 16.24 in (H), 16.53 in (W), 14.49 in (D). This product comes with an 18 month warranty.
  • Specifications
    • Product Or Component Type : circuit breaker
    • Product Name : PowerPact R
    • Range : PowerPact
    • Device Application : distribution
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Mounting Mode : unit mount busbar)
    • Network Frequency : 50/60 Hz
    • Terminal Identifier : AL2500RK
    • [Ics] Rated Service Breaking Capacity : 35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
    • Trip Unit Technology : electronic, standard, Micrologic 3.0, LI
    • Trip Unit Name : Micrologic 3.0
    • Height : 16.24 in
    • [Ue] Rated Operational Voltage : 600 V AC 50/60 Hz UL 489
    • Tightening Torque : 62-62 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 62-62 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
    • Mounting Support : busbar
    • Breaking Capacity Code : J
    • Local Signalling : alarm 1 LED yellow)long-time pick up)
    • Number Of Slots : 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
    • Electrical Connection : busbar connection line || busbar connection load
    • Net Weight : 52 lb(US)
    • [Uimp] Rated Impulse Withstand Voltage : 8 kV IEC 60947-2
    • Control Type : operating handle
    • Wire Stripping Length : 35 mm
    • Utilisation Category : category A
    • Line Rated Current : 1000-1000 A
    • Continuous Current Rating : 100 %
    • Breaking Capacity : AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
    • [Ui] Rated Insulation Voltage : 750 V IEC 60947-2
    • Suitability For Isolation : yes IEC 60947-2
    • Poles Description : 3P
    • Quantity Per Set : 1
    • Awg Gauge : AWG 3/0...750 kcmil aluminium/copper
    • Width : 16.53 in
    • Depth : 14.49 in
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407013EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI1407013EN
    • Eu Rohs Directive : Compliant
    • Halogen Content Performance : Halogen free plastic parts product
  • Environment
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : UL || CSA || NEMA || NMX J-266 || IEC 60947-2
    • Product Certifications : UL || CSA || NOM
    • Ip Degree Of Protection : IP40
    • Pollution Degree : 3 IEC 60947-1
    • Ambient Air Temperature For Storage : -50-85 °C
    • Quality Labels : CE
    • Operating Altitude : < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
