Circuit breaker accessory, PowerPacT J, earth leakage module, 150 to 250A

CIRCUIT BREAKER EARTH LEAKAGE

SQDELM250JD ELM250JD 785901684749
4887.15 / EACH
http://schema.org/OutOfStock

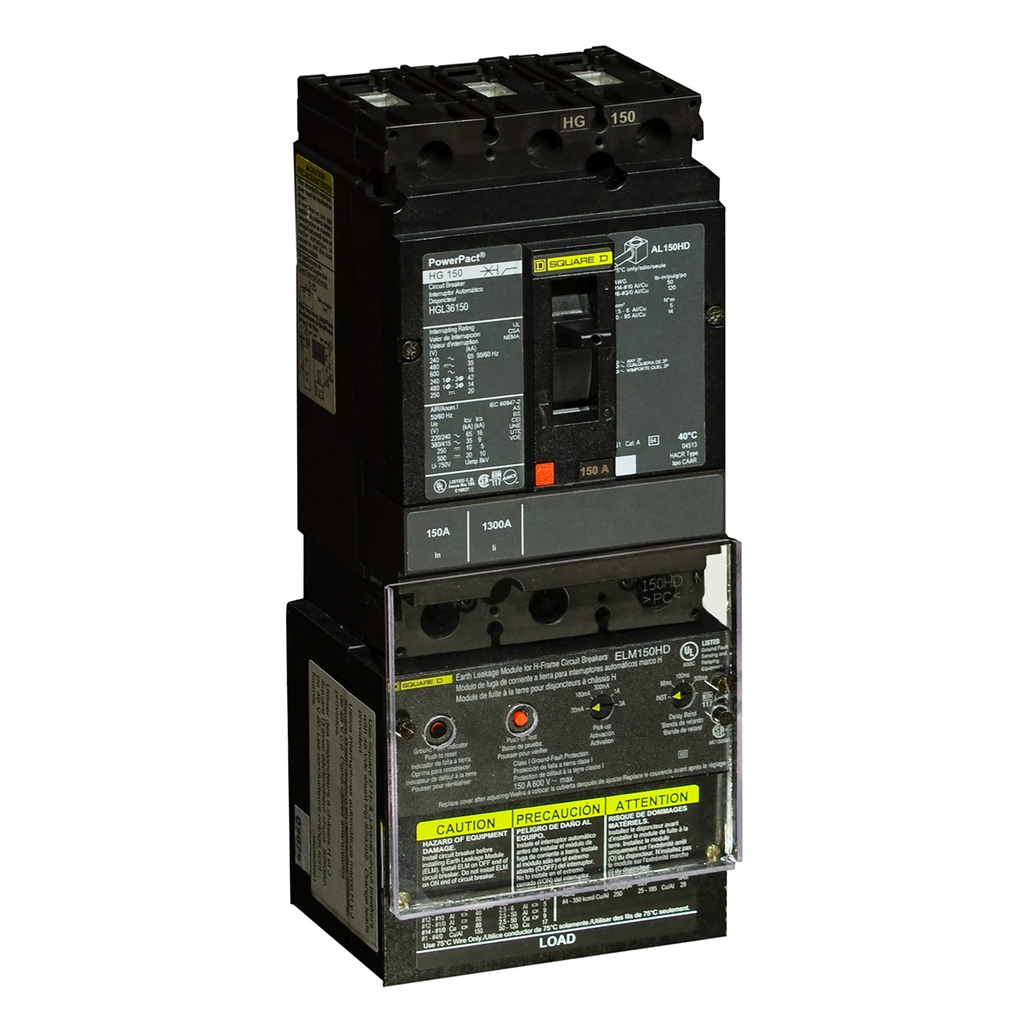

The Earth Leakage Module (ELM) is an add on module which provides low level ground fault sensing and relay functions. The add on ELM module features adjustable ground fault pickup levels as low as 30mA and adjustable ground fault delays from instantaneous to 500ms. It has an integral ground fault push-to-test feature. All ELMs are supplied for I-Line mounting and are convertible to unit mount by removing the I-Line mounting feet. A 48VDC shunt trip is required in the circuit breaker, either field or factory installed. This module has a rated operational voltage of 240 to 600VAC and current of 150 to 250A. The module complies with UL and CSA standards. The product comes as UL 1053 – Ground-fault Sensing and Relaying Equipment.
QTY
  • Product Description
  • Features
  • Specifications
The Earth Leakage Module (ELM) is an add on module which provides low level ground fault sensing and relay functions. The add on ELM module features adjustable ground fault pickup levels as low as 30mA and adjustable ground fault delays from instantaneous to 500ms. It has an integral ground fault push-to-test feature. All ELMs are supplied for I-Line mounting and are convertible to unit mount by removing the I-Line mounting feet. A 48VDC shunt trip is required in the circuit breaker, either field or factory installed. This module has a rated operational voltage of 240 to 600VAC and current of 150 to 250A. The module complies with UL and CSA standards. The product comes as UL 1053 – Ground-fault Sensing and Relaying Equipment.
  • Features
    • The Earth leakage module is an add-on module for PowerPact J circuit breake, rated as 150 to 250A
    • ELMs are highly sensitive (30 mA to 3 A) and they provide much greater protection than GFMs (20 to 200 A sensitivity).
    • ELM fits in LA enclosure, I-line switch board and used with JD, JG, JJ, JL
    • At 250 A the ELM250JD can be used with 80% rated circuit breakers only
    • Dual interlock prevents cover from being opened (switch is ON)/prevents the switch from being turned ON (cover is open)
    • Horsepower rated for motor applications as 60 hp
    • Quick-make, quick-break operating mechanism.
    • Suitable for use as service entrance equipment
    • Red and black handle indicates the ON (red) or OFF (black) condition of the switch
    • UL listed, Seismically Qualified to the 2010 ASCE 7, 2012 IBC, 2013 CBC.
  • Complementary Attributes
    • Line Rated Current : 150-250 A
    • Ue Rated Operational Voltage : 240...600 V
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Circuit Breaker Type : JL, JJ, JD, JG
    • Certificate Agency : UL, CSA
    • Earth Leakage Sensitivity : 30 mA, 3000 mA, 1000 mA, 300 mA, 100 mA
    • Earth Leakage Protection Time Delay : instantaneous, 500 ms
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-09-04
    • Return Indicator : Y
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Weee Scope : In
    • Weee Product Category : 4
    • Scope Perimeter : At least in Europe
    • Rohs Eur In Scope : Yes
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Electrical Connection To Mcb : plug in
    • Energy Efficiency Optimized : False
    • Local Signalling : trip indicator
    • Network Type : AC
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : earth leakage add-on block
    • Range Of Product : PowerPact
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 25.8-25.8 N.m 25-185 mm² (4 AWG...350 kcmil)
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8536200020
    • Warranty In Months : 18
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Eu Rohs Directive : Not compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
  • General Attributes
    • Product Or Component Type : earth leakage add-on block
    • Range Of Product : PowerPact
  • Specifications
    • Country of Origin : Mexico, United States
