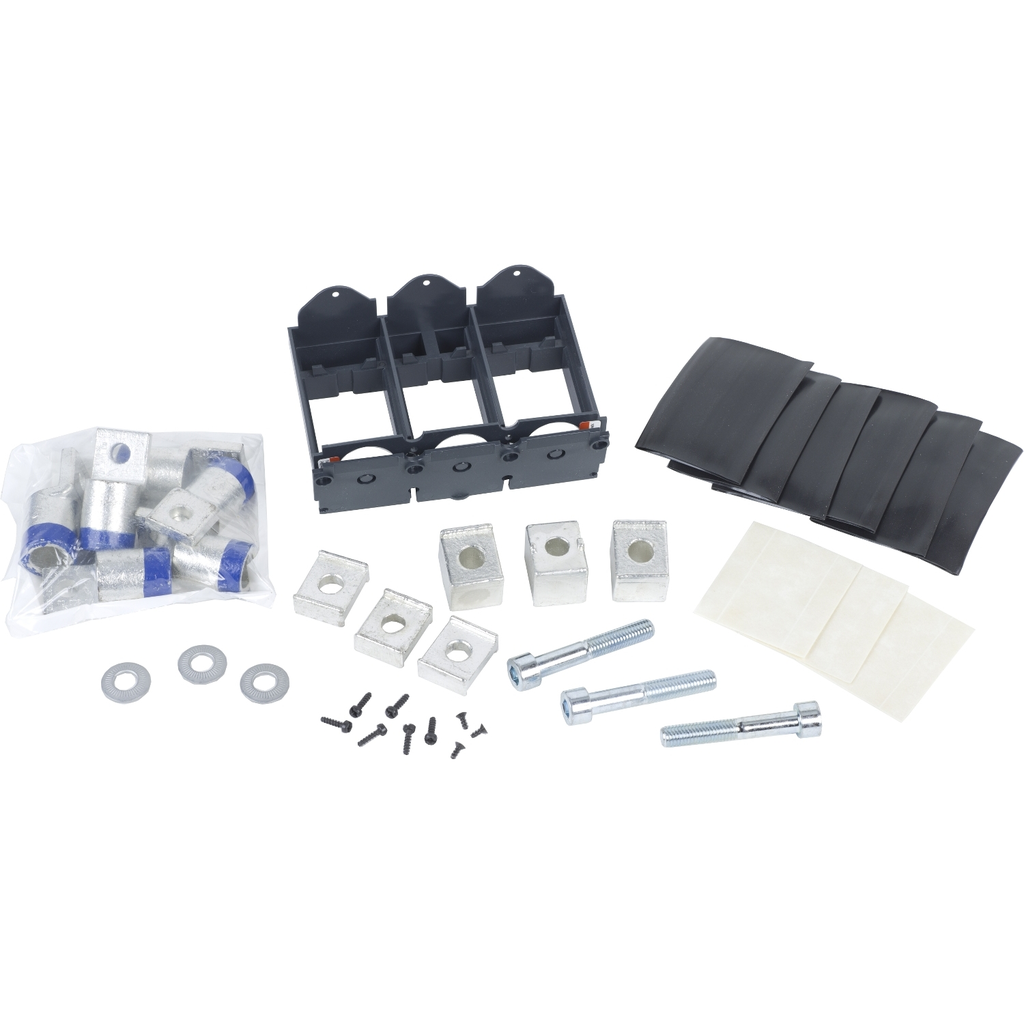

This lug kit is for PowerPacT L circuit breakers. This PowerPacT L, compression lug is a connection accessory with a rated current of 600A and is made of copper. The lugs accept 2/0 AWG to 300kcmil copper conductors. The lugs comply with UL and CSA standards. This product complies with UL and CSA standards.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 600-600 A
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Awg Gauge : AWG 2/0...300 kcmil copper
• Location Of Connection : downstream, upstream
• Mounting Mode : unit mount, I-Line
• Tightening Torque : 50-50 N.m 70-150 mm² (AWG 2/0...300 kcmil)
• Carbon Footprint Of The Distribution Phase A4 : 1.966271580566898, 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 10 kg CO2 eq., 10.302971150240523
• Carbon Footprint Of The Installation Phase A5 : 1.8967904693791804, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 44 kg CO2 eq., 43.82880551360121
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 1 102 kg CO2 eq., 1102.0746377830335
• Certificate Agency : CSA, UL
• Local Data Status : Publishable
• Local Publishable Date : 2026-04-10
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1906
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Material : copper
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : compression lug
• Quantity Per Set : set of 6
• Range Of Product : PowerPact L
• Returnability : Yes
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 160 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Accessory Separate Part Category : connection accessory
• Warranty In Months : 18
• Pep Code : ENVPEP2206029EN
• Database Version : 2024-01
• Pep Verification Date : 2025-06-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 58
• Offer Owner Code : 190788
• Pn : 1
• Environment Attributes Main
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1160.0694764968212
• Environmental Disclosure : ENVPEP2206029EN
• Eu Rohs Directive : Compliant By Exemption
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2206029EN
• Pep Verification Date : 2025-06-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : compression lug
• Range Of Product : PowerPact L
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
