Circuit breaker, PowerPacT R, 1000A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 5.0, 100%

Circuit breaker, PowerPact R,

SQDRGA36100CU33A RGA36100CU33A SQDRGA36100CU33A
21925.48 / EA
http://schema.org/OutOfStock

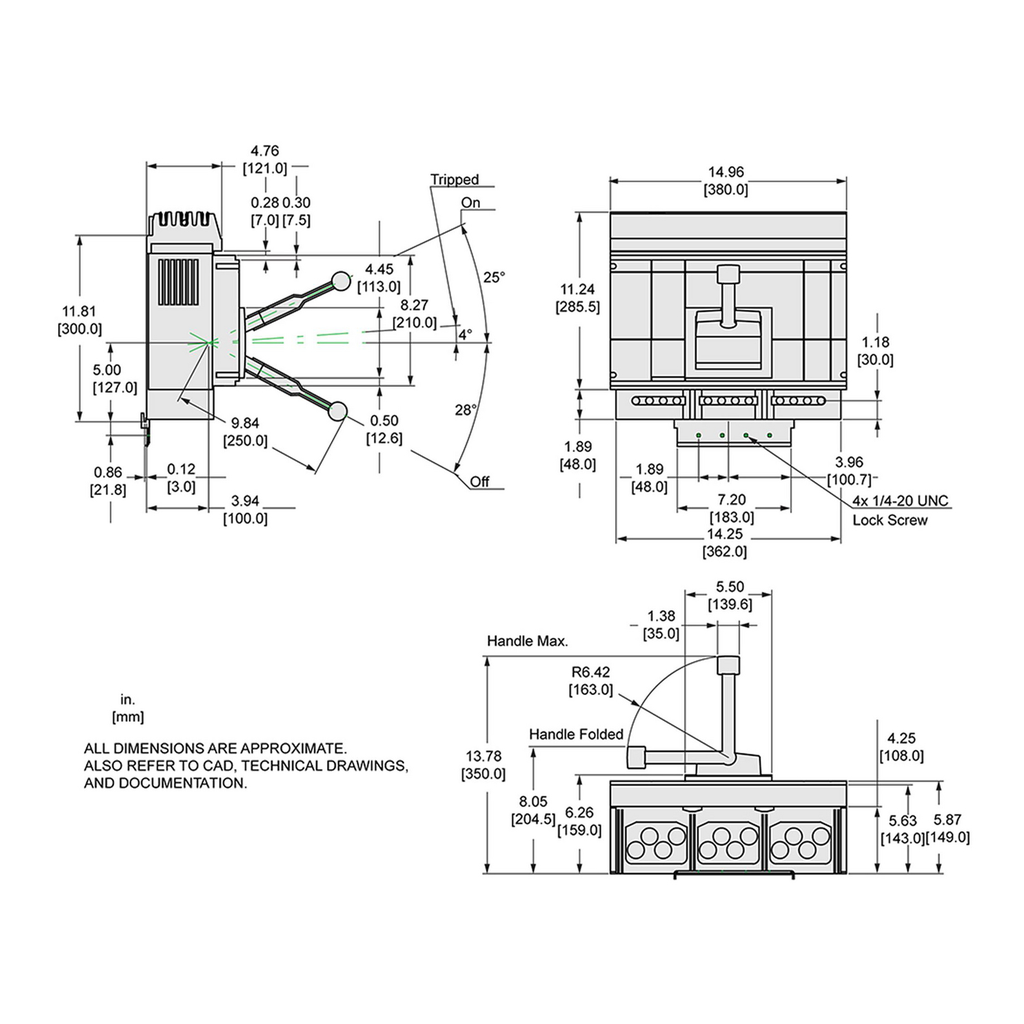

Mayer-DDS-Circuit breaker, PowerPacT R, 1000A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 5.0, 100%-1
  • Depth: 13.78 in
  • Warranty Length: 18 mth
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Features
    • Available in 2, 3, 4 pole design
    • Protection from overloads and short circuits
    • Common accessories across the range
    • Compatible with PowerLogic systems and high amp power circuit breakers
    • UL 489 Listed, CSA NMX, IEC certified
  • Physical Attributes
    • Wire Stripping Length : 30 mm
  • Conformance Attributes
    • Product Certifications : UL, CSA, NOM
    • Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
  • Complementary Attributes
    • Line Rated Current : 1000-1000 A
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : 4 x AWG 3/0…600 kcmil aluminium/copper, 4 x AWG 3/0...500 kcmil copper
    • Electrical Connection : I-Line connection, line, lugs, load
    • Number Of Slots : 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 voltage release MN or MX plug-in)
    • Ics Rated Service Breaking Capacity2 : 25 kA 240 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
    • Carbon Footprint Of The Distribution Phase A4 : 6.816350348446713, 7 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 30 kg CO2 eq., 30.11788749454062
    • Carbon Footprint Of The Installation Phase A5 : 4.6964474609449836, 5 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 108 kg CO2 eq., 108.197243170995
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 1 203 kg CO2 eq., 1203.3763657225286
    • Ics Rated Service Breaking Capacity5 : 25 kA 240 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2206034_V2
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Circuit Breaker Application : HACR rated
    • Continuous Current Rating : 100 %
    • Control Type : operating handle
    • Device Application : distribution
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Local Signalling : alarm 1 LED yellow)long-time pick up)
    • Mounting Mode : I-Line bracket)
    • Mounting Support : bracket
    • Network Frequency : 50/60 Hz
    • Package Weight Lbs : 23.587 kg
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : circuit breaker
    • Quality Labels : CE
    • Range : PowerPact
    • Returnability : Yes
    • Suitability For Isolation : yes IEC 60947-2
    • Sustainable Packaging : No
    • Terminal Identifier : AL1200R53K
    • Tightening Torque : 28-28 N.m 95-240 mm² (4 x AWG 3/0…600 kcmil)
    • Total Lifecycle Carbon Footprint : 1 353 kg CO2 eq.
    • Trip Unit Name : MicroLogic 5.0
    • Trip Unit Technology : electronic, standard, MicroLogic 5.0, LSI
    • Utilisation Category : category A
    • Ue Rated Operational Voltage2 : 600 V AC 50/60 Hz UL 489
    • Ui Rated Insulation Voltage2 : 750 V IEC 60947-2
    • Uimp Rated Impulse Withstand Voltage2 : 8 kV IEC 60947-2
    • Medium Desc : Circuit breaker, PowerPacT R, 1000A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 5.0, 100%
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2206034EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-07-03
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model Installation A5 2 : [A5]
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model End Of Life C1 C4 2 : [C1 - C4]
    • Global Commercial Status : Commercialised
    • Product Name : PowerPact R
    • Ue Rated Operational Voltage5 : 600 V AC 50/60 Hz UL 489
    • Ui Rated Insulation Voltage5 : 750 V IEC 60947-2
    • Uimp Rated Impulse Withstand Voltage5 : 8 kV IEC 60947-2
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Compliant , Compliant
    • Operating Altitude : < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 13123.36 ft (4000 m) with derating
    • ROHS Exemption Information : Yes
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 1353.2042941974557
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -50-85 °C
    • Circularity Profile : ENVEOLI2206034_V2
    • Environmental Disclosure : ENVPEP2206034EN
    • Halogen Content Performance : Halogen free plastic parts product
    • IP Degree Of Protection : IP40
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2206034EN
    • Pep Verification Date : 2025-07-03
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : circuit breaker
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 13.78 in
