SQUARE D

Circuit breaker accessory, handle, rotary, long shaft, support bracket included, for FAL, FCL, FHL, GJL circuit breakers

OPERATING MECHANISM LONG SHAFT

SQD9421LS12 9421LS12 785901045762
43.40 / EACH
http://schema.org/OutOfStock

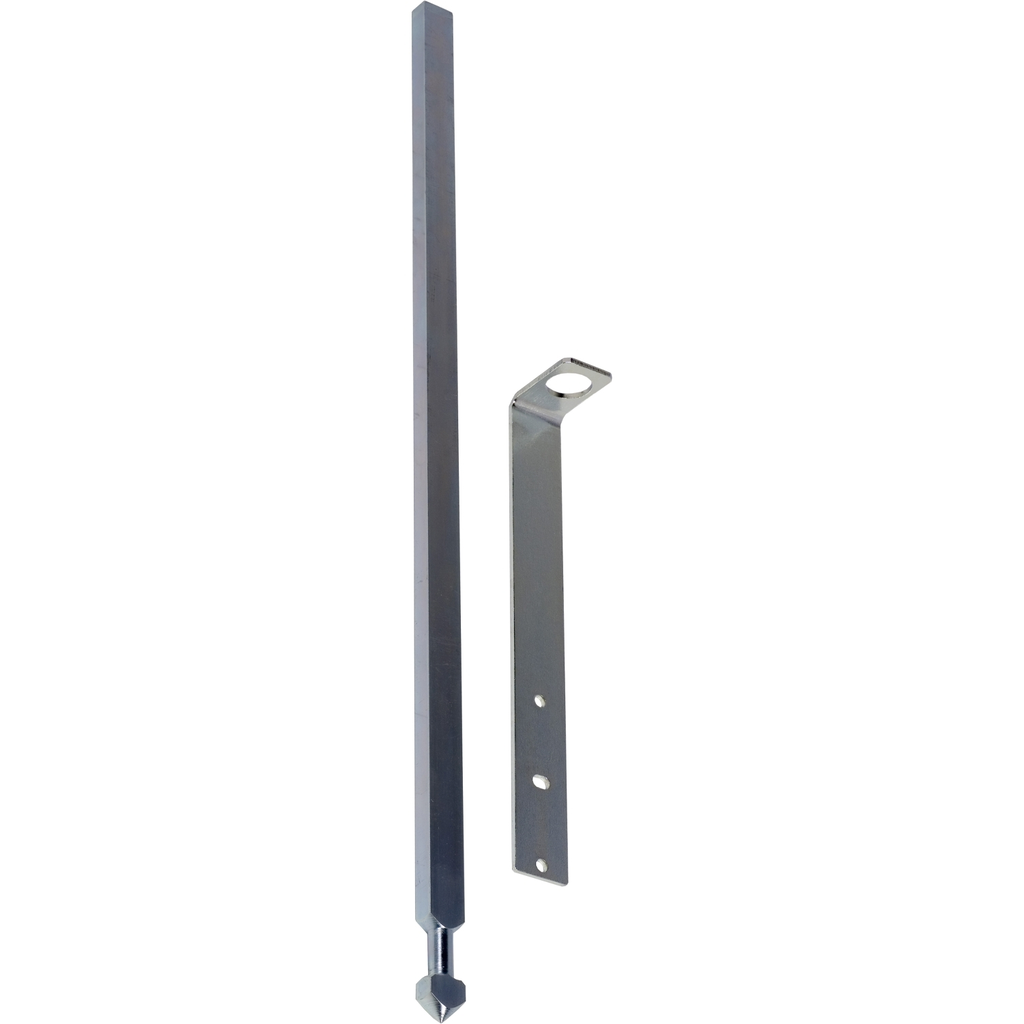

Mayer-DDS-Circuit breaker accessory, handle, rotary, long shaft, support bracket included, for FAL, FCL, FHL, GJL circuit breakers-2
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This long shaft will work with the operating mechanism for the legacy 2 or 3 pole FAL, FCL and FHL circuit breakers. This long shaft will also work with the operating mechanism for the legacy 3 pole GJL circuit breakers. This long shaft is UL Component Recognized and CSA certified
QTY
  • Product Description
  • Features
  • Specifications
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This long shaft will work with the operating mechanism for the legacy 2 or 3 pole FAL, FCL and FHL circuit breakers. This long shaft will also work with the operating mechanism for the legacy 3 pole GJL circuit breakers. This long shaft is UL Component Recognized and CSA certified
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM8
    • PB
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Important Information Attributes
    • B2B Bullet Point 1 : Used with all disconnect switch and circuit breaker installations
    • B2B Bullet Point 2 : Designed for variable depth, flange mounting applications
    • B2B Bullet Point 3 : Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
    • B2B Bullet Point 4 : Two mounting methods offered for flexibility
    • B2B Bullet Point 5 : Disconnect switches were designed for control panel installations
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1848
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Package Weight Lbs : 929.864 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : 9421LF1 or LK1 operating mechanism
    • Product Or Component Type : shaft
    • Range Of Product : 9421L
    • Returnability : Yes
    • Shaft Type : long
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Accessories : 9421LD7
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : shaft
    • Range Of Product : 9421L
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=565463&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
