SQUARE D

Circuit breaker accessory, PowerPacT L, handle kit, rotary, 6 inch, 600A, operating mechanism, short shaft

CIRCUIT BREAKER OP MECH FOR 40

SQD9421LD1 9421LD1 785901947462
291.04 / EACH
http://schema.org/OutOfStock

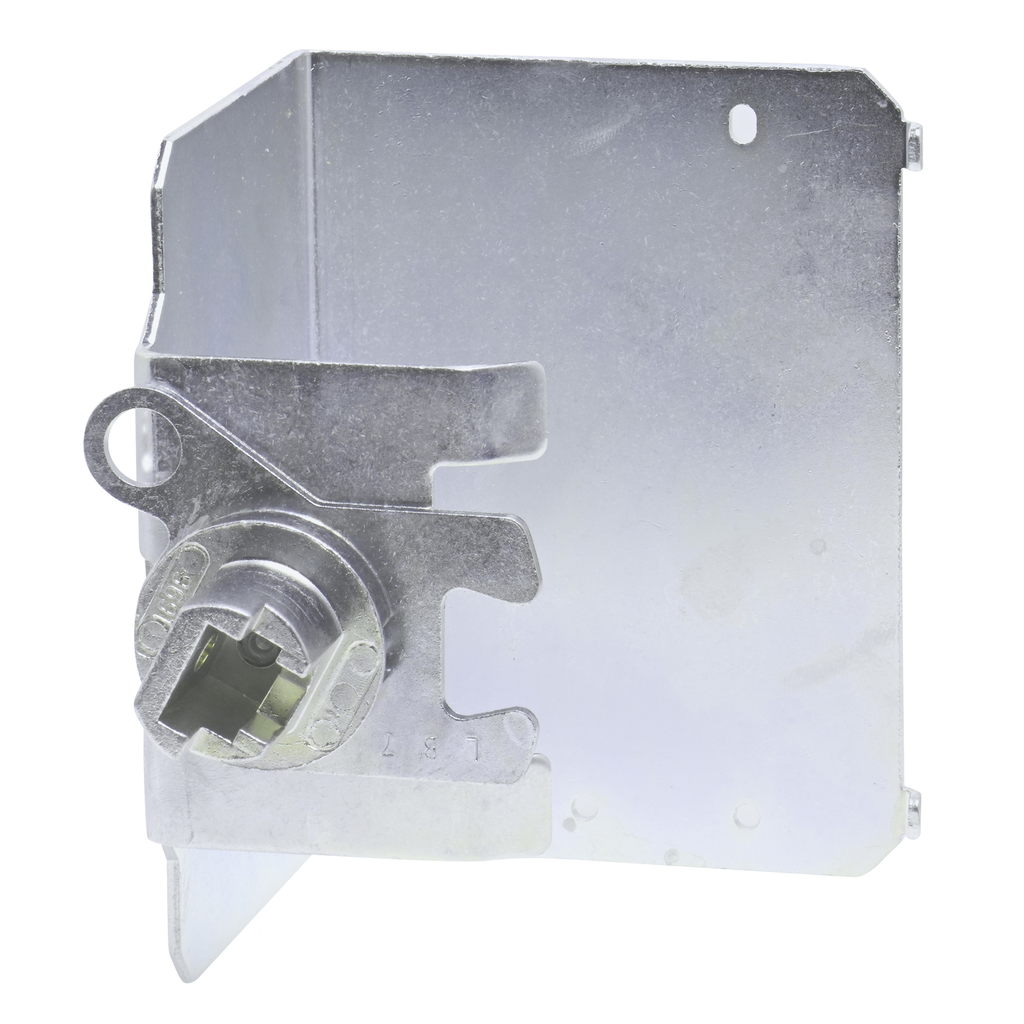

Mayer-DDS-Circuit breaker accessory, PowerPacT L, handle kit, rotary, 6 inch, 600A, operating mechanism, short shaft-3
  • Country of Origin: USA
  • Length: 6 in
  • Warranty Length: 18 mth
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT D and PowerPacT L circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 600A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 7.25 to 12.06 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Mechanism is UL Component Recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT D and PowerPacT L circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 600A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 7.25 to 12.06 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Mechanism is UL Component Recognized and CSA certified.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Environmental
    • Product Compatibility : NEMA 1/3R/12 enclosure
  • Complementary
    • Length : 6 in
    • Shaft Type : standard
  • Specifications
    • Country of Origin : United States
    • Length : 6 in
    • Product Or Component Type : Circuit Breaker Mechanism
    • Product Destination : PowerPact D circuit breaker 600 A || PowerPact L circuit breaker 600 A
