SQUARE D

Circuit breaker accessory, PowerPacT B, handle kit, rotary, 3 inch, 125A, operating mechanism, long shaft

TYPE L CB MECH KIT WITH HANDLE

SQD9421LB3 9421LB3 785901093473
239.32 / EA
http://schema.org/OutOfStock

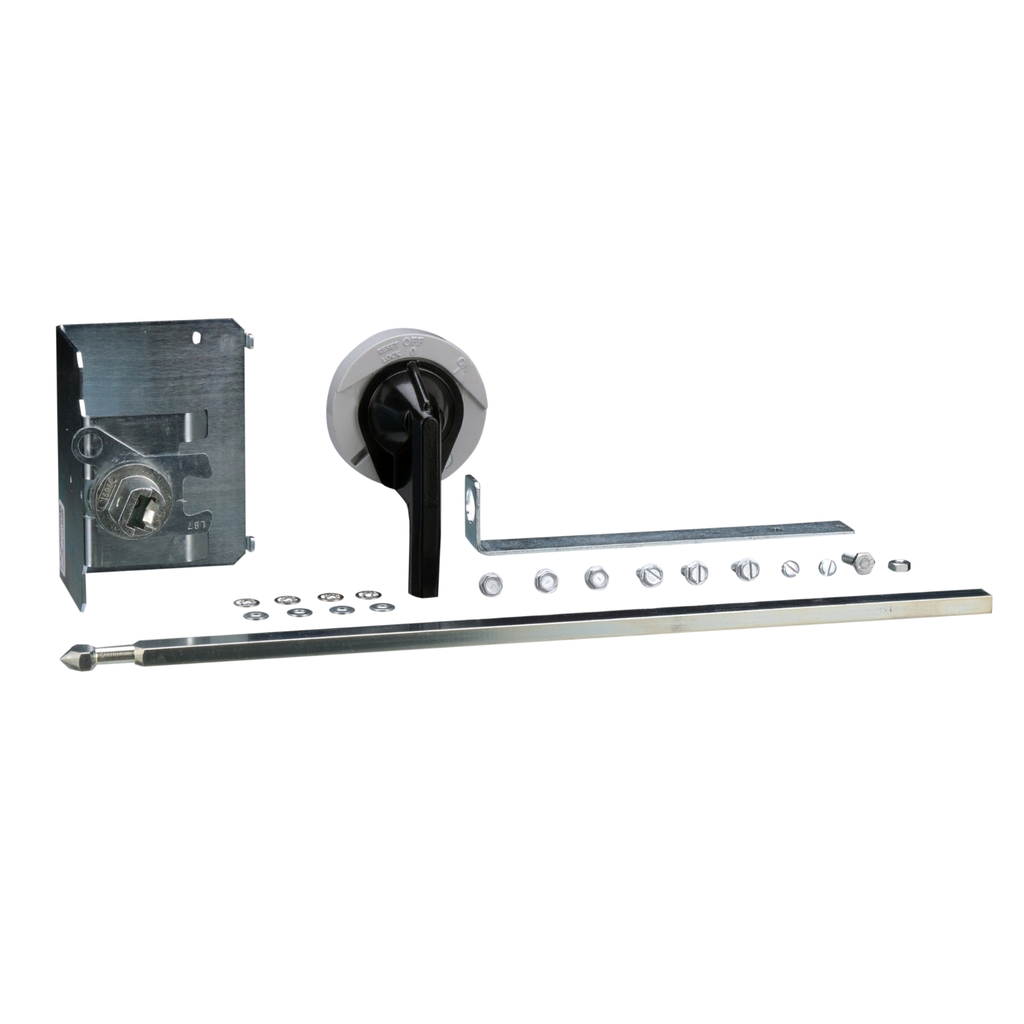

Mayer-DDS-Circuit breaker accessory, PowerPacT B, handle kit, rotary, 3 inch, 125A, operating mechanism, long shaft-2
  • Length: 3 in
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT B circuit breakers. Mechanism is used with 2 or 3 pole breakers with a frame size of 125A. Proper circuit breaker must be ordered separately. Kit contains a 3 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 5.5 to 21.38 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Mechanism is UL Component Recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT B circuit breakers. Mechanism is used with 2 or 3 pole breakers with a frame size of 125A. Proper circuit breaker must be ordered separately. Kit contains a 3 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 5.5 to 21.38 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Mechanism is UL Component Recognized and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Length : 3 in
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • ROHS EUR In Scope : Yes
    • ROHS EUR Full Compliance Status : Under investigation
    • ROHS EUR Full Compliance Status Id : UNDER_INVESTIGATION
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 2 - SELECTED (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Marking : OFF - Trip - ON
    • Mounting Location : on door
    • Package Weight Lbs : 2.81 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Operating Mechanism
    • Range Of Product : 9421L
    • Returnability : Yes
    • Shaft Type : long
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Spare part relationship
    • Product Kit Identifier : N
    • Product Manager : STEVEN NATALE
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • EU ROHS Directive : Under investigation
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
  • General Attributes
    • Product Or Component Type : Operating Mechanism
    • Range Of Product : 9421L
