Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 3/4, painted

OPERATING MECHANISM HANDLE NEM

SQD9421LH43 9421LH43 785901037033
319.07 / EACH
http://schema.org/OutOfStock

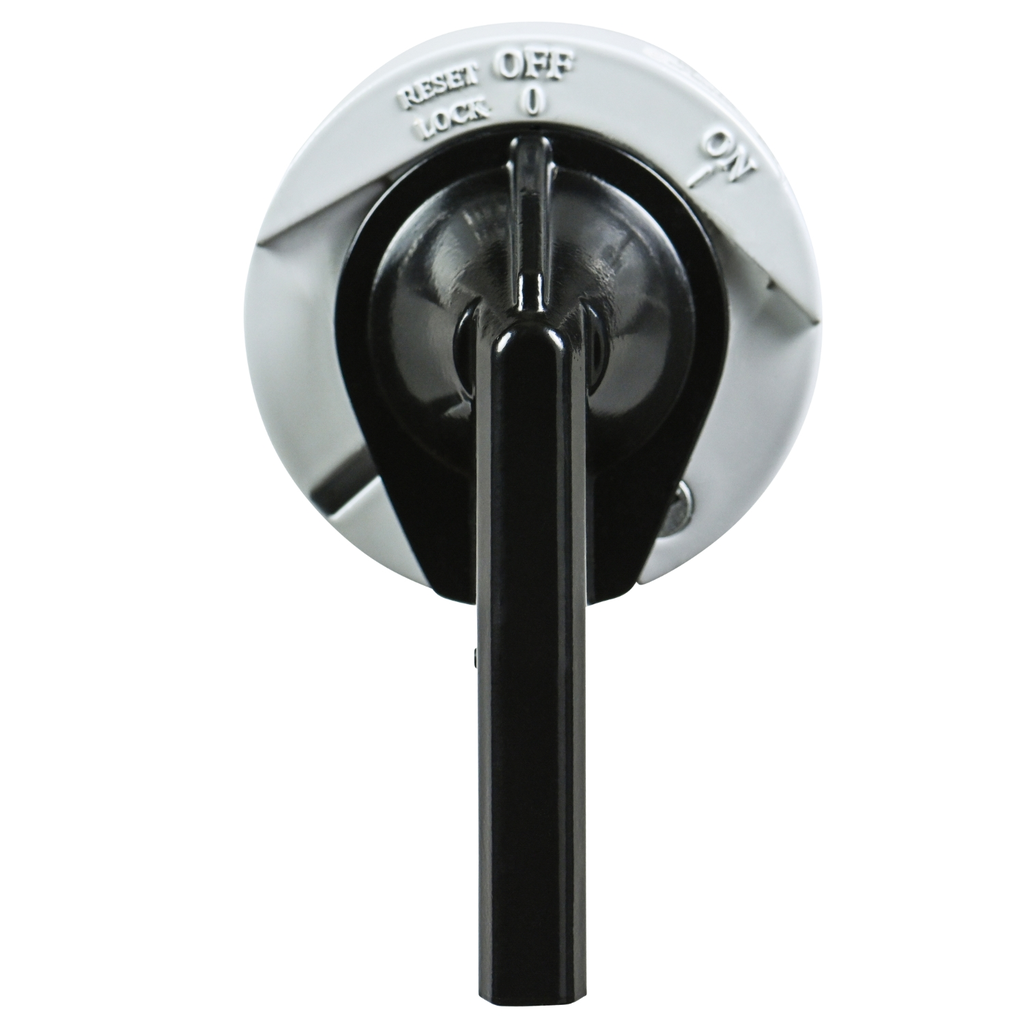

Mayer-DDS-Circuit breaker accessory, PowerPacT B/H/J, handle assembly, rotary, 3 inch, 125A to 250A, NEMA 3/4, painted-2
  • Surface Finish: Painted Black
  • Warranty Length: 18 mth
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly will work with the operating mechanism for a 2 or 3 pole PowerPacT H, and PowerPacT J, Compact NSF circuit breakers with a 125A frame size. This handle assembly will also work with the operating mechanism for a 2 or 3 pole PowerPacT H, and PowerPacT J circuit breakers with a 250A frame size. This handle assembly has a special 3 inch handle. This painted handle assembly is rated for NEMA Type 3 and 4. This handle assembly is UL Component Recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly will work with the operating mechanism for a 2 or 3 pole PowerPacT H, and PowerPacT J, Compact NSF circuit breakers with a 125A frame size. This handle assembly will also work with the operating mechanism for a 2 or 3 pole PowerPacT H, and PowerPacT J circuit breakers with a 250A frame size. This handle assembly has a special 3 inch handle. This painted handle assembly is rated for NEMA Type 3 and 4. This handle assembly is UL Component Recognized and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM8, PB
    • Persona Type Names : End User, Contractor, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Package Weight Lbs : 907.184 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Handle Assembly
    • Range Of Product : 9421L
    • Returnability : Yes
    • Surface Finish : painted Black
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Product Kit Identifier : N
    • Product Manager : STEVEN NATALE
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • General Attributes
    • Product Or Component Type : Handle Assembly
    • Range Of Product : 9421L
