Circuit Breaker Mechanism, rotary handle, 1200A mechanism, 8 inch handle, standard shaft, for MEL/MXL/MAL/MHL breakers

OPERATING MECHANISM 600VAC 800

SQD9421LT1 9421LT1 785901822097
539.91 / EACH
http://schema.org/OutOfStock
  • Country of Origin: Mexico

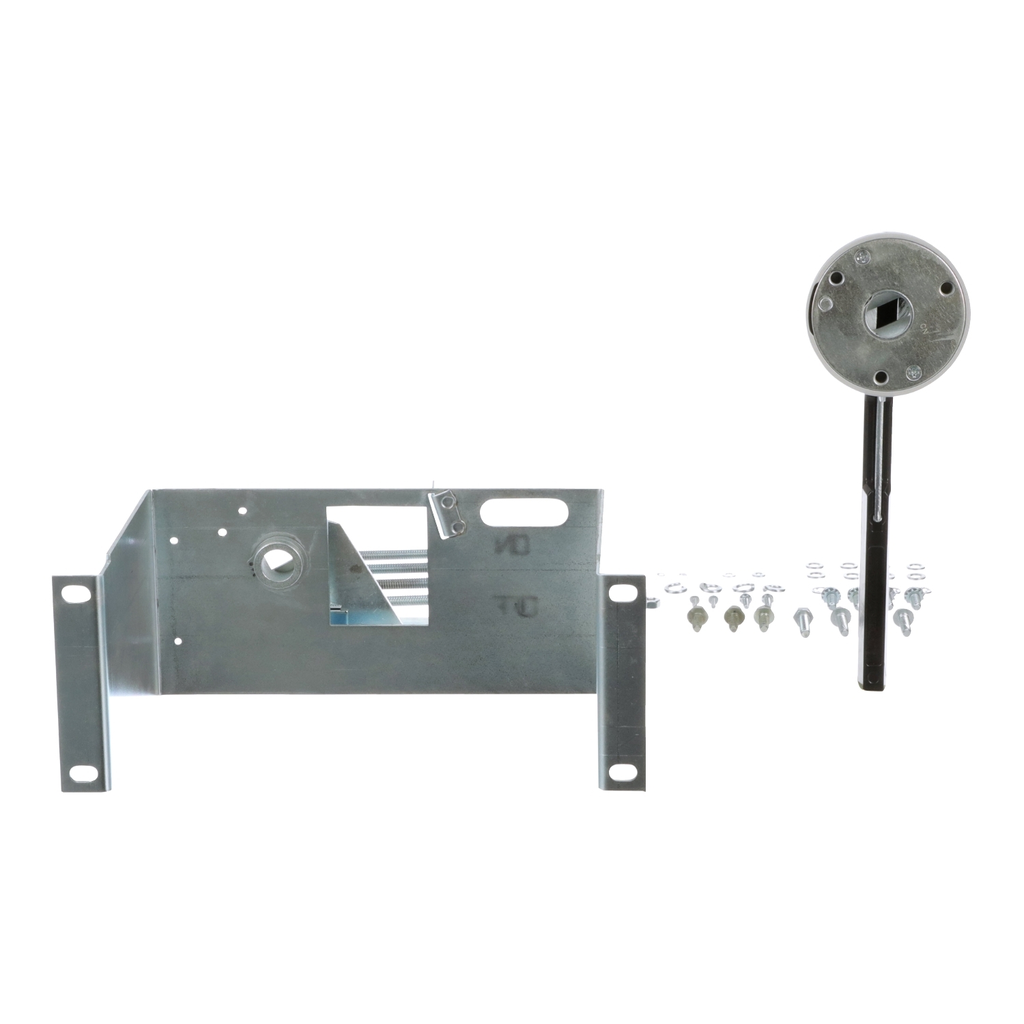

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism kit will work with MEL, MXL, MAL and MHL circuit breakers. The MEL and MXL circuit breakers can be 2 or 3 pole up to 800 A. The MAL and MHL circuit breakers can be 2 or 3 pole up to 1000 A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 7.19 to 11.625 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism kit will work with MEL, MXL, MAL and MHL circuit breakers. The MEL and MXL circuit breakers can be 2 or 3 pole up to 800 A. The MAL and MHL circuit breakers can be 2 or 3 pole up to 1000 A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 7.19 to 11.625 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.
  • Features
    • Used with all disconnect switch and circuit breaker installations
    • Designed for variable depth, flange mounting applications
    • Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
    • Two mounting methods offered for flexibility
    • Disconnect switches were designed for control panel installations
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM8, PB
    • Persona Type Names : End User, Contractor, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-09-04
    • Return Indicator : Y
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1848
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Energy Efficiency Optimized : False
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Circuit Breaker Mechanism
    • Range Of Product : 9421L
    • Returnability : Yes
    • Shaft Type : standard
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Length Total : 8 in
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8538908180
    • Halogen Free Status : Halogen free plastic parts product
    • Warranty In Months : 18
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : No
    • Reach Free Shvc : Yes
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : NEMA 1/3R/12 enclosure
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : Circuit Breaker Mechanism
    • Range Of Product : 9421L
  • ETIM
    • ETIM 8 : EC002498
    • ETIM 9 : EC002498
    • ETIM 10 : EC002498
  • Specifications
    • Country of Origin : Mexico
