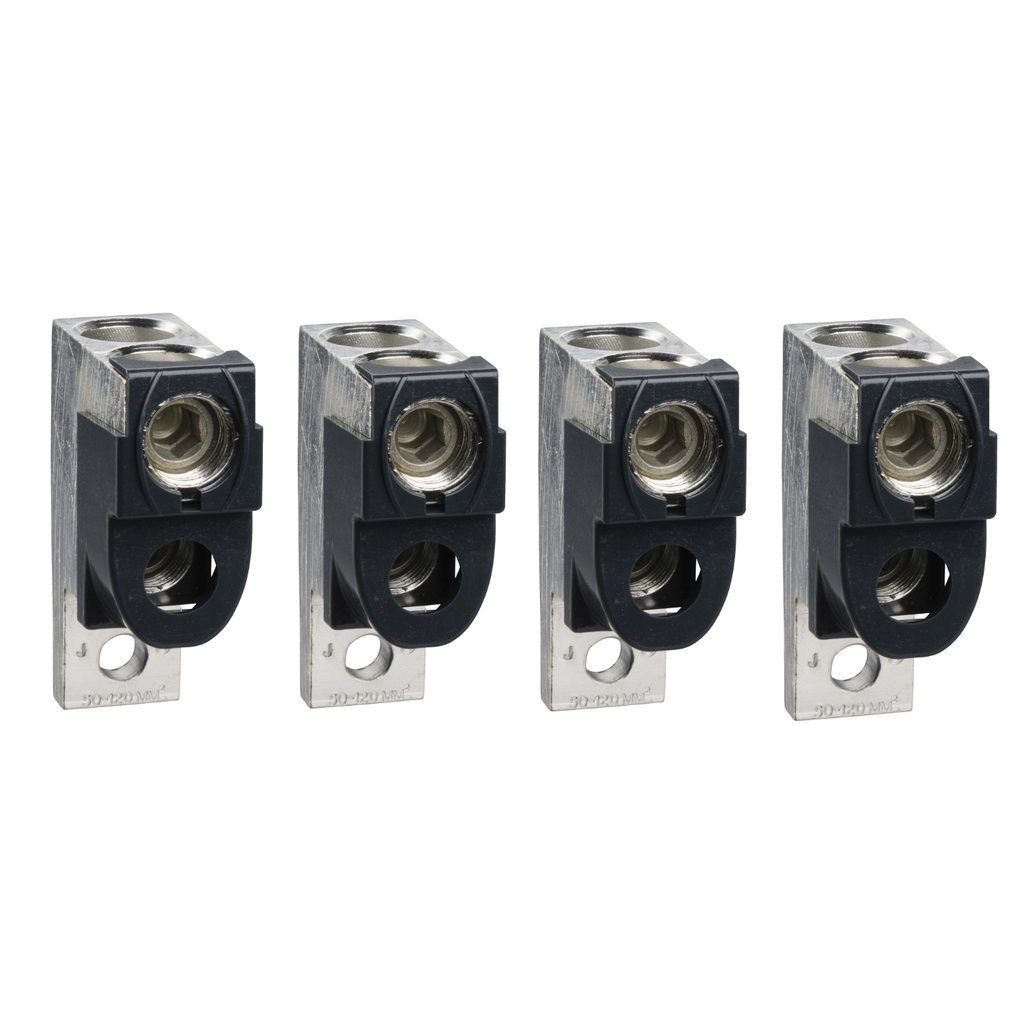

These accessories are aluminium bare cable connectors for Compact NSX 400/630 and EasyPact CVS 400/630. These connectors can receive 2 copper or aluminium cables from 35mm² to 240mm². The connectors are screwed directly on the device terminals or right a

• Connections Terminals
• screw terminal2 35-240 mm²
• Range Compatibility
• ComPacT ComPacT NSX400
• ComPacT ComPacT NSX630
• ComPacT ComPacT NSX DC
• ComPact Compact NSX400
• ComPact Compact NSX630
• ComPact Compact NSX400 D
• Range Of Product
• ComPacT NSX400...630
• ComPacT NSX400...630 DC
• ComPact NSX400...630
• ComPact NSX400...630 DC
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.041162383409063134
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 2 kg CO2 eq.
• 2.3839939966610224
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 9 kg CO2 eq.
• 8.647563220815522
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• Carbon Footprint Of The Distribution Phase A4
• 0.2243512069885544
• 0.2 kg CO2 eq.
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Complementary Attributes
• Line Rated Current : 630-630 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 7/10/2025
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Manufacturing Carbon Footprint : 8.647563221
• Distribution Carbon Footprint : 0.224351207
• Installation Carbon Footprint : 4.12E-02
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 2.383993997
• WEEE Applicability : Finished product
• WEEE Scope : Out
• Legacy WEEE Scope : In
• WEEE Exclusion Rationale : Product/component not in scope – not electric/electronic device
• Scope Perimeter : At least in Europe
• BVB : Recommended
• EOLI Availability Display : No need of specific recycling operations
• BVB Url : https://byggvarubedomningen.se/
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1902
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Conductor Material : aluminium
• Energy Efficiency Optimized : FALSE
• Halogen Free Status : Product contains halogen above thresholds
• Package Weight Lbs : 1.158 kg
• Poles Description : 4P
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : bare cable connector
• Quantity Per Set : set of 4
• Range : ComPacT
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 11 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 11.29707081
• Accessory Separate Part Category : connection accessory
• General Attributes
• Product Or Component Type : bare cable connector
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=850322&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 11.29707081
• Environmental Disclosure : ENVPEP2410036EN
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Product contains halogen above thresholds
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
