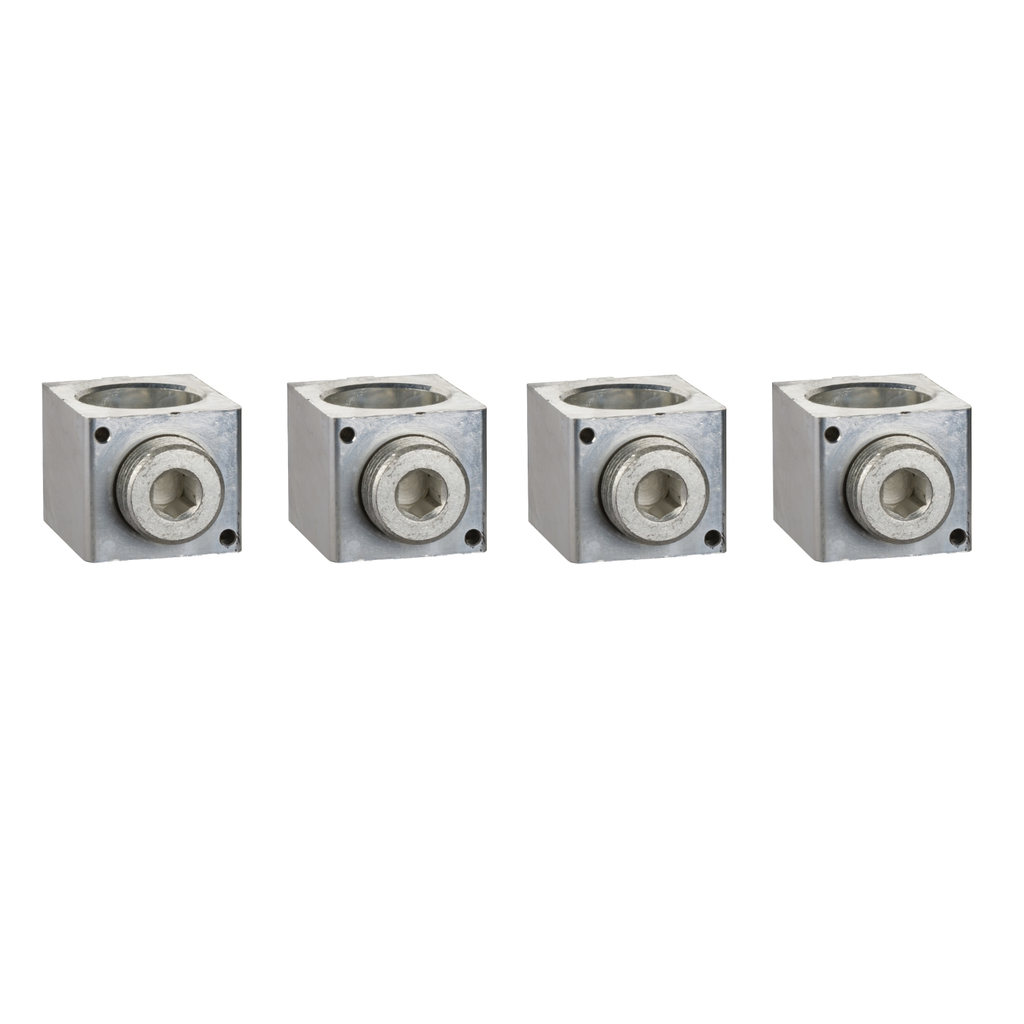

Aluminium bare cable connectors, ComPacT NSX, for 1 cable 35mm² to 300mm², 630A, set of 4 parts

Aluminium bare cable connectors, ComPacT NSX, for 1 cable 35mm² to 300mm², 630A, set of 4 parts

SQDLV432480 LV432480 3606480019388
249.75 / EA
http://schema.org/OutOfStock
Mayer-DDS-Aluminium bare cable connectors, ComPacT NSX, for 1 cable 35mm² to 300mm², 630A, set of 4 parts-1
  • Country of Origin: France
  • Warranty Length: 18 mth
These accessories are aluminium bare cable connectors for Compact NSX 400/630 and EasyPact CVS 400/630. These connectors can receive 1 copper or aluminium cables from 35mm² to 300mm². The connectors snap directly on to the device terminals or are secured by clips to terminal extensions. The rated current is up to 630 A. They are sold by set of 4 parts.
QTY
  • Product Description
  • Features
  • Specifications
These accessories are aluminium bare cable connectors for Compact NSX 400/630 and EasyPact CVS 400/630. These connectors can receive 1 copper or aluminium cables from 35mm² to 300mm². The connectors snap directly on to the device terminals or are secured by clips to terminal extensions. The rated current is up to 630 A. They are sold by set of 4 parts.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2410036EN
    • Halogen Content Performance : Product contains halogen above thresholds
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 3.6568551575025783
    • Carbon Footprint Of The Distribution Phase [A4] : 0.1 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 5 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 1.0081361095065677
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 4.7772708442310154
  • Complementary
    • Conductor Material : aluminium
    • Connections - Terminals : screw terminal1 35-300 mm²
    • Line Rated Current : 630-630 A
  • Specifications
    • Country of Origin : France
    • Range Compatibility : ComPacT ComPacT NSX400 || ComPacT ComPacT NSX630 || ComPacT ComPacT NSX DC || ComPact Compact NSX400 || ComPact Compact NSX630 || ComPact Compact NSX400 DC || ComPact Compact NSX630 DC || ComPact || EasyPact EasyPact CVS400 || EasyPact EasyPact CVS630 || ComPact ComPacT INS || ComPact Compact INV
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : bare cable connector
    • Poles Description : 4P
    • Quantity Per Set : set of 4
  • Contractual warranty
    • Warranty : 18 months
