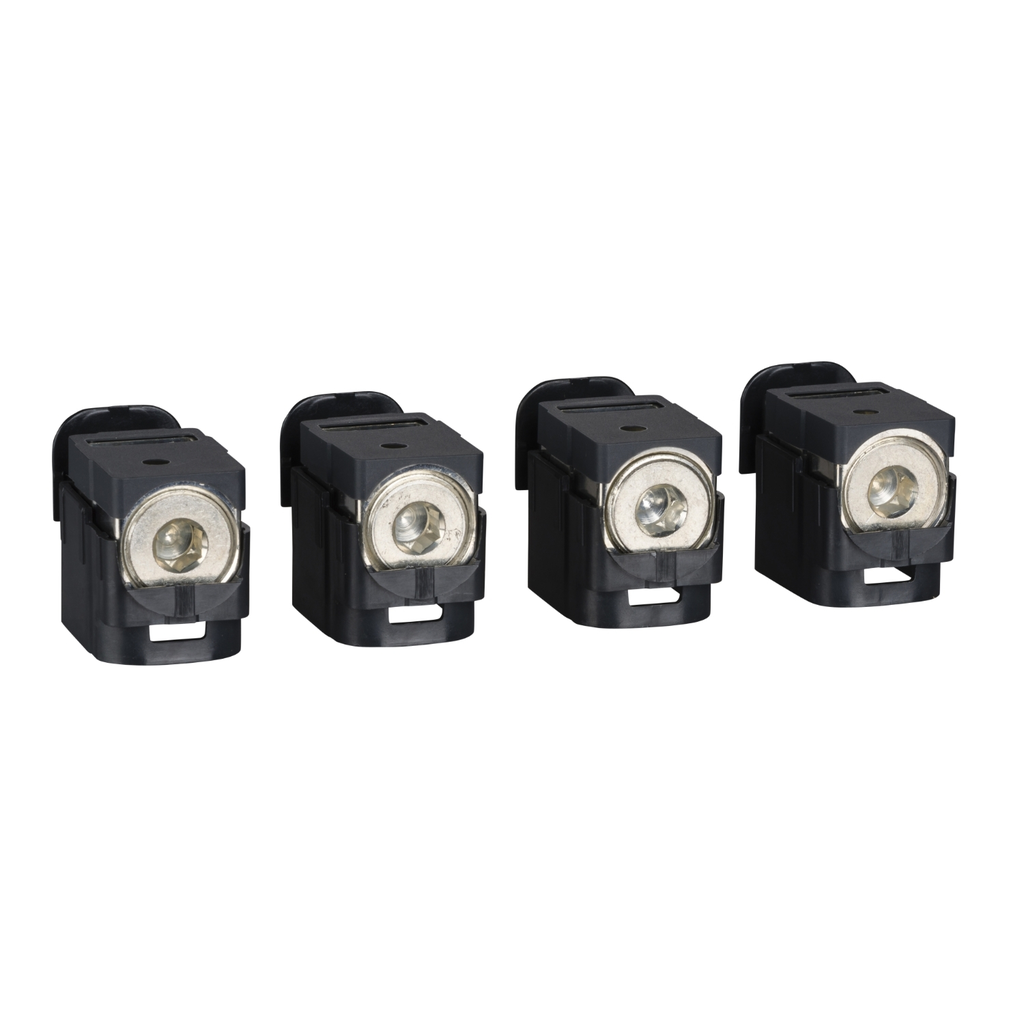

These accessories are aluminium bare cable connectors for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. These connectors can receive 1 copper or aluminium cables from 120mm² to 185mm². The connectors snap directly on to the device terminals or ar

• Connections Terminals
• screw terminal1 120-185 mm²
• Range Compatibility
• ComPacT ComPacT NSX100
• ComPacT ComPacT NSX160
• ComPacT ComPacT NSX250
• ComPacT ComPacT NSX DC
• ComPact Compact NSX100
• ComPact Compact NSX160
• C
• Range Of Product
• ComPacT NSX100...250
• ComPacT NSX100...250 DC
• ComPact NSX100...250
• ComPact NSX100...250 DC
• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
• Carbon Footprint Of The Installation Phase A5
• 0.007957822997020785
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.5 kg CO2 eq.
• 0.46089173366990827
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 2 kg CO2 eq.
• 1.6718122656533303
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• Carbon Footprint Of The Distribution Phase A4
• 0.04337327060584618
• 0 kg CO2 eq.
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Complementary Attributes
• Line Rated Current : 250-250 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 8/11/2025
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Manufacturing Carbon Footprint : 1.671812266
• Distribution Carbon Footprint : 4.34E-02
• Installation Carbon Footprint : 7.96E-03
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 0.460891734
• WEEE Applicability : Finished product
• WEEE Scope : Out
• Legacy WEEE Scope : In
• WEEE Exclusion Rationale : Product/component not in scope – not electric/electronic device
• Scope Perimeter : At least in Europe
• BVB : Recommended
• EOLI Availability Display : No need of specific recycling operations
• BVB Url : https://byggvarubedomningen.se/
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1902
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Conductor Material : aluminium
• Energy Efficiency Optimized : FALSE
• Halogen Free Status : Product contains halogen above thresholds
• Package Weight Lbs : 222.100 g
• Poles Description : 4P
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : bare cable connector
• Quantity Per Set : set of 4
• Range : ComPacT
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 2.184035093
• Accessory Separate Part Category : connection accessory
• General Attributes
• Product Or Component Type : bare cable connector
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=848706&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 2.184035093
• Environmental Disclosure : ENVPEP2410036EN
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Product contains halogen above thresholds
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
