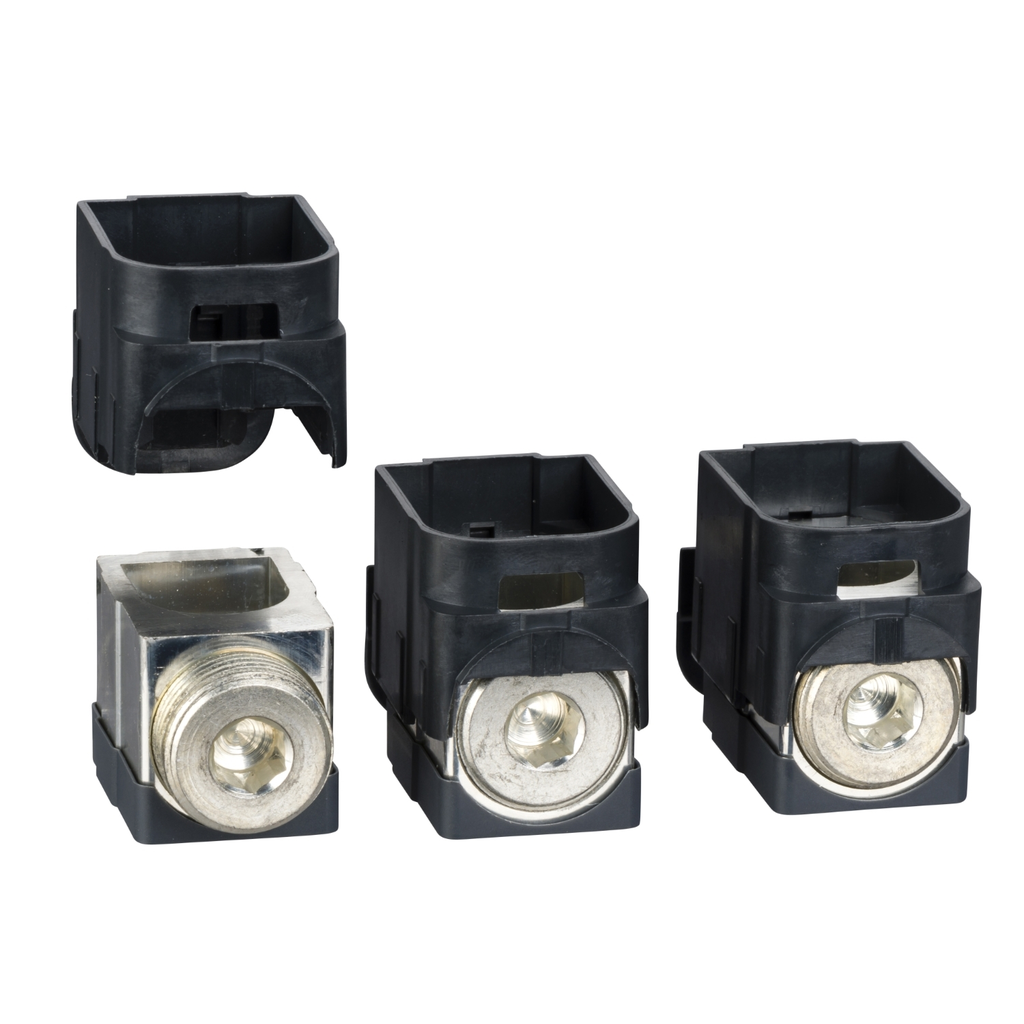

These accessories are aluminium bare cable connectors for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. These connectors can receive 1 copper or aluminium cables from 120mm² to 185mm². The connectors snap directly on to the device terminals or are secured by clips to terminal extensions. The rated current is up to 250 A. They are sold by set of 3 parts.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 250-250 A
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Range Of Product : ComPact NSX100...250, ComPact NSX100...250 DC
• Parts Quantity : set of 3
• Carbon Footprint Of The Distribution Phase [A4] : 0.033050004495714255, 0 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.4 kg CO2 eq., 0.3511949561805666
• Carbon Footprint Of The Installation Phase [A5] : 0.006063782651248469, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 1 kg CO2 eq., 1.2739044606054064
• Carbon Footprint Of The Use Phase [B2 B3 B4 B6] : kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-11
• Return Indicator : N
• Stocking Flag : Y
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Service Catalog Item : Finished good
• Weee Applicability : Finished product
• Weee Scope : Out
• Weee Exclusion Rationale : Product/component not in scope – not electric/electronic device
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1902
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Conductor Material : aluminium
• Energy Efficiency Optimized : False
• Number Of Poles : 3P
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : bare cable connector
• Quantity Per Set : set of 3
• Range : ComPacT
• Returnability : No
• Software Version : v6.2.3
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
• Pep Code : ENVPEP2410036EN
• Database Version : 2024-07
• Pep Verification Date : 2024-11-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.& 10& 10Connect copper or aluminium cables from 35mm² to 300mm² to the circuit breaker with a rated current up to 630 A during a period of 20 years with a 3 pole system.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; France, FR
• Energy Model - Installation [A5] : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Recyclability Potential In % : 84
• Accessory / Separate Part Category : connection accessory
• Connections - Terminals : screw terminal1 120-185 mm²
• Halogen-free Status : Product contains halogen above thresholds
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 162.400 g
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 8536904000
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : No
• Reach Free Shvc : Yes
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 1.6642132039329356
• Environmental Disclosure : ENVPEP2410036EN
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Product contains halogen above thresholds
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2410036EN
• Pep Verification Date : 2024-11-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Range Of Product : ComPact NSX100...250, ComPact NSX100...250 DC
• Product Or Component Type : bare cable connector
• ETIM
• ETIM 8 : EC002498
• ETIM 9 : EC002498
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, France
