SQUARE D

Circuit breaker accessory, PowerPacT M/P/R, shunt trip, 48VAC, 48VDC, 60VDC

CIRCUIT BREAKER SHUNT TRIP 48-

SQDS33660 S33660 785901160151
481.20 / EACH
http://schema.org/OutOfStock

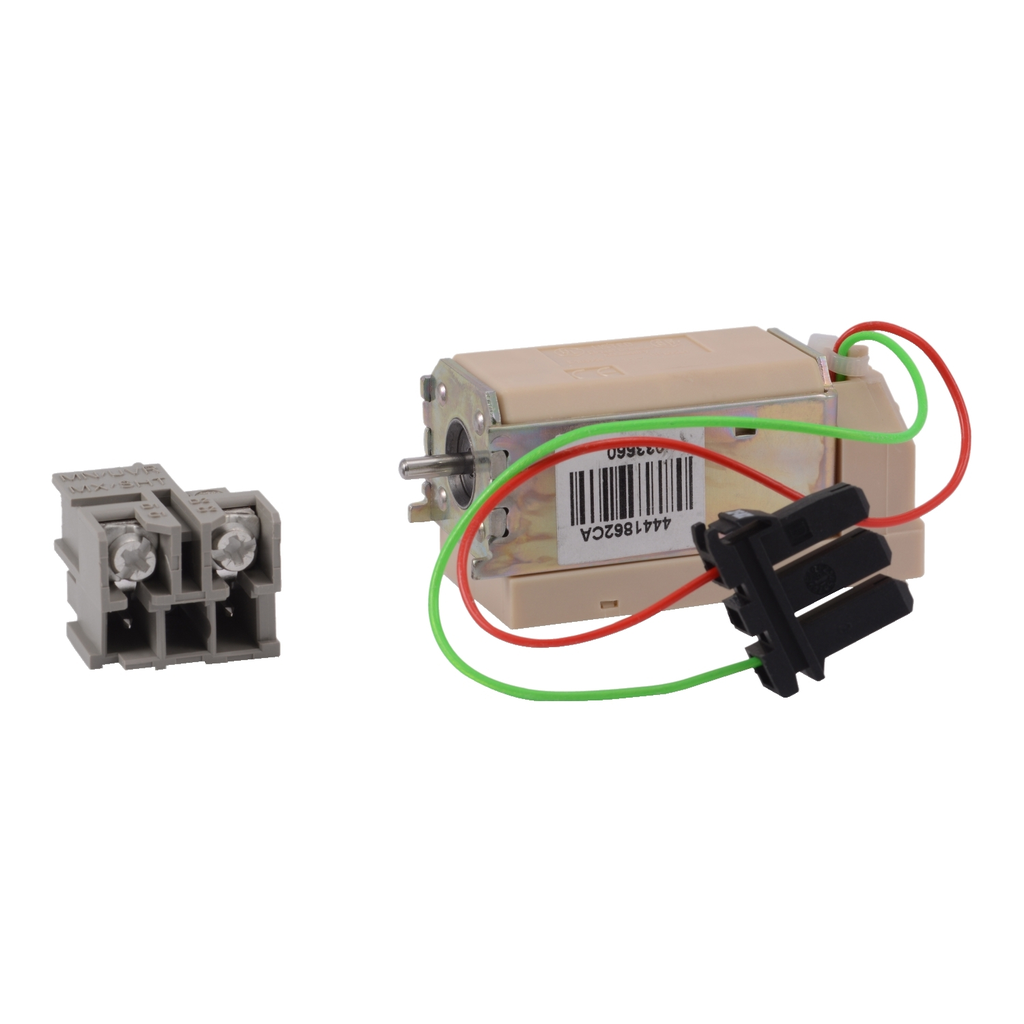

Mayer-DDS-Circuit breaker accessory, PowerPacT M/P/R, shunt trip, 48VAC, 48VDC, 60VDC-1
  • Warranty Length: 18 mth
The shunt trip accessory is used to trip the circuit breaker from a remote location by using a trip coil energized from a separate circuit. When energized by a push button or other pilot device, the shunt trip causes the circuit breaker to trip. The trip coil has coil clearing contacts to break the coil circuit when the circuit breaker opens. Shunt trips are available for two and three-pole thermal-magnetic circuit breakers, magnetic only circuit breakers and molded case switches with standard control voltage ratings to 480VAC or 24VDC. This field installable shunt trip is rated for 48VAC/DC and 60VDC.
QTY
  • Product Description
  • Features
  • Specifications
The shunt trip accessory is used to trip the circuit breaker from a remote location by using a trip coil energized from a separate circuit. When energized by a push button or other pilot device, the shunt trip causes the circuit breaker to trip. The trip coil has coil clearing contacts to break the coil circuit when the circuit breaker opens. Shunt trips are available for two and three-pole thermal-magnetic circuit breakers, magnetic only circuit breakers and molded case switches with standard control voltage ratings to 480VAC or 24VDC. This field installable shunt trip is rated for 48VAC/DC and 60VDC.
  • Features
    • Flexible and simple offer, with proven performance.
    • Available in 2-3-4 pole design from 240-3000A at up to 600 Vac
    • A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility.
    • Easy to install, extremely versatile, a wide variety of terminal options
    • Available in Unit mount (lug-lug, rear, bus bar), I-line or Drawout constructions.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : CSA
  • Complementary Attributes
    • Rated Voltage : 48-48 V AC/DC, 60-60 V DC
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Range Of Product : PowerPact M, PowerPact P, PowerPact R
    • Carbon Footprint Of The Distribution Phase A4 : 0.021053, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.29512
    • Carbon Footprint Of The Installation Phase A5 : 0.035899, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 2.9037
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.000035545
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Manufacturer : Schneider Electric
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2307032EN
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 227 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : shunt trip
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 1.2-1.2 N.m 0.82-2.5 mm² (AWG 18...AWG 14)
    • Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
    • Medium Desc : Circuit breaker accessory, PowerPacT M/P/R, shunt trip, 48VAC, 48VDC, 60VDC
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2307032EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-12-03
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : The MX release instantaneously opens the circuit breaker when energized, the minimum duration of the pulse operating order must be 200 ms. Service Duration: 10 years.& 10It complies with IEC 60947-2 standard.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 3.255807545
    • Circularity Profile : ENVEOLI2307032EN
    • Environmental Disclosure : ENVPEP2307032EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2307032EN
    • Pep Verification Date : 2023-12-03
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Range Of Product : PowerPact M, PowerPact P, PowerPact R
    • Product Or Component Type : shunt trip
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
