SQUARE D

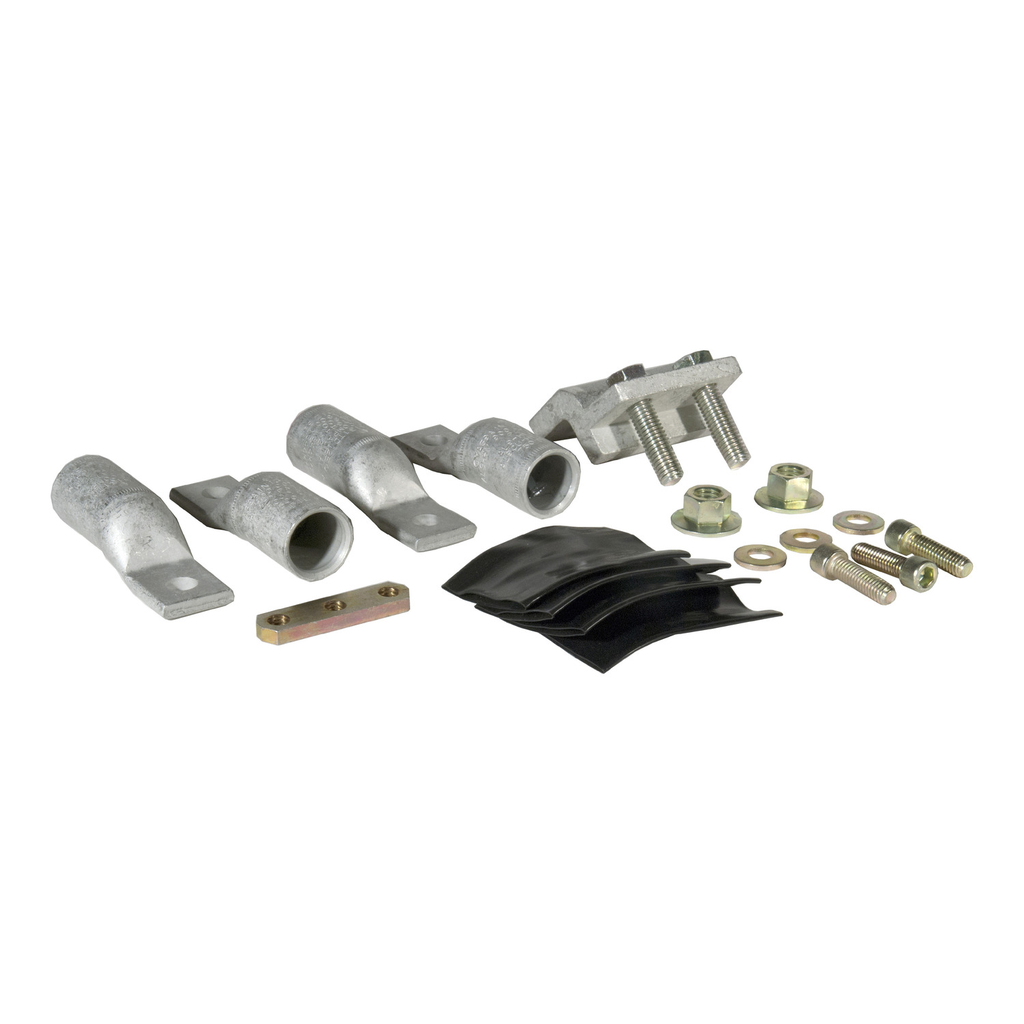

Circuit breaker accessory, PowerPacT R, compression lug kit, I-Line, aluminum, 4 lugs, 1200A

1200A ALUMINUM R-FRAME MOULDED

SQDYA1200R7 YA1200R7 785901468578
565.97 / EA
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker accessory, PowerPacT R, compression lug kit, I-Line, aluminum, 4 lugs, 1200A-1
  • Material: Aluminum
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : CSA, UL
  • Complementary Attributes
    • Line Rated Current : 1200-1200 A
  • Important Information Attributes
    • AWG Gauge : 500...750 kcmil aluminium, 500 kcmil copper
    • Mounting Mode : compression, I-Line
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Material : aluminium
    • Package Weight Lbs : 1.560 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : mechanical lug
    • Quantity Per Set : set of 4
    • Range Of Product : PowerPact R
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 28-28 N.m 240-400 mm² (500...750 kcmil)
    • Accessory Separate Part Category2 : connection accessory
    • Medium Desc : Circuit breaker accessory, PowerPacT R, compression lug kit, I-Line, aluminum, 4 lugs, 1200A
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : mechanical lug
    • Range Of Product : PowerPact R
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
