SQUARE D

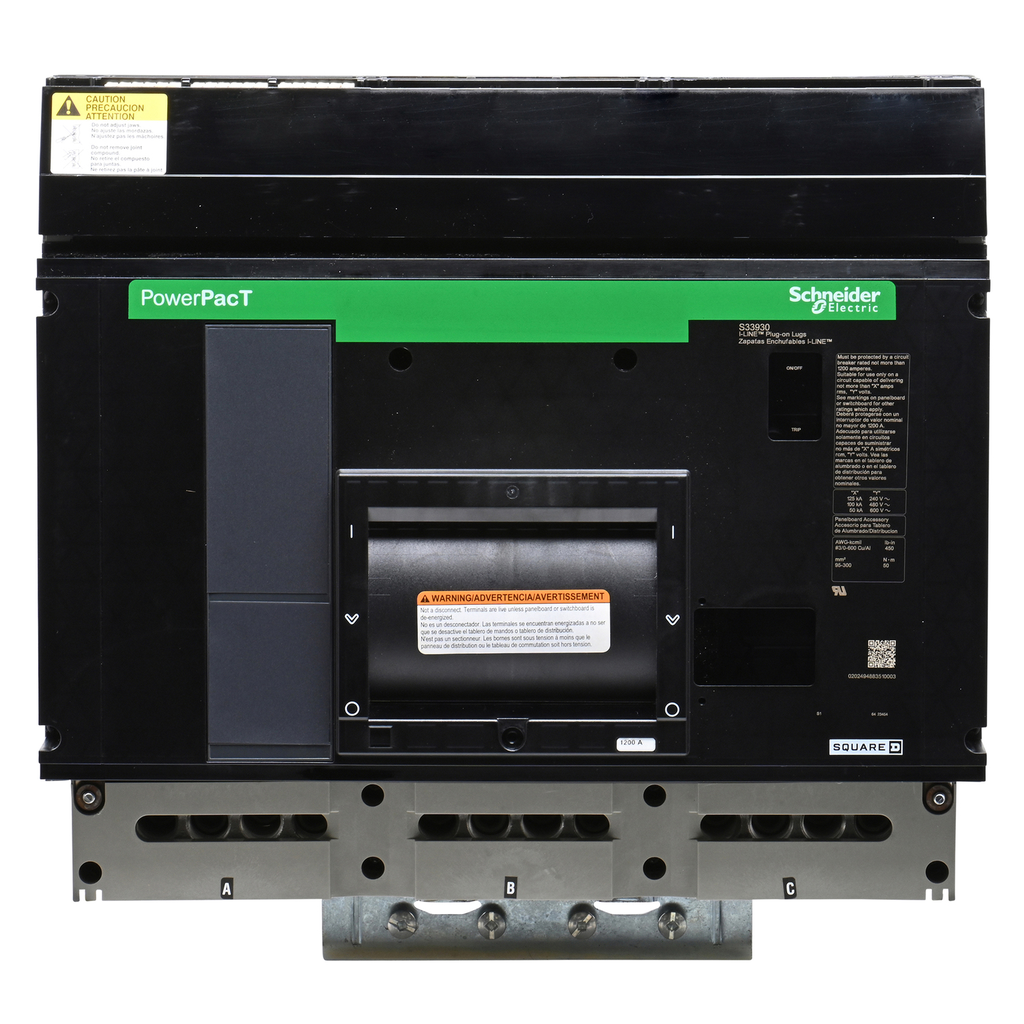

Circuit breaker accessory, PowerPacT P, I-Line, HCR-U, bolt on, sub feed lugs, 1200A, 3/0 to 600kcmil

CIRCUIT BREAKER SUBFEED LUG KI

SQDS33930 S33930 785901231967
2422.29 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker accessory, PowerPacT P, I-Line, HCR-U, bolt on, sub feed lugs, 1200A, 3/0 to 600kcmil-1
  • Warranty Length: 18 mth
Square D sub-feed lug kits are UL Listed for use on Listed equipment. They have plug-on jaw construction and plug on to the I-Line bus stack in the same manner as branch circuit breakers. Lugs on these devices accommodate the same wire sizes as the equivalent ampere rated circuit breakers. This I-line sub-feed lug kit is 3 pole with 1200A current rating and is used for I-line, HCR-U panels with I-line circuit breakers. Mounting height is 15 inches and terminal data is 4 wires of AWG 3/0 - 600 kcmil. There are 4 conducters per lug.
QTY
  • Product Description
  • Features
  • Specifications
Square D sub-feed lug kits are UL Listed for use on Listed equipment. They have plug-on jaw construction and plug on to the I-Line bus stack in the same manner as branch circuit breakers. Lugs on these devices accommodate the same wire sizes as the equivalent ampere rated circuit breakers. This I-line sub-feed lug kit is 3 pole with 1200A current rating and is used for I-line, HCR-U panels with I-line circuit breakers. Mounting height is 15 inches and terminal data is 4 wires of AWG 3/0 - 600 kcmil. There are 4 conducters per lug.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Physical Attributes
    • Bar Length : 381 mm
  • Conformance Attributes
    • Product Certifications : UL, CSA
  • Complementary Attributes
    • Line Rated Current : 1200-1200 A
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Product Destination : panelboard HCP 2184 mm 1067 mm, panelboard HCP-SU 2184 mm 660 mm
    • Range Of Product : PowerPact P, I-Line
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • AWG Gauge : AWG 3/0...600 kcmil
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Package Weight Lbs : 18.960 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : sub-feed lug
    • Returnability : Yes
    • Sustainable Packaging : No
    • Medium Desc : Circuit breaker accessory, PowerPacT P, I-Line, HCR-U, bolt on, sub feed lugs, 1200A, 3/0 to 600kcmil
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Range Of Product : PowerPact P, I-Line
    • Product Or Component Type : sub-feed lug
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
