Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 250A, 4 pole, Al

CIRCUIT BREAKER MECHANICAL LUG

SQDAL400L61K4 AL400L61K4 785901309673
138.49 / EA
http://schema.org/OutOfStock

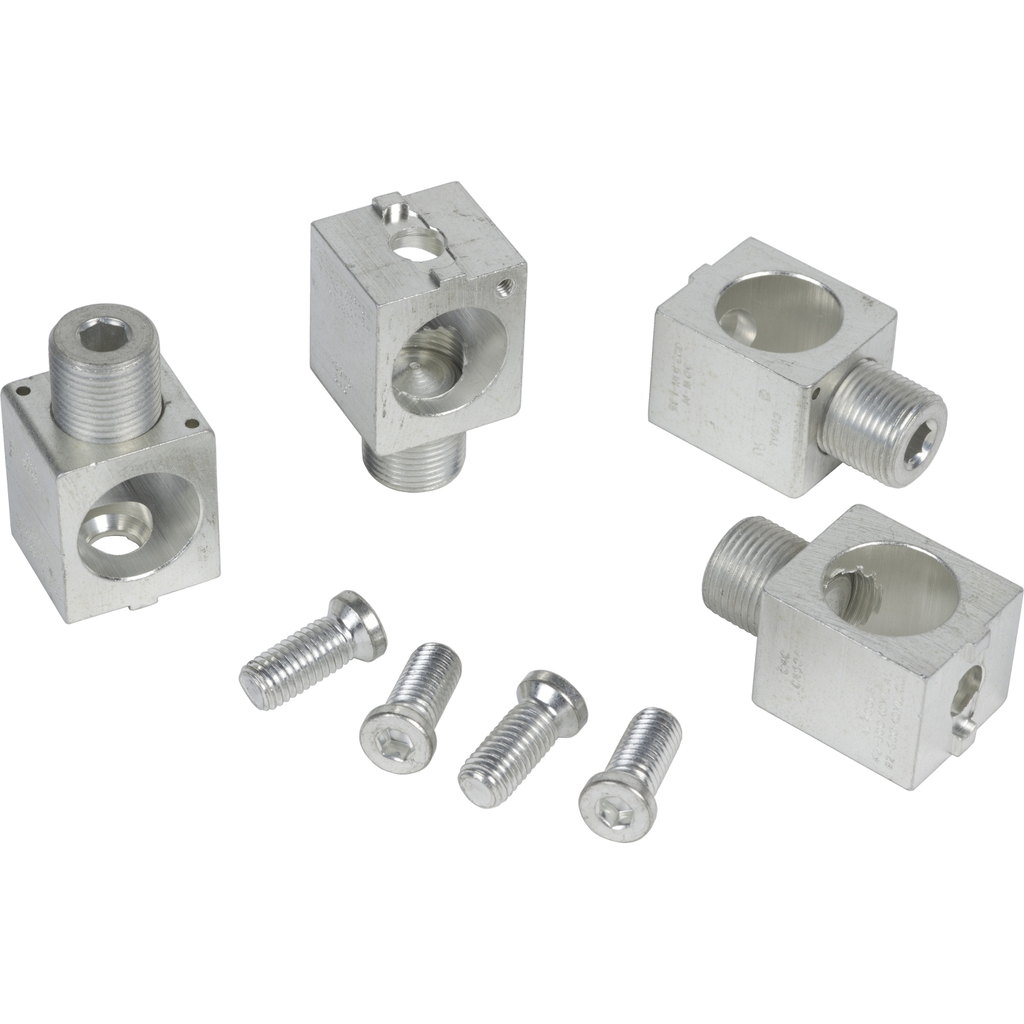

Mayer-DDS-Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 250A, 4 pole, Al-1
  • Material: Aluminum
  • Warranty Length: 18 mth
This lug kit is a connector accessory for PowerPact L-Frame circuit breakers. This connector accessory is made of aluminum and for a 4 pole circuit breaker. This accessory has a rated current of 250 amps. The lug kit are for terminal connection and will accept a wire size of AWG 2 with a 600 kcmil. This product complies with UL standards. This lug can be used only on standard circuit breakers. This lug has a tightening torque of 50-50 Nm, with a cable cross section of 35-240 mm².
QTY
  • Product Description
  • Features
  • Specifications
This lug kit is a connector accessory for PowerPact L-Frame circuit breakers. This connector accessory is made of aluminum and for a 4 pole circuit breaker. This accessory has a rated current of 250 amps. The lug kit are for terminal connection and will accept a wire size of AWG 2 with a 600 kcmil. This product complies with UL standards. This lug can be used only on standard circuit breakers. This lug has a tightening torque of 50-50 Nm, with a cable cross section of 35-240 mm².
  • Features
    • PowerPacT L aluminum mechanical lugs kit 250A, 4 poles, 4 pieces per kit
    • Lugs are made of tin-plated aluminum which allows to use them with aluminum and Copper conductors
    • Mechanical lugs are for use with unit mount PowerPact L breakers for line, load sides or for load side of I-line breaker
    • Terminal data for this lugs is (1) 2 AWG–500 kcmil Al and (1) 2 AWG–600 kcmil Cu, medium type of terminal
    • All lugs are UL Listed and CSA certified for their proper application
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL
  • Complementary Attributes
    • Line Rated Current : 250-250 A
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • AWG Gauge : AWG 2...600 kcmil copper
    • Energy Efficiency Optimized : False
    • Material : aluminium
    • Mounting Mode : unit mount
    • Package Weight Lbs : 408 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : mechanical lug
    • Quantity Per Set : set of 4
    • Range Of Product : PowerPact L
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 50-50 N.m 35-240 mm² (AWG 2...500 kcmil)
    • Medium Desc : Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 250A, 4 pole, Al
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : mechanical lug
    • Range Of Product : PowerPact L
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
