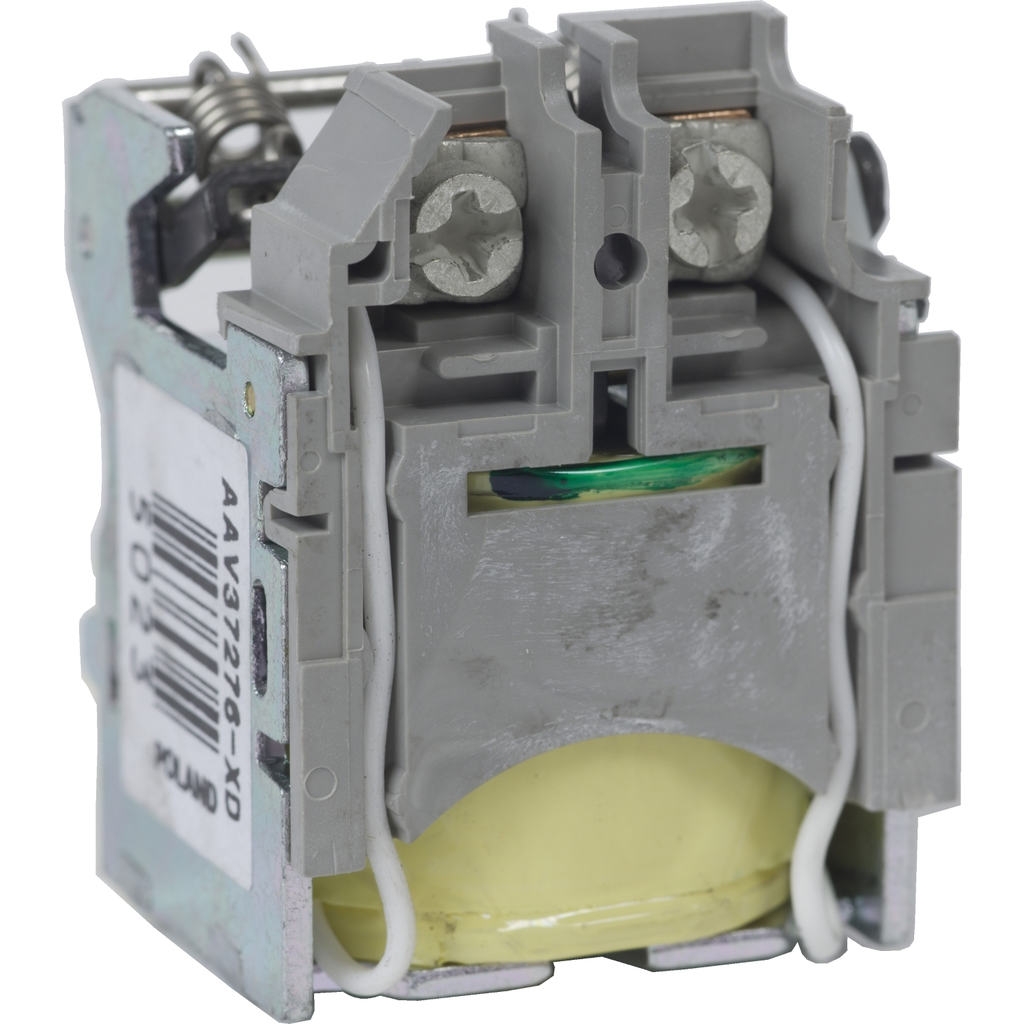

Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 380VAC to 480VAC

CIRCUIT BREAKER SHUNT TRIP 380

SQDS29388 S29388 785901589914
564.20 / EACH
http://schema.org/OutOfStock
  • Country of Origin: USA
The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ≥ 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.
QTY
  • Product Description
  • Features
  • Specifications
The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ≥ 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.
  • Features
    • Have common mounting holes, handle locations, and trim dimensions to allow design standardization
    • A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility
    • Available in 2-3 pole design, from 70-250A at up to 600 VAC and 250 VDC and in standard (80%) or 100% rating
    • Easy to install, extremely versatile, a wide variety of terminal options
    • Available in Unit mount (lug-lug, rear, bus bar, plugin and drawout) and I-line constructions.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Voltage : 380-480 V AC
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Range Of Product : PowerPact H, PowerPact J, PowerPact L
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-09-05
    • Return Indicator : Y
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1807
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Energy Efficiency Optimized : False
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : shunt trip
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 1.4-1.4 N.m 0.82-2.5 mm² (18 AWG...14 AWG)
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Certificate Agency : CSA
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8505907501
    • Warranty In Months : 18
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
  • General Attributes
    • Range Of Product : PowerPact H, PowerPact J, PowerPact L
    • Product Or Component Type : shunt trip
  • ETIM
    • ETIM 8 : EC001286
    • ETIM 9 : EC001286
    • ETIM 10 : EC001286
  • Specifications
    • Country of Origin : United States
