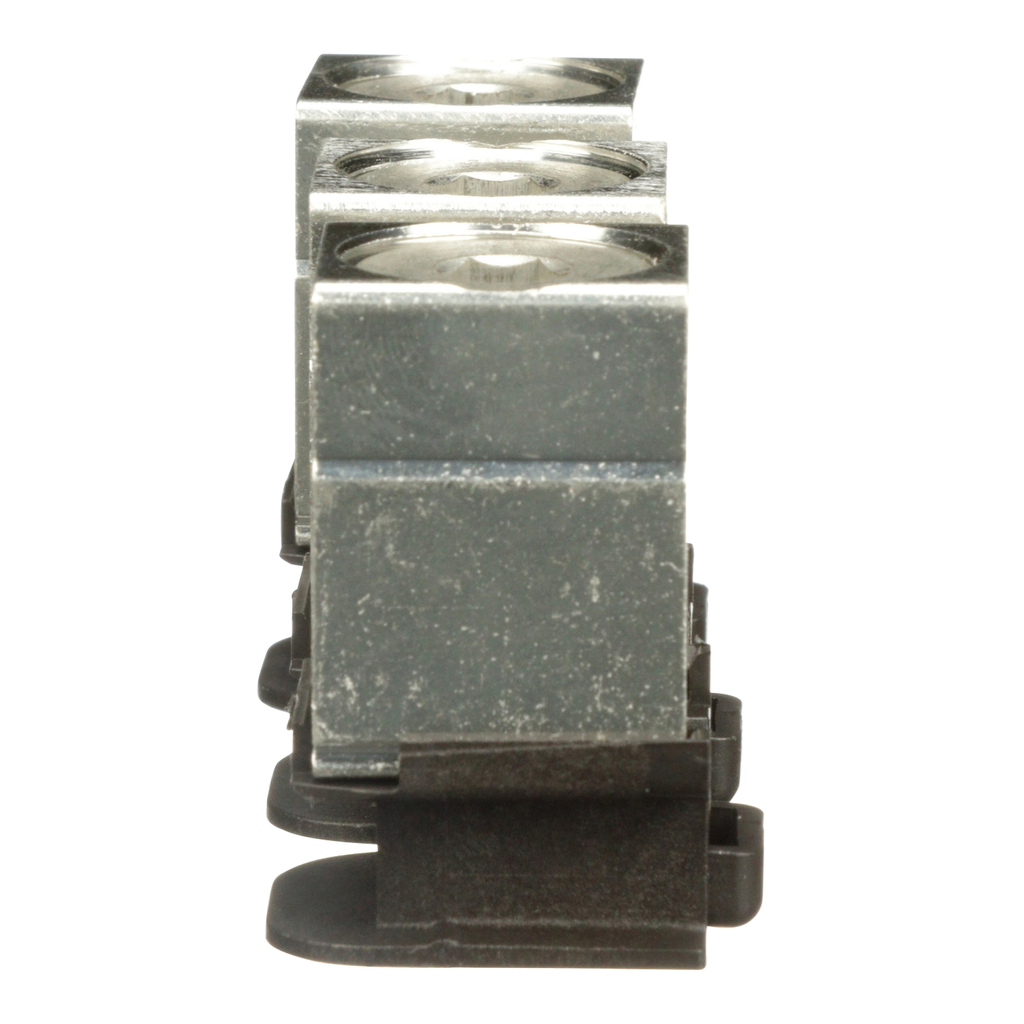

Circuit breaker accessory, PowerPacT J, lug kit, mechanical, 150A to 250A, 1/0 to 300kcmil, copper, qty 3

CIRCUIT BREAKER MECHANICAL LUG

SQDCU250JD CU250JD 785901467861
200.13 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker accessory, PowerPacT J, lug kit, mechanical, 150A to 250A, 1/0 to 300kcmil, copper, qty 3-2
  • Warranty Length: 18 mth
This lug kit is for PowerPacT J circuit breakers. This PowerPacT J, mechanical lug is a connection accessory with a rated current of 150A to 250A and is made of copper. The lugs accept 1/0 AWG to 300kcmil copper conductors. The lugs comply with UL and CSA standards.
QTY
  • Product Description
  • Features
  • Specifications
This lug kit is for PowerPacT J circuit breakers. This PowerPacT J, mechanical lug is a connection accessory with a rated current of 150A to 250A and is made of copper. The lugs accept 1/0 AWG to 300kcmil copper conductors. The lugs comply with UL and CSA standards.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || UL
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Tightening Torque : 28-28 N.m 50-150 mm² (AWG 1/0...300 kcmil)
    • Material : copper
    • Line Rated Current : 250-250 A
    • Location Of Connection : downstream || upstream
    • Awg Gauge : AWG 1/0...300 kcmil copper
  • Specifications
    • Country of Origin : Mexico
    • Range Of Product : PowerPact J
    • Circuit Breaker Type : JD/JG/JJ/JL
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : mechanical lug
    • Quantity Per Set : set of 3
