Plug in tap box, I-Line Busway, 800A to 1600A, 600VAC, 3 phase, 3 wire, integral ground bus, Al and Cu, horizontal

BUSWAY PLUG-IN TAP BOX, HORIZ

SQDPTB316GH PTB316GH 785901087403
10090.14 / EACH
http://schema.org/OutOfStock

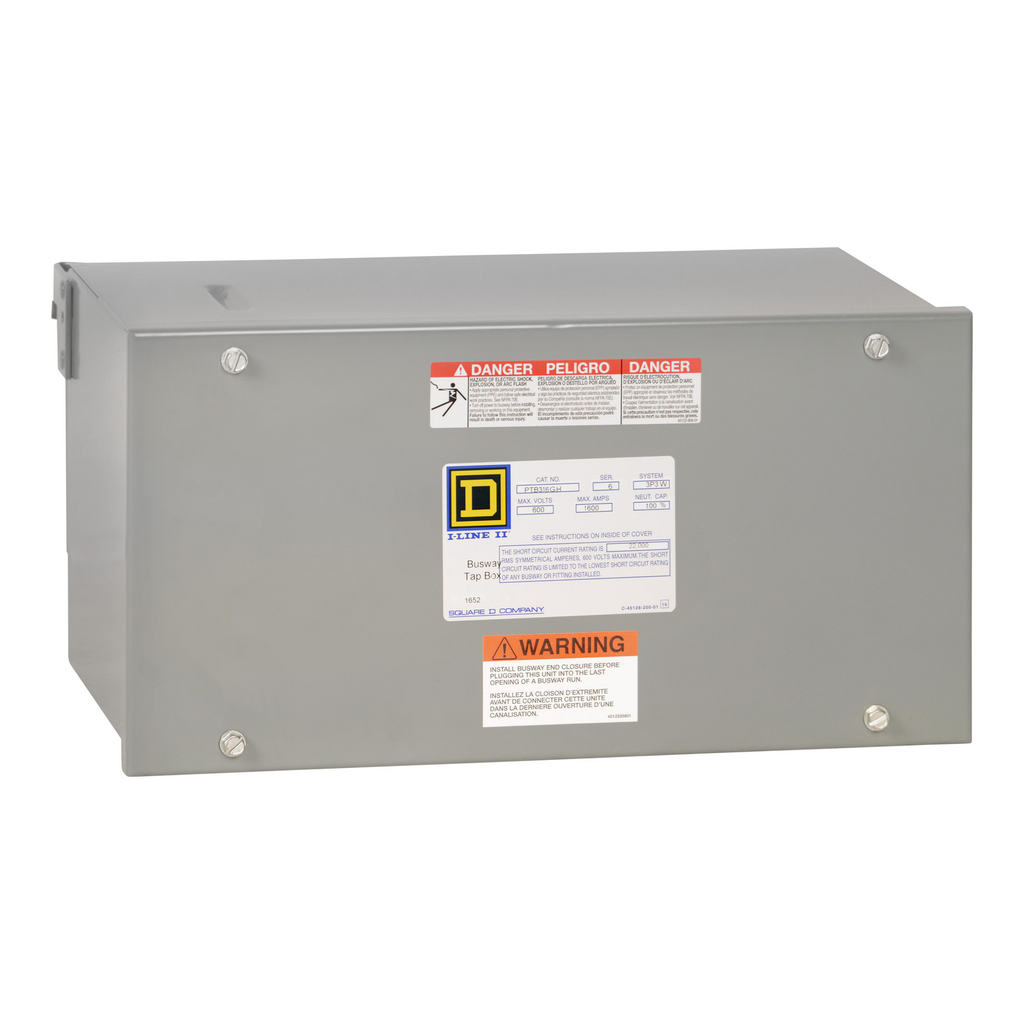

Mayer-DDS-Plug in tap box, I-Line Busway, 800A to 1600A, 600VAC, 3 phase, 3 wire, integral ground bus, Al and Cu, horizontal-1
  • Warranty Length: 18 mth
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This plug-in tap box is rated 800A to 1600A, that is ideal for 3 phase, 3 wire commercial or industrial applications. As an accessory, it is designed to be plugged into the side of the busway (at any opening except the very last opening of a run). This plug in tap box can be used with aluminum or copper busways. This unit is for horizontal mounting. This plug in tap box meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
QTY
  • Product Description
  • Features
  • Specifications
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This plug-in tap box is rated 800A to 1600A, that is ideal for 3 phase, 3 wire commercial or industrial applications. As an accessory, it is designed to be plugged into the side of the busway (at any opening except the very last opening of a run). This plug in tap box can be used with aluminum or copper busways. This unit is for horizontal mounting. This plug in tap box meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Line Rated Current : 800-1600 A
    • UE Rated Operational Voltage : 600 V AC/DC 50/60 Hz
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB, SI
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Carbon Footprint Of The Distribution Phase A4 : 309.65836447290576, 310 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 227 kg CO2 eq., 226.52028657080334
    • Carbon Footprint Of The Installation Phase A5 : 25.23846750018943, 25 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 358 kg CO2 eq., 1358.1234047696078
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 526 kg CO2 eq., 525.670990018211
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • AWG Gauge : AWG 1/0...600 kcmil
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 158.757 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : tap box
    • Range Of Product : I-Line
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 2 445 kg CO2 eq.
    • Wiring Configuration : 3-wire
    • Pep Code : ENVPEP2412020EN
    • Pep Verification Date : 2025-01-31
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : RYAN JONES
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 2445.2115133317175
    • Environmental Disclosure : ENVPEP2412020EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2412020EN
    • Pep Verification Date : 2025-01-31
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
  • General Attributes
    • Product Or Component Type : tap box
    • Range Of Product : I-Line
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
