SQUARE D

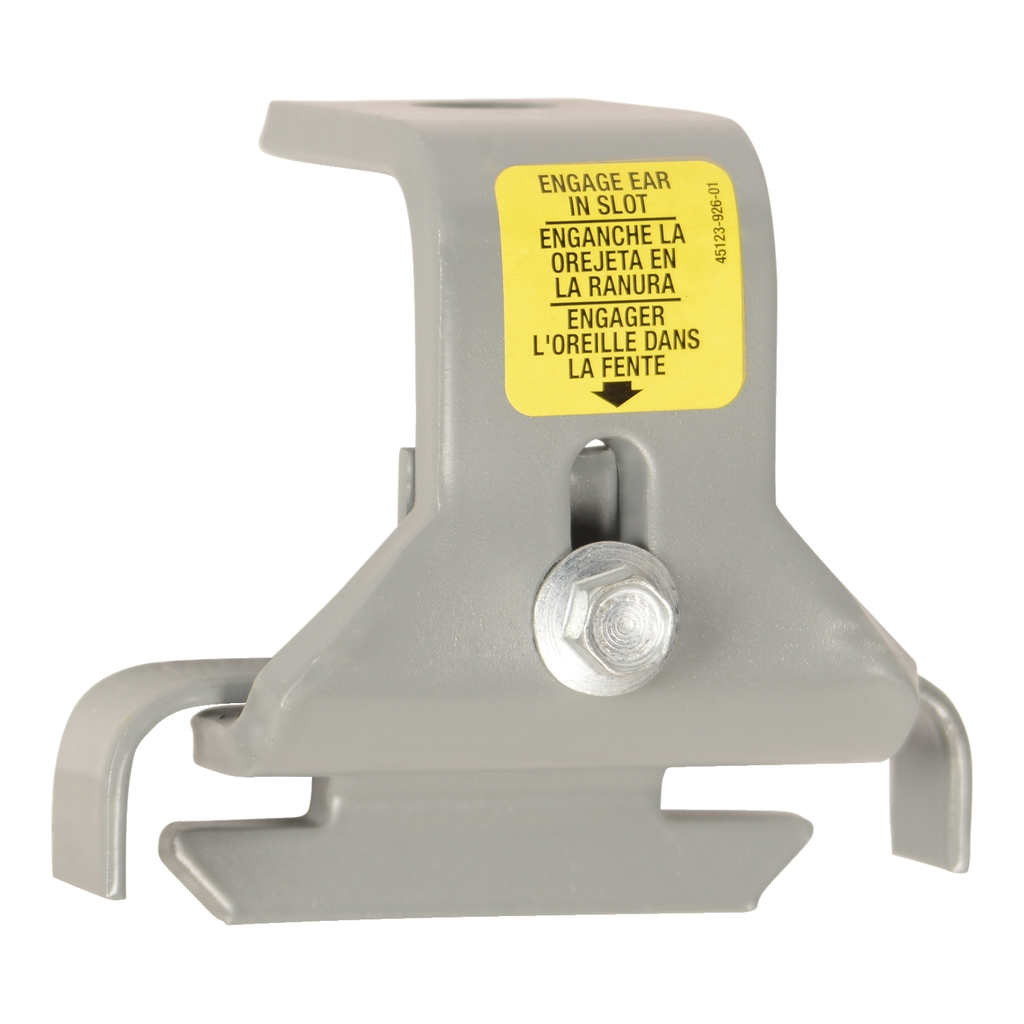

Busway, I-Line, horizontal hanger, for 600A copper, for 400A aluminum or copper, 600 VAC [TAA]

SQD HP3F BUSWAY HANGER FLATWI

SQDHP3F HP3F 785901506348
146.67 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Busway, I-Line, horizontal hanger, for 600A copper, for 400A aluminum or copper, 600 VAC [TAA]-1
  • Country of Origin: USA
  • Warranty Length: 18 mth
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This horizontal hanger is for 600A and 400A copper and 400 A aluminum I-Line busway. The hanger meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
QTY
  • Product Description
  • Features
  • Specifications
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This horizontal hanger is for 600A and 400A copper and 400 A aluminum I-Line busway. The hanger meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Standards : UL 857 || CSA C22.2 No 27:1994 || IEC 61439-6
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP1407014EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Installation Direction : horizontal
    • Line Rated Current : 400-400 A aluminium/copper || 600-600 A copper
  • Specifications
    • Country of Origin : United States
    • Range Of Product : I-Line
    • Product Or Component Type : hanger
