SQUARE D

Plug-in unit, Powerbus Busway, tap box, 100A, NEMA 1, 4A config

Busway Tap Box

SQDPBPTB4A100 PBPTB4A100 785901642985
1415.00 / EACH
http://schema.org/OutOfStock

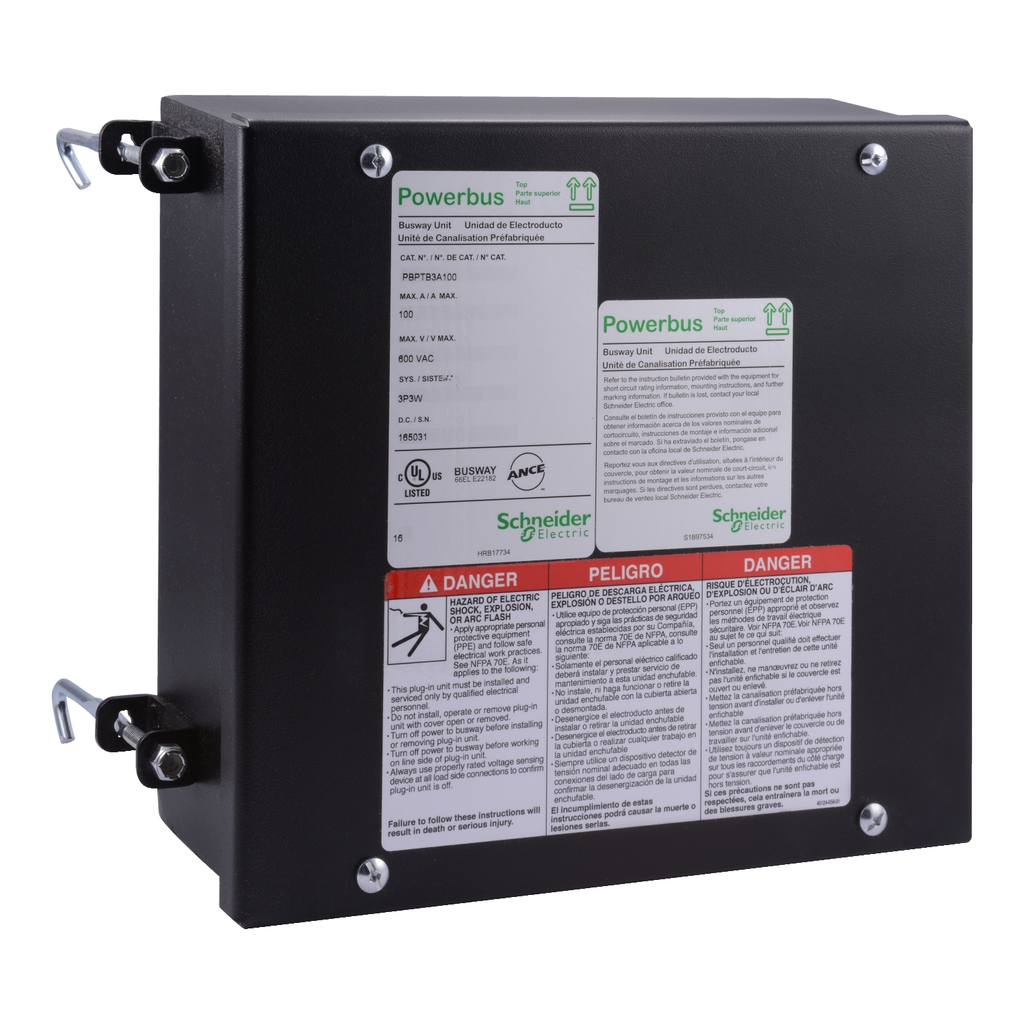

Mayer-DDS-Plug-in unit, Powerbus Busway, tap box, 100A, NEMA 1, 4A config-1
  • Country of Origin: USA
  • Enclosure Material: Aluminum
  • IsSustainable: No
  • Warranty Length: 18 mth
Powerbus busway delivers scalable and flexible overhead power distribution. Simple modularity minimizes unintended downtime. Units are available in 100A, 225A, and 400A as well as up to 600V maximum rating. Powerbus busway uses the same Plug-in Units across all busway ampacities. This unit is Plug-in unit tap box that is rated at 100A. The busbar configuration for this tap box is 4A. All busway rating are listed to UL 857 Busway Standard for Safety.
QTY
  • Product Description
  • Features
  • Specifications
Powerbus busway delivers scalable and flexible overhead power distribution. Simple modularity minimizes unintended downtime. Units are available in 100A, 225A, and 400A as well as up to 600V maximum rating. Powerbus busway uses the same Plug-in Units across all busway ampacities. This unit is Plug-in unit tap box that is rated at 100A. The busbar configuration for this tap box is 4A. All busway rating are listed to UL 857 Busway Standard for Safety.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ip Degree Of Protection : IP40
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1312018EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1312018EN
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Phase : 3 phase
    • Enclosure Material : Aluminum
    • Box Number : 4A L1 + L2 + N + L3
    • Material : silver plated copper: busbar
    • Line Rated Current : 100 A
    • Protection Type : 50 percent capacity integral ground bus
    • Wiring Configuration : 4-wire (100 percent neutral)
    • [Ue] Rated Operational Voltage : 240 V AC
    • Awg Gauge : AWG 10...AWG 2/0 1 ground || AWG 6...300 kcmil 1 phase and neutral
  • Specifications
    • Country of Origin : United States
    • Range Of Product : Powerbus
    • Product Or Component Type : tap box
