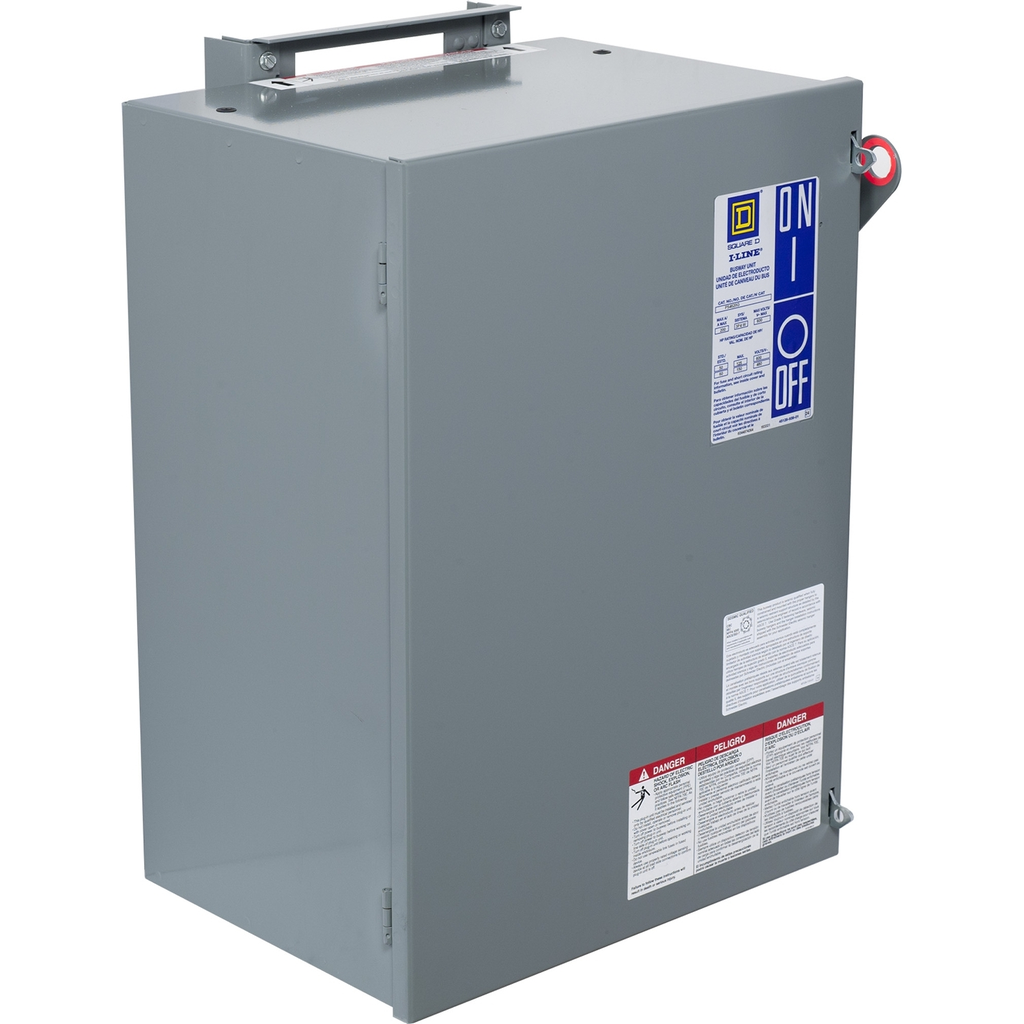

I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This fusible plug-in unit is 200A, 600VAC max, 4 pole, and 3 fuse + G. This unit uses a plug in connection and for vertical risers only. This plug-in unit accepts H, K, J or R fuses. I-Line Busway plug in units are UL listed and CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL, CSA
• Complementary Attributes
• Ue Rated Operational Voltage : 600 V AC, 347 V AC
• Ie Rated Operational Current : 200 A
• Important Information Attributes
• Persona Type Ids : LC, OM8, PB, SI
• Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : Busway & cable - LV busway
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1407016EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1911
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Busbar Description : ground
• Disconnector Device Type : fusible disconnect
• Energy Efficiency Optimized : False
• Fuse Type : H, K, J or R
• Installation Direction : vertical
• Number Of Poles : 4
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : plug-in unit
• Range Of Product : I-Line
• Returnability : No
• Sustainable Packaging : No
• Ie Rated Operational Current : 200 A
• Warranty In Months : 18
• Pep Code : ENVPEP1407016EN
• Offer Owner Code : 190788
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Circularity Profile : ENVEOLI1407016EN
• Environmental Disclosure : ENVPEP1407016EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1407016EN
• General Attributes
• Product Or Component Type : plug-in unit
• Range Of Product : I-Line
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico, United States
