Busway, I-Line, breaker, plug in unit, M-frame, 500A, 4W, 80%, 600VAC, 25kA, horizontal

BUSWAY I-LINE CIRCUIT BREAKER

SQDPTMJ36500GNH PTMJ36500GNH SQDPTMJ36500GNH
0.00 / EA
http://schema.org/OutOfStock

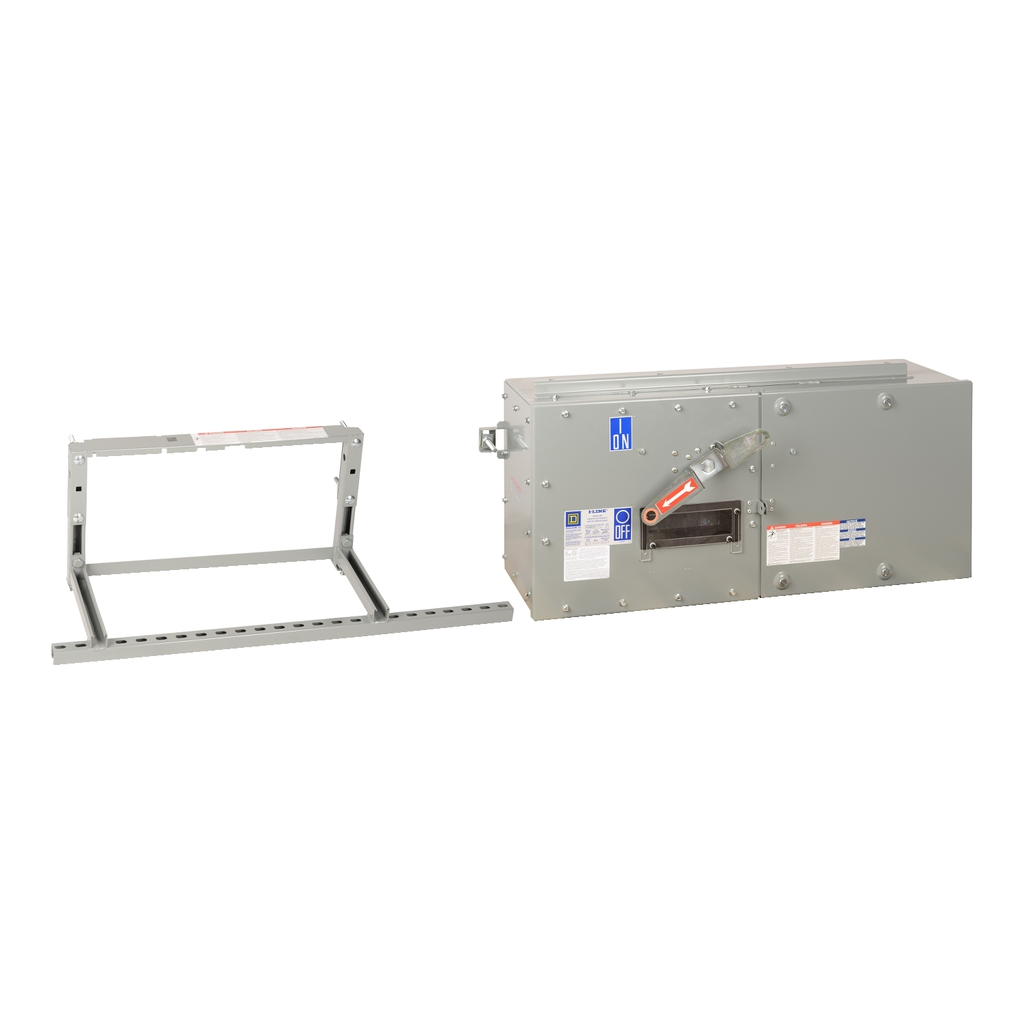

Mayer-DDS-Busway, I-Line, breaker, plug in unit, M-frame, 500A, 4W, 80%, 600VAC, 25kA, horizontal-1
  • Warranty Length: 18 mth
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options up to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations, with Aluminum or Copper conductors, for system voltages up to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This circuit breaker plug-in unit is 500A, 600VAC, 3 phase, 4 wire with M-frame breaker and thermal magnetic trip unit. Its circuit breaker has a 25kA interrupting trip rating. This unit includes an integral ground and neutral. I-Line Busway plug-in units are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options up to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations, with Aluminum or Copper conductors, for system voltages up to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This circuit breaker plug-in unit is 500A, 600VAC, 3 phase, 4 wire with M-frame breaker and thermal magnetic trip unit. Its circuit breaker has a 25kA interrupting trip rating. This unit includes an integral ground and neutral. I-Line Busway plug-in units are UL listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UE Rated Operational Voltage : 600 V AC
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB, SI
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : AWG 3/0...500 kcmil 3 phase and neutral, AWG 6...300 kcmil 4 ground
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : Busway & cable - LV busway
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Condition Of Use : horizontal installation
    • Package Weight Lbs : 128.82 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : plug-in unit
    • Range Of Product : I-Line
    • Returnability : No
    • Sustainable Packaging : No
    • Trip Unit Technology : electronic, basic, ET 1.0, LI
    • Wiring Configuration : 4-wire (integral ground bus)
    • Relationship Type : Spare part relationship
    • Pep Code : ENVPEP1410002EN
    • Product Kit Identifier : N
    • Product Manager : RYAN JONES
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1410002EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1410002EN
  • General Attributes
    • Product Or Component Type : plug-in unit
    • Range Of Product : I-Line
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
