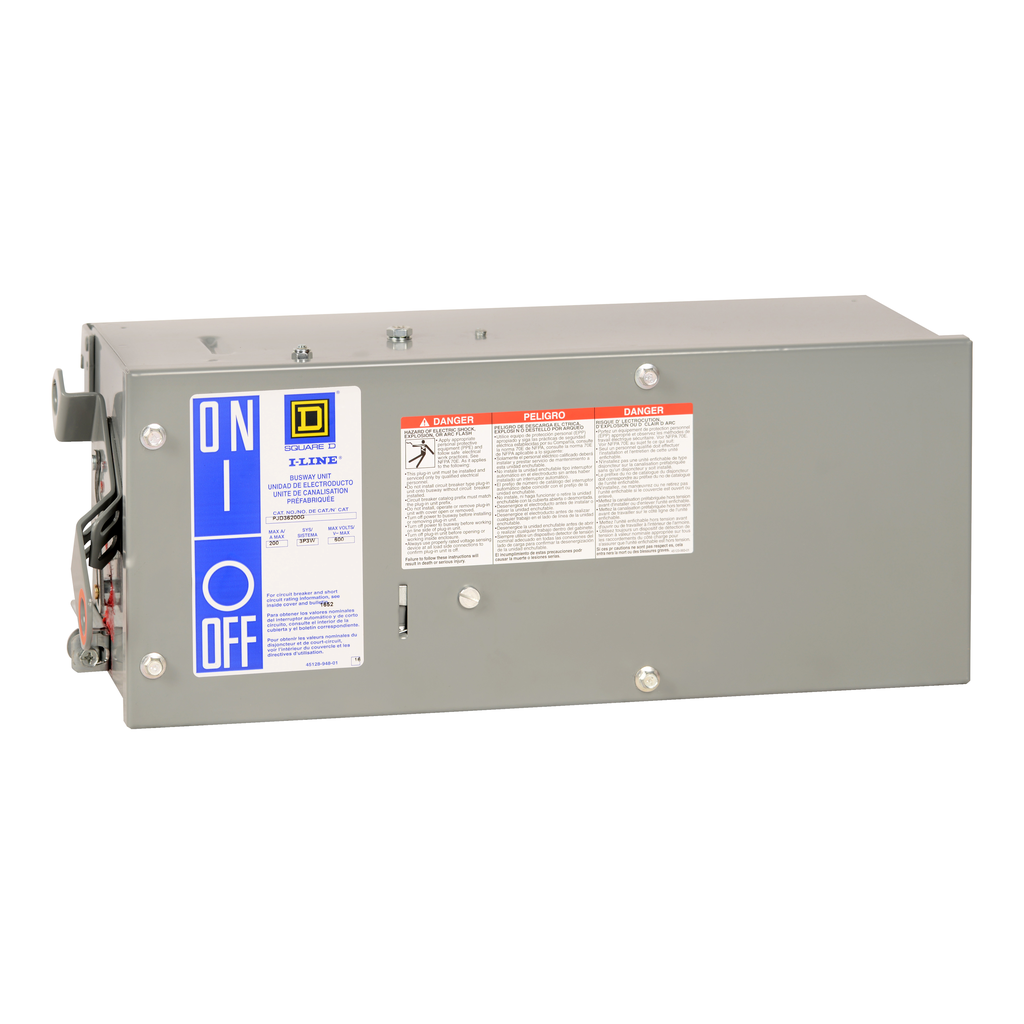

Busway I-Line Breaker Plug-in Unit, 250A, J-Frame, Micrologic 5.2A, 14kA-600V,4W

BUSWAY I-LINE BREAKER PLUG-IN

SQDPJD36250GNU43X PJD36250GNU43X SQDPJD36250GNU43X
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Busway I-Line Breaker Plug-in Unit, 250A, J-Frame, Micrologic 5.2A, 14kA-600V,4W-1
QTY
  • Specifications
  • Environment
    • Product Certifications : CSA C22.2 No 27 || UL listed file E22182
    • Standards : UL 857
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1410002EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Complementary
    • Line Rated Current : 250-250 A
    • Height : 216 mm
    • Mounting Mode : plug-in
    • Poles Description : 3P
    • Protection Type : circuit breaker
    • Wiring Configuration : 4-wire (integral ground bus)
    • Width : 551 mm
    • Depth : 232 mm
    • Phase : 3 phase
    • [Ue] Rated Operational Voltage : 600 V AC
    • Awg Gauge : AWG 6...AWG 2/0 1 ground || AWG 3/0...350 kcmil 1 phase and neutral
    • Breaking Capacity : 25 kA 240 V AC || 18 kA 480 V AC || 14 kA 600 V AC
  • Specifications
    • Width : 551 mm
    • Height : 216 mm
    • Trip Unit Technology : electronic, ammeter, MicroLogic 5.2 A, LSI
    • Range Of Product : I-Line
    • Circuit Breaker Type : J-frame
    • Product Or Component Type : plug-in unit
