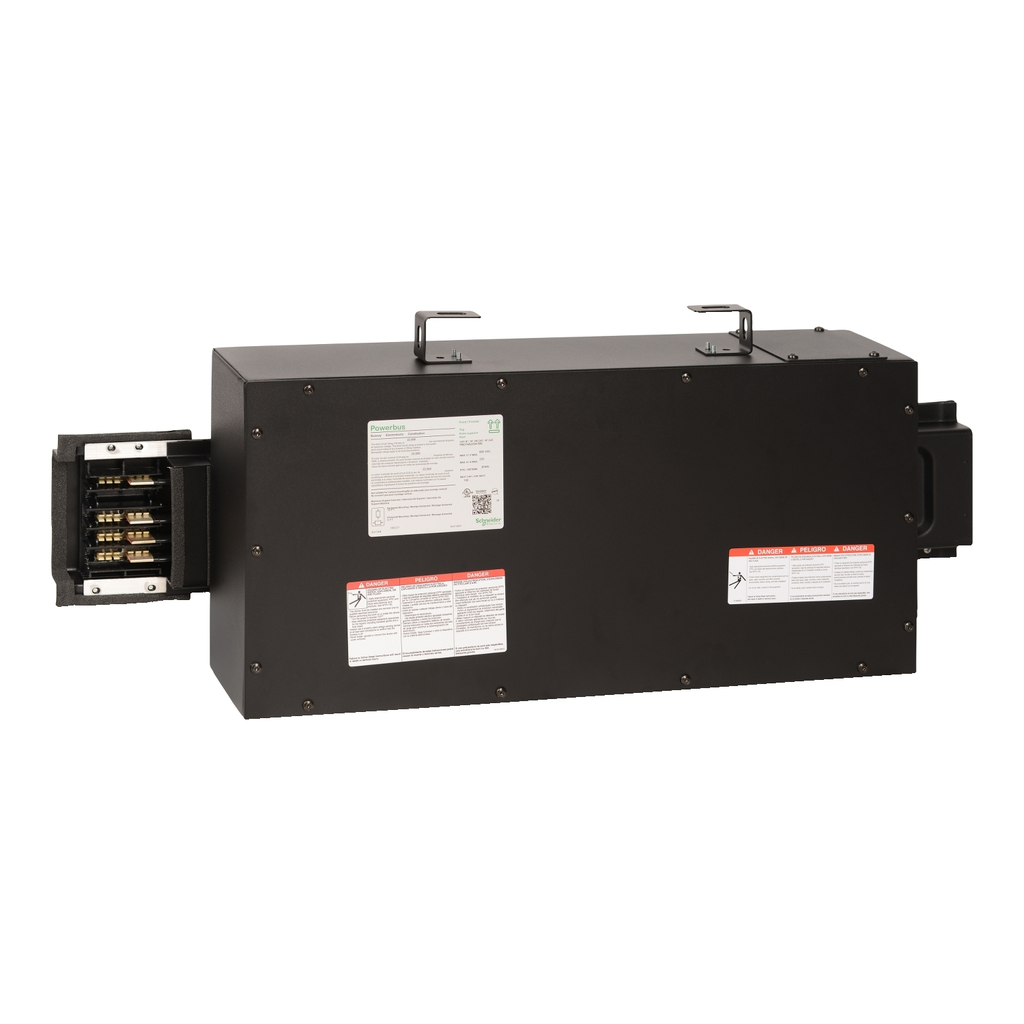

Powerbus busway delivers scalable and flexible overhead power distribution. Simple modularity minimizes unintended downtime. Units are available in 100A, 225A, and 400A as well as up to 600V maximum rating. Powerbus busway uses the same Plug-in Units across all busway ampacities. This unit is Plug-in unit tap box that is rated at 225A. The busbar configuration for this tap box is 5A. All busway rating are listed to UL 857 Busway Standard for Safety.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 225 A
• Ue Rated Operational Voltage : 600 V AC
• Important Information Attributes
• Persona Type Ids : LC, OM8, PB, SI
• Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Awg Gauge : AWG 10...AWG 2/0 1 ground, AWG 6...300 kcmil 1 phase and neutral
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-19
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : IT Power Distribution - Row Power Distribution
• Serviceability : No
• Traceability : No
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1312018EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1932
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Box Number : 4A L1 + L2 + N + L3
• Enclosure Material : painted aluminium Black
• Energy Efficiency Optimized : False
• Material : silver plated copper: busbar
• Phase : 3 phase
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : tap box
• Protection Type : 50 percent capacity integral ground bus
• Range Of Product : Powerbus
• Returnability : Yes
• Sustainable Packaging : No
• Wiring Configuration : 4-wire (100 percent neutral)
• Warranty In Months : 18
• Pep Code : ENVPEP1312018EN
• Offer Owner Code : 190788
• Pn : 1
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Circularity Profile : ENVEOLI1312018EN
• Environmental Disclosure : ENVPEP1312018EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP40
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1312018EN
• General Attributes
• Phase : 3 phase
• Product Or Component Type : tap box
• Range Of Product : Powerbus
• Specifications
• Country of Origin : United States
