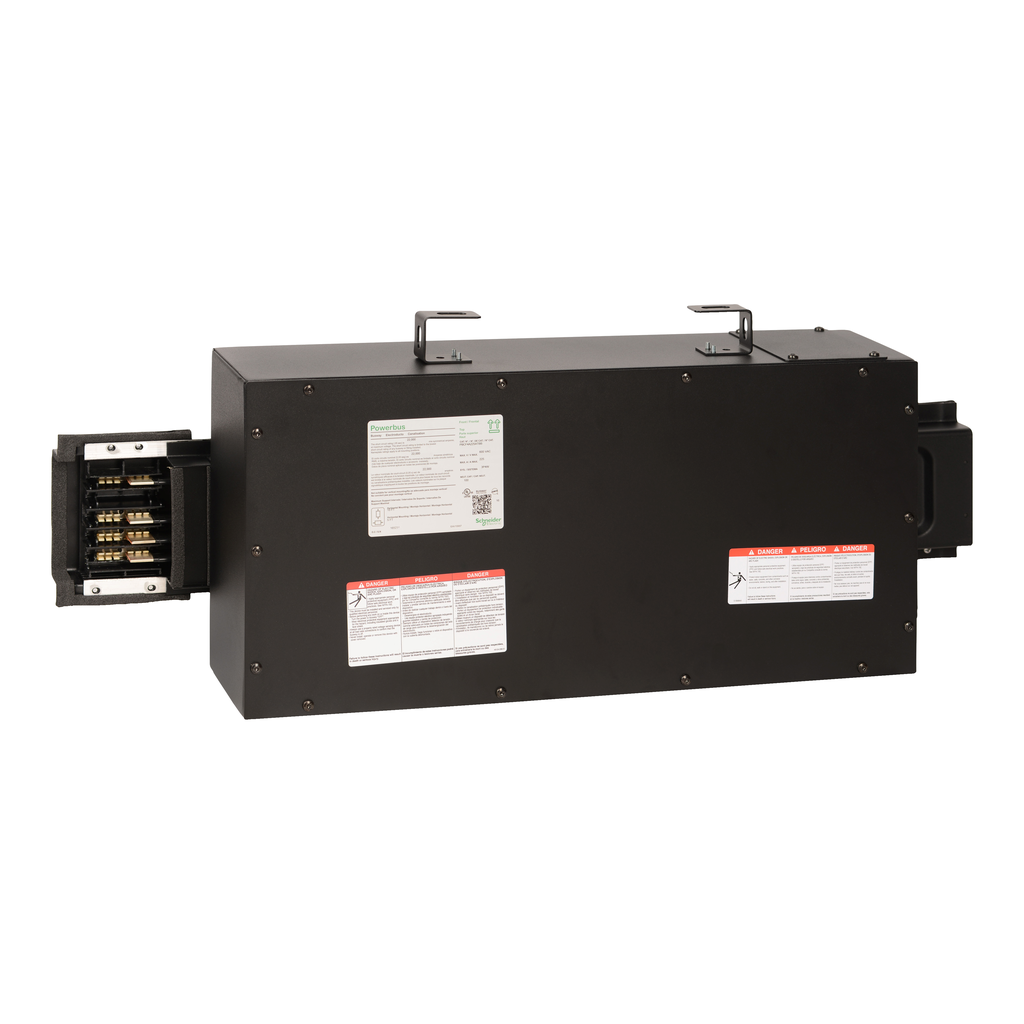

BUSWAY TAP BOX 100A 600V 3PH4W 5A CONFIG

BUSWAY TAP BOX 100A 600V 3PH4W

SQDPBCF5A100ATBB PBCF5A100ATBB SQDPBCF5A100ATBB
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-BUSWAY TAP BOX 100A 600V 3PH4W 5A CONFIG-1
  • Enclosure Material: Painted Aluminum
  • Line Rated Current: 100 A
  • Material: Silver Plated Copper: Busbar
  • Number of Phases: 3
Powerbus busway delivers scalable and flexible overhead power distribution. Simple modularity minimizes unintended downtime. Units are available in 100A, 225A, and 400A as well as up to 600V maximum rating. Powerbus busway uses the same Plug-in Units across all busway ampacities. This unit is Plug-in unit tap box that is rated at 100A. The busbar configuration for this tap box is 5A. All busway rating are listed to UL 857 Busway Standard for Safety.
QTY
  • Specifications
  • Specifications
    • Range Of Product : Powerbus
    • Product Or Component Type : tap box
  • Complementary
    • Enclosure Material : painted aluminium Black
    • Box Number : 5A L1 + IG + L2 + N + L3
    • Material : silver plated copper: busbar
    • Line Rated Current : 100 A
    • Protection Type : 50 percent capacity integral ground bus
    • Wiring Configuration : 4-wire (isolated ground and 100 percent neutral)
    • Phase : 3 phase
    • [Ue] Rated Operational Voltage : 600 V AC
    • Awg Gauge : AWG 10...AWG 2/0 1 ground || AWG 6...300 kcmil 1 phase and neutral
  • Environment
    • Ip Degree Of Protection : IP40
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI1312018EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1312018EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
