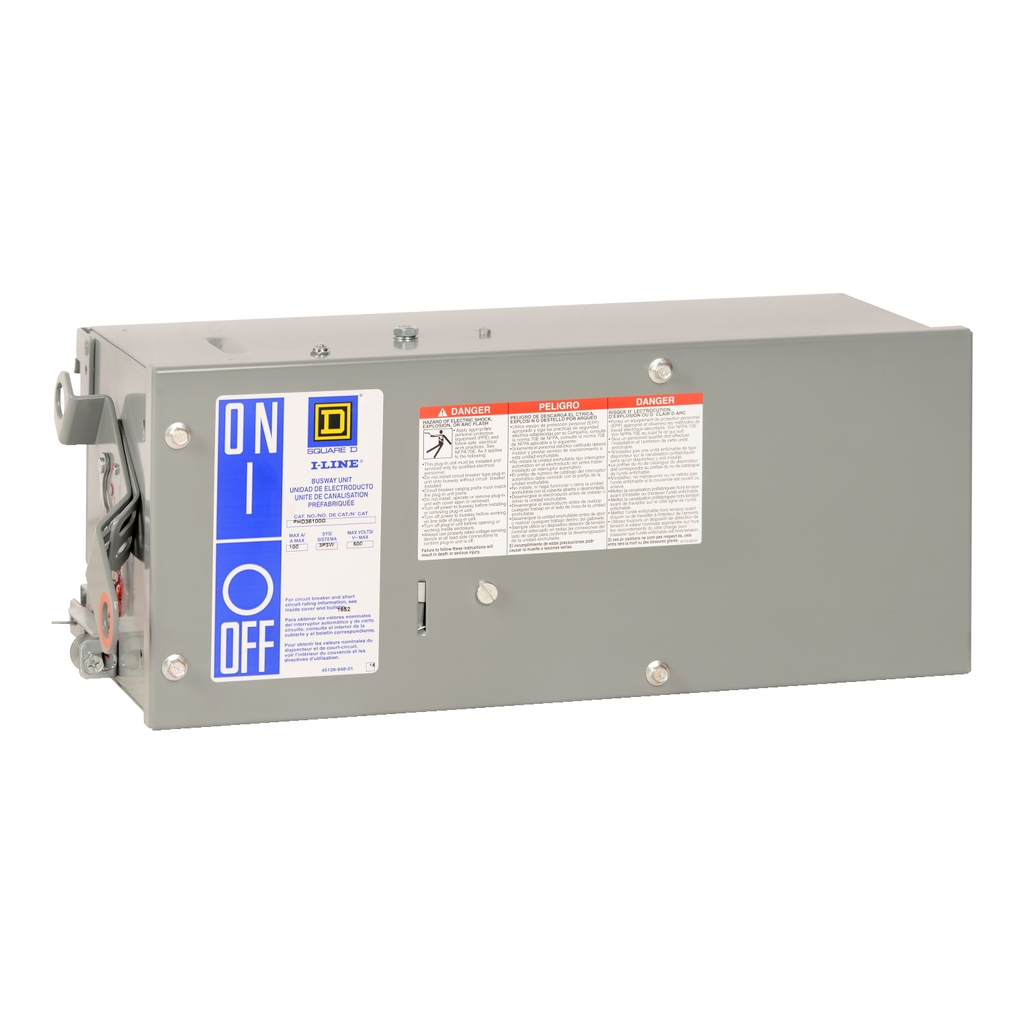

Plug-in unit, I-Line Busway, H-frame, 100A, 3 phase, 4 wire, 600VAC, 14kA, ground, neutral

BUSWAY CB PLUG-IN, 100A, H FRA

SQDPHD36100GN PHD36100GN 785901565710
3742.66 / EA
http://schema.org/OutOfStock
  • Fuse Type: H
  • Module Type: H-Frame
  • Warranty Length: 18 mth
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This circuit breaker plug-in unit is 100A, 600VAC, 3 phase, 4 wire with H-frame breaker. Its circuit breaker has a 14kA interrupting trip rating. This unit includes a ground and neutral. I-Line Busway plug in units are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This circuit breaker plug-in unit is 100A, 600VAC, 3 phase, 4 wire with H-frame breaker. Its circuit breaker has a 14kA interrupting trip rating. This unit includes a ground and neutral. I-Line Busway plug in units are UL listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || UL
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1410002EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • [Ue] Rated Operational Voltage : 600 V AC 50/60 Hz || 277/480 V AC 50/60 Hz
    • Breaking Capacity Code : D
    • Phase : 3 phase
    • Disconnector Device Type : thermal magnetic circuit breaker 100 A 14 kA 600 V || thermal magnetic circuit breaker 100 A 18 kA 480 V || thermal magnetic circuit breaker 100 A 25 kA 240 V
    • Busbar Description : ground
    • Level Or Class : class 5600
    • Fuse Type : H
    • Wiring Configuration : 4-wire
  • Specifications
    • Module Type : H-Frame
    • Range Of Product : I-Line
    • Product Or Component Type : plug-in unit
