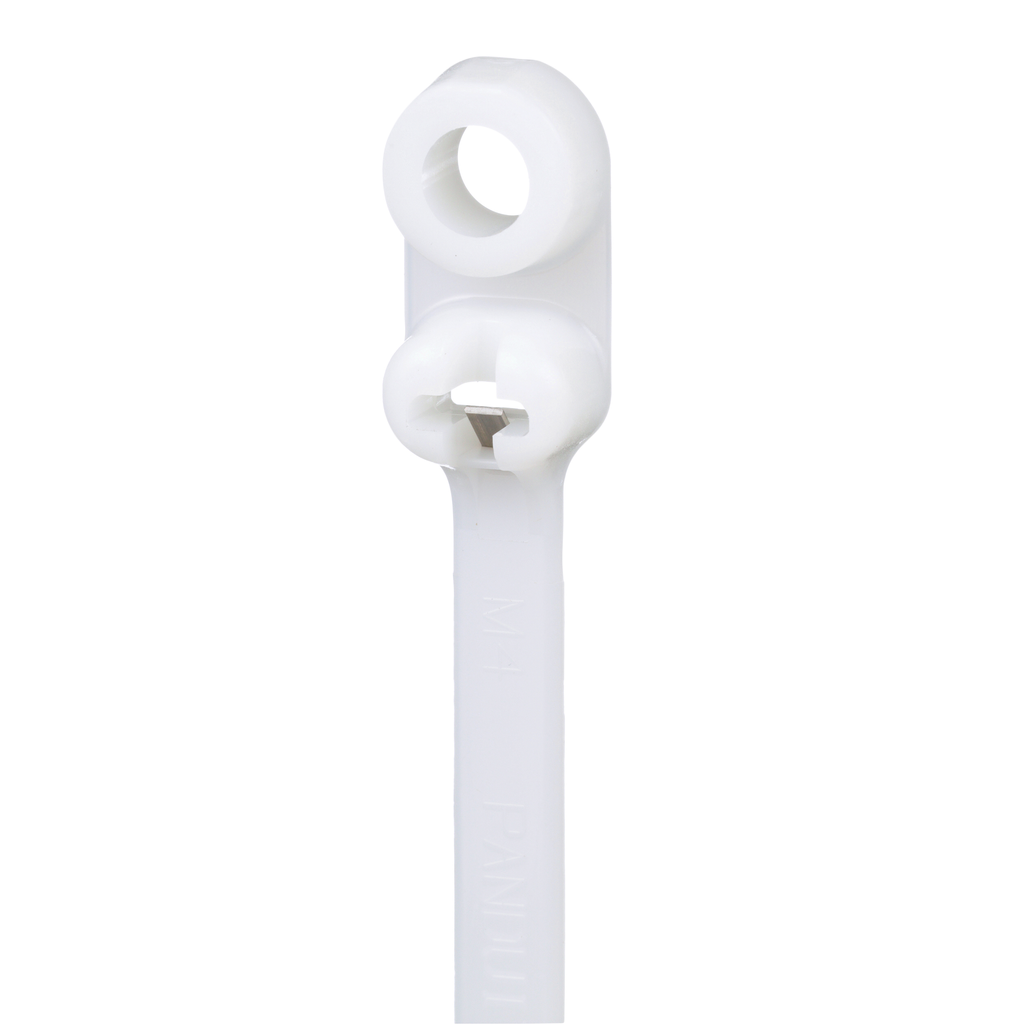

The BC2S-S10-C Dome-Top® barb ty clamp tie, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Standard cross section, 8.5” (261mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.

• Standards and Certifications
• Standards Met: UL 62275 Compliant (Type 2, 21), UL Listed (File #E56854)
• Prop 65
• No

• Specifications
• Any Reason Not to Sell : N
• Product Segment : IEI
• Mounting Hole Diameter (In.) : 0.2
• Overall Length (mm) : 216
• Minimum Installation Temperature (°F) : -4
• Application : Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
• Sub Brand : Dome-Top®
• Color : Natural
• Mounting Hole Width (mm) : 10.2
• Material : Nylon 6.6
• Maximum Bundle Diameter (mm) : 51
• Screw Size : #10
• Maximum Bundle Diameter (In.) : 2
• Maximum Operating Temperature (°F) : 185
• Body Thickness (In.) : 0.052
• Overall Length (In.) : 8.5
• Minimum Installation Temperature (°C) : -20
• Body Thickness (mm) : 1.3
• Minimum Bundle Diameter (mm) : 1.5
• Body Width (mm) : 4.7
• Minimum Operating Temperature (°F) : -76
• Minimum Loop Tensile Strength (lb) : 50
• Minimum Operating Temperature (°C) : -60
• Mounting Hole Diameter (mm) : 5.1
• Minimum Loop Tensile Strength (N) : 222
• Product Type : Locking Clamp Tie
• Maximum Operating Temperature (°C) : 85
• Mounting Hole Width (In.) : 0.4
• Body Width (In.) : 0.185
• For Use With : GTS-E, GS2B-E, GTH-E, GS4H-E
• Environment : Indoor
• Minimum Bundle Diameter (In.) : 0.06
• Packaging Details
• UPC : 07498352314
• GTIN Package : 00074983523146
• Standard Package Volume Ft3 : 0.0321
• Standard Package Weight Pounds : 0.4409
• Std Package Height In : 1.8
• Std Package Height MM : 45.72
• Std Package Length In : 11.65
• Std Package Length MM : 295.91
• Std Package Width In : 5.65
• Std Package Width MM : 143.51
• Std. Pkg. UOM : Piece
• UOM EA PK : PK
• Std. Pkg. Qty. : 100
• GTIN Carton : 50074983523141
• Standard Carton Volume Ft3 : 0.3207
• Standard Carton Weight Pounds : 4.4092
• Std Carton Height In : 6.25
• Std Carton Height MM : 158.75
• Std Carton Length In : 10.65
• Std Carton Length MM : 270.51
• Std Carton Width In : 8.3
• Std Carton Width MM : 210.82
• Std Ctn Qty : 1000
• Min. Order UOM : Piece
• Country of Origin 2Digit : CR
• EAN : 00074983523146
• REACH Status : N
• California Pro65 Cancer : No
• ARRA Compliant : Y
• Mercury Content Indicator : N
• Lead Content Indicator : N
• Restricted Use of Hazardous Substances : N
• Hazardous Material Flag : N
• Min Order Qty : 1,000.0000
• Pallet Quantity : 168,000
• Pallet Volume : 53.880653
• Pallet Weight : 740.7456
• RoHS Compliant : Compliant
