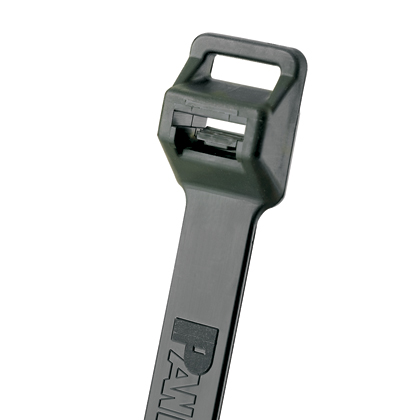

Cable Tie, Black, UV PA6.6, 20.1"L (511 mm), 250lb, PK100

CABLE TIE X-HVY 20.1IN BLK

PANPLT5EHC0 PLT5EH-C0 074983541133
2.47 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cable Tie, Black, UV PA6.6, 20.1"L (511 mm), 250lb, PK100-1
  • Body Thickness: 0.075 in, 1.9 mm
  • Body Width: 0.5 in, 12.7 mm
  • Environment: Indoor, Outdoor
  • Material: Nylon
  • Max. Bundle Diameter: 5 in
  • Max. Operating Temperature: 185 °F, 85 °C
  • Min. Operating Temperature: -60 °C, -76 °F
  • Overall Length: 20.1 in, 511 mm
  • Tensile Strength: 1112 lb
  • Type: Premium Cable Tie
The PLT5EH-C0 cable tie provides secure, extra-high-strength bundling for large indoor/outdoor bundles requiring weather resistance. Extra-heavy cross section, 20.1 in (511mm) long with 250 lb (1,112 N) minimum loop tensile strength and a 0.5–5.0 in (12.7–127mm) bundle diameter range. It is black UV- and weather-resistant Nylon 6.6 for consistent routing. Operating range -76 to 185°F (-60 to 85°C). Use with GS4EH-E and ST3EH tools for fast installation and tensioning. Std. pkg. qty. 100.
QTY
  • Product Description
  • Features
  • Specifications
The PLT5EH-C0 cable tie provides secure, extra-high-strength bundling for large indoor/outdoor bundles requiring weather resistance. Extra-heavy cross section, 20.1 in (511mm) long with 250 lb (1,112 N) minimum loop tensile strength and a 0.5–5.0 in (12.7–127mm) bundle diameter range. It is black UV- and weather-resistant Nylon 6.6 for consistent routing. Operating range -76 to 185°F (-60 to 85°C). Use with GS4EH-E and ST3EH tools for fast installation and tensioning. Std. pkg. qty. 100.
  • Standards and Certifications
    • Standards Met: UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), CSA Certified, RoHS Compliant
  • Prop 65
    • No
  • Packaging Details
    • UPC : 07498354113
    • GTIN Package : 00074983541133
    • Standard Package Volume Ft3 : 0.2163
    • Standard Package Weight Pounds : 3.5000
    • Std Package Height In : 3.15
    • Std Package Height MM : 80.01
    • Std Package Length In : 24.6
    • Std Package Length MM : 624.84
    • Std Package Width In : 9.1
    • Std Package Width MM : 231.14
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 100
    • GTIN Carton : 50074983541138
    • Standard Carton Volume Ft3 : 2.1626
    • Standard Carton Weight Pounds : 35.0000
    • Std Carton Height In : 15.75
    • Std Carton Height MM : 400.05
    • Std Carton Length In : 23.25
    • Std Carton Length MM : 590.55
    • Std Carton Width In : 10.45
    • Std Carton Width MM : 265.43
    • Std Ctn Qty : 1000
    • Min. Order UOM : Piece
    • EAN : 00074983541133
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 500.0000
    • Pallet Quantity : 24,000
    • Pallet Volume : 51.901663
    • Pallet Weight : 840.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Country of Origin : Costa Rica, Malaysia, United States
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Body Width (mm) : 12.7
    • Overall Length (mm) : 511
    • Minimum Loop Tensile Strength (lb) : 250
    • Resistance Properties : UV-Resistant, Weather-Resistant
    • Minimum Loop Tensile Strength (N) : 1112
    • Maximum Operating Temperature (°F) : 185
    • Minimum Installation Temperature (°C) : -20
    • Maximum Operating Temperature (°C) : 85
    • Minimum Bundle Diameter (mm) : 12.7
    • Environment : Indoor/Outdoor
    • Minimum Bundle Diameter (In.) : 0.5
    • Maximum Bundle Diameter (In.) : 5
    • Body Thickness (In.) : 0.075
    • Minimum Operating Temperature (°C) : -60
    • Color : Black
    • Minimum Installation Temperature (°F) : -4
    • Body Width (In.) : 0.5
    • Product Type : Premium Cable Tie
    • Material : Nylon 6.6
    • For Use With : GS4EH-E, ST3EH
    • Maximum Bundle Diameter (mm) : 127
    • Body Thickness (mm) : 1.9
    • Minimum Operating Temperature (°F) : -76
    • Overall Length (In.) : 20.1
    • Material Properties : Impact-Modified
    • Material Description : Nylon 6.6 (UV-Resistant, Weather-Resistant)
    • Flammability Rating : UL 94 V-2
    • Air Handling Space : None
