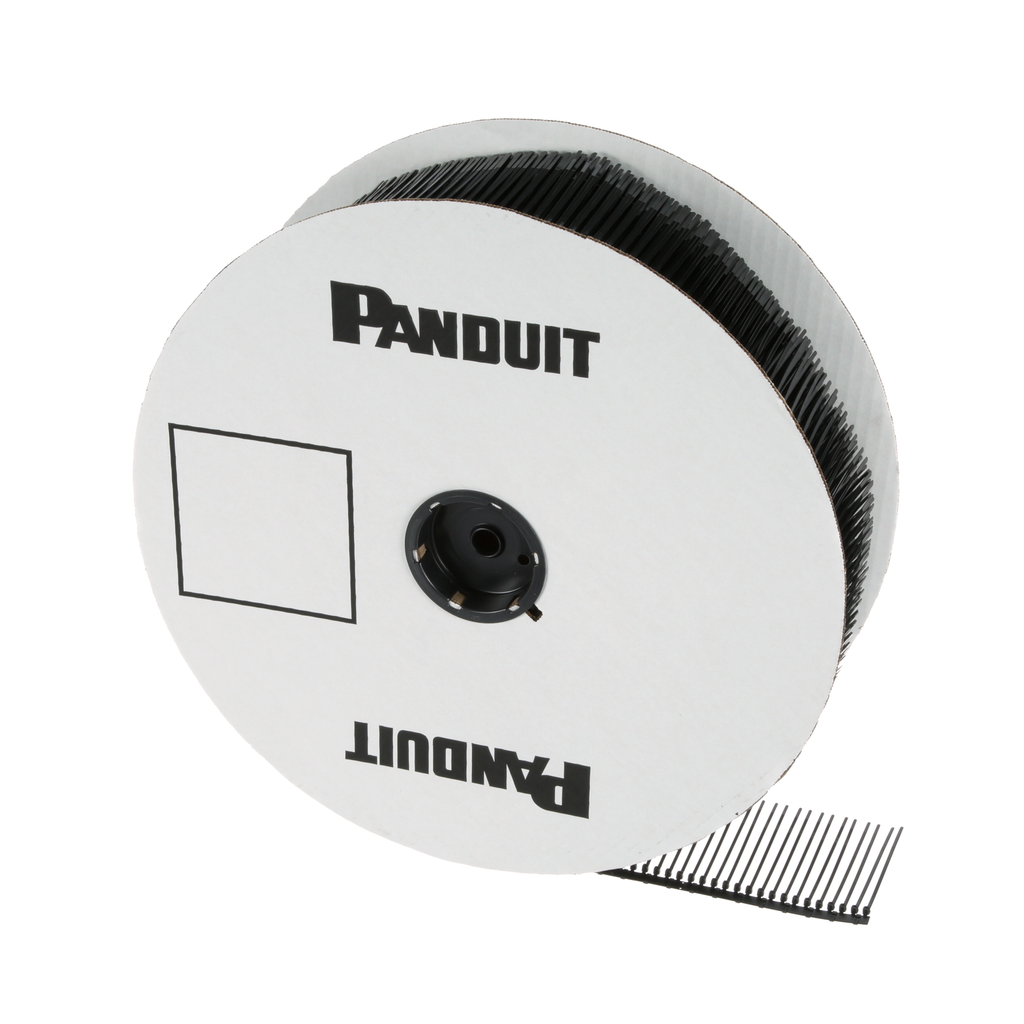

PLT1M-XMR30 Reel-Fed Cable Tie, Black, High Heat PA 6.6, PK5000, 4"L

TYRAPS PER ROLL 5000CT

PANPLT1MXMR30 PLT1M-XMR30 074983539901
0.08 / EA
http://schema.org/OutOfStock
Mayer-DDS-PLT1M-XMR30 Reel-Fed Cable Tie, Black, High Heat PA 6.6, PK5000, 4"L-1
  • Body Thickness: 0.036 in, 0.9 mm
  • Body Width: 0.1 in, 2.5 mm
  • Country of Origin: CR, MY
  • Environment: Indoor
  • Material: Nylon
  • Max. Bundle Diameter: 0.82 in
  • Max. Operating Temperature: 115 °C, 239 °F
  • Min. Operating Temperature: -60 °C, -76 °F
  • Overall Length: 102 mm, 4 in
  • Tensile Strength: 80 lb
  • Type: Reel-Fed Cable Tie
Panduit PLT1M-XMR30 continuously molded cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Miniature cross section, 4.0” (102mm) cable ties for use with PAT1M4.0 system. Made of Heat Stabilized Nylon 6.6, are black in color and come 5,000 ties per reel.
QTY
  • Product Description
  • Features
  • Specifications
Panduit PLT1M-XMR30 continuously molded cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Miniature cross section, 4.0” (102mm) cable ties for use with PAT1M4.0 system. Made of Heat Stabilized Nylon 6.6, are black in color and come 5,000 ties per reel.
  • Standards and Certifications
    • Standards Met: UL Listed, UL Recognized, CSA Certified, CE Compliant, RoHS Compliant
  • Prop 65
    • No
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Minimum Loop Tensile Strength (lb) : 18
    • Maximum Operating Temperature (°F) : 239
    • Body Thickness (In.) : 0.036
    • Product Type : Reel-Fed Cable Tie
    • Body Thickness (mm) : 0.9
    • Minimum Bundle Diameter (In.) : 0.02
    • Color : Black
    • Material : Nylon 6.6
    • Maximum Bundle Diameter (mm) : 20.8
    • For Use With : PAT1M4.0 System
    • Minimum Operating Temperature (°F) : -76
    • Overall Length (In.) : 4
    • Environment : Indoor
    • Minimum Loop Tensile Strength (N) : 80
    • Number of Ties per Reel : 5000
    • Body Width (mm) : 2.5
    • Maximum Operating Temperature (°C) : 115
    • Maximum Bundle Diameter (In.) : 0.82
    • Application : Reel-fed cable ties for automated tooling
    • Body Width (In.) : 0.1
    • Minimum Operating Temperature (°C) : -60
    • Minimum Bundle Diameter (mm) : 0.5
    • Overall Length (mm) : 102
    • Resistance Properties : Heat-Resistant
    • Material Properties : Heat-Stabilized
  • Packaging Details
    • UPC : 07498353990
    • GTIN Package : 00074983539901
    • Standard Package Volume Ft3 : 1.2280
    • Standard Package Weight Pounds : 6.8895
    • Std Package Height In : 6.2
    • Std Package Height MM : 157.48
    • Std Package Length In : 18.5
    • Std Package Length MM : 469.9
    • Std Package Width In : 18.5
    • Std Package Width MM : 469.9
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 5000
    • GTIN Carton : 50074983539906
    • Standard Carton Volume Ft3 : 2.4560
    • Standard Carton Weight Pounds : 13.7790
    • Std Carton Height In : 12.8
    • Std Carton Height MM : 325.12
    • Std Carton Length In : 18.75
    • Std Carton Length MM : 476.25
    • Std Carton Width In : 18.55
    • Std Carton Width MM : 471.17
    • Std Ctn Qty : 10000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : CR,MY
    • EAN : 00074983539901
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 10,000.0000
    • Pallet Quantity : 160,000
    • Pallet Volume : 39.295370
    • Pallet Weight : 220.4640
    • RoHS Compliant : Compliant
