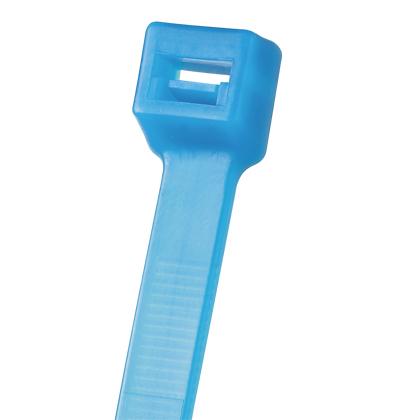

Pan-Ty® PLT1M-M76 Cable Tie, Aqua, Tefzel, UV, High Heat, 4"L, 18lb, PK1000

CABLE TIE MINI 4.0IN AQU

PANPLT1MM76 PLT1M-M76 74983541430
1.02 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Ty® PLT1M-M76 Cable Tie, Aqua, Tefzel, UV, High Heat, 4"L, 18lb, PK1000-1
  • Body Thickness: 0.043 in, 1.1 mm
  • Body Width: 0.098 in, 2.5 mm
  • Country of Origin: Costa Rica
  • Environment: Indoor, Outdoor
  • Max. Bundle Diameter: 0.87 in
  • Max. Operating Temperature: 170 °C, 338 °F
  • Min. Operating Temperature: -60 °C, -76 °F
  • Overall Length: 102 mm, 4 in
  • Tensile Strength: 80 lb
  • Type: Premium Cable Tie
Panduit PLT1M-M76 Tefzel locking cable ties are designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. Low smoke density and excellent flammability rating of UL 94V-0. Miniature cross section, 4.0” (102mm) length. For indoor or outdoor use, made of Tefzel, are a distinctive aqua blue in color and come in packages of 1000.
QTY
  • Product Description
  • Features
  • Specifications
Panduit PLT1M-M76 Tefzel locking cable ties are designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. Low smoke density and excellent flammability rating of UL 94V-0. Miniature cross section, 4.0” (102mm) length. For indoor or outdoor use, made of Tefzel, are a distinctive aqua blue in color and come in packages of 1000.
  • Standards and Certifications
    • Standards Met: UL Recognized (File #E56854, UL 62275 Compliant (Type 1, 11), RoHS Compliant
  • Prop 65
    • No
  • Packaging Details
    • UPC : 07498354143
    • GTIN Package : 00074983541430
    • Standard Package Volume Ft3 : 0.0637
    • Standard Package Weight Pounds : 1.2511
    • Std Package Height In : 2.65
    • Std Package Height MM : 67.31
    • Std Package Length In : 10.2
    • Std Package Length MM : 259.08
    • Std Package Width In : 6.7
    • Std Package Width MM : 170.18
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 1000
    • GTIN Carton : 50074983541435
    • Standard Carton Volume Ft3 : 1.5932
    • Standard Carton Weight Pounds : 31.2780
    • Std Carton Height In : 11.25
    • Std Carton Height MM : 285.75
    • Std Carton Length In : 23.3
    • Std Carton Length MM : 591.82
    • Std Carton Width In : 10.45
    • Std Carton Width MM : 265.43
    • Std Ctn Qty : 25000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : CR
    • EAN : 00074983541430
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000.0000
    • Pallet Quantity : 800,000
    • Pallet Volume : 50.983333
    • Pallet Weight : 1,000.8960
    • RoHS Compliant : Compliant
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Body Thickness (In.) : 0.043
    • Body Thickness (mm) : 1.1
    • Maximum Bundle Diameter (mm) : 22
    • For Use With : GTS-E, GS2B-E, PTS, PPTS, STS2
    • Resistance Properties : Chemical-Resistant, UV-Resistant, Weather-Resistant
    • Minimum Bundle Diameter (mm) : 3.3
    • Body Width (mm) : 2.5
    • Color : Aqua
    • Material : ETFE
    • Minimum Installation Temperature (°F) : -4
    • Minimum Bundle Diameter (In.) : 0.13
    • Product Type : Premium Cable Tie
    • Maximum Operating Temperature (°C) : 170
    • Minimum Installation Temperature (°C) : -20
    • Overall Length (mm) : 102
    • Overall Length (In.) : 4
    • Minimum Loop Tensile Strength (N) : 80
    • Minimum Loop Tensile Strength (lb) : 18
    • Military Cross Reference Number : MS3367-4-15
    • Body Width (In.) : 0.098
    • Maximum Operating Temperature (°F) : 338
    • Minimum Operating Temperature (°F) : -76
    • Environment : Indoor/Outdoor
    • Minimum Operating Temperature (°C) : -60
    • Maximum Bundle Diameter (In.) : 0.87
    • Material Description : ETFE (Chemical-Resistant, UV-Resistant, Weather-Resistant)
    • Label Dimensions (In.) : W x H
