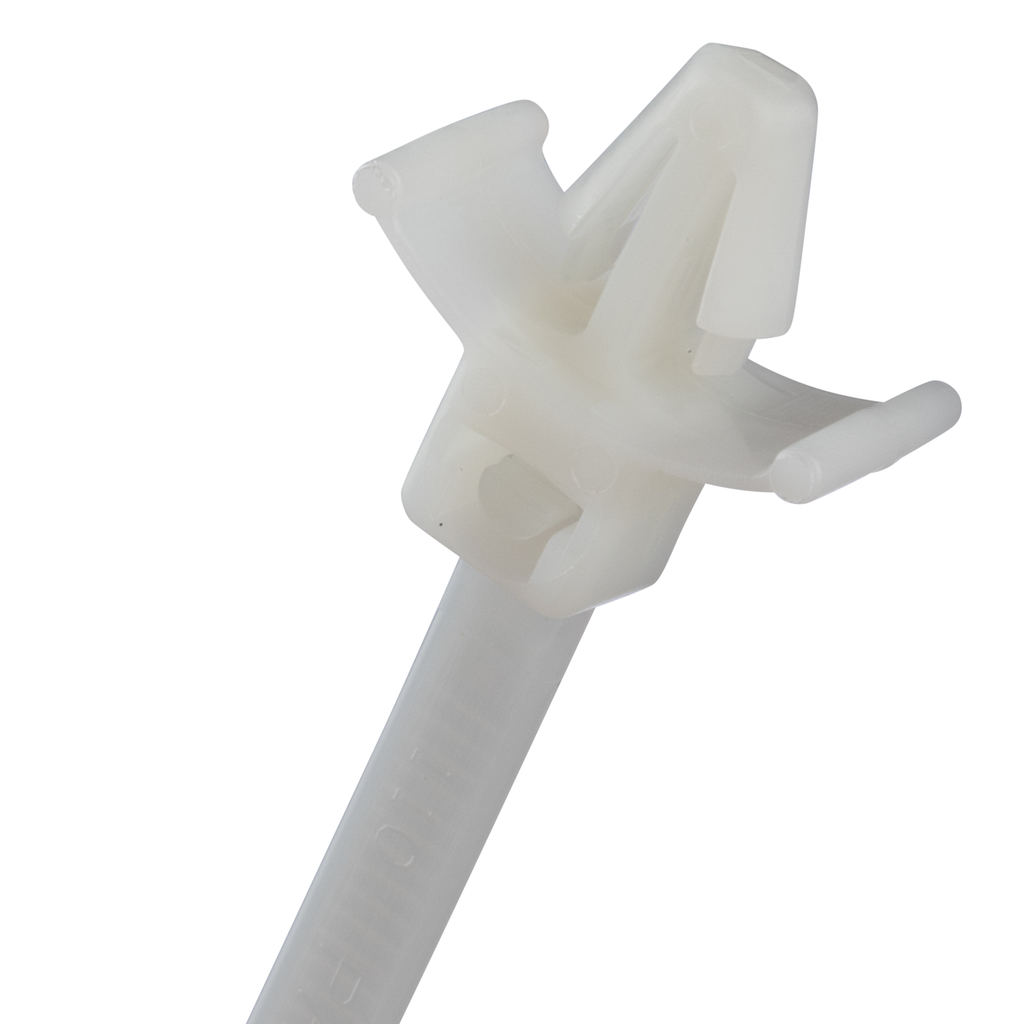

Pan-Ty® PLWP2SA-D Wing Push Mount Cable Tie, PA6.6, 7.7"L, 50lb, PK500

WING PUSH MOUNT TIE 7.7IN NAT

PANPLWP2SAD PLWP2SA-D 74983543311
0.42 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Ty® PLWP2SA-D Wing Push Mount Cable Tie, PA6.6, 7.7"L, 50lb, PK500-1
  • Body Thickness: 0.052 in, 1.32 mm
  • Body Width: 0.19 in, 4.8 mm
  • Country of Origin: Costa Rica
  • Environment: Indoor
  • IsSustainable: No
  • Material: Nylon
  • Max. Bundle Diameter: 1.75 in
  • Max. Operating Temperature: 185 °F, 85 °C
  • Min. Operating Temperature: -60 °C, -76 °F
  • Overall Length: 196 mm, 7.7 in
  • Tensile Strength: 222 lb
  • Type: Premium Cable Tie
Pan-Ty® Locking Wing Mount Push Ties use an all-in-one design to attach bundles to another surface using a stable, secure, rattle-free connection. Plus, with Nylon 6.6 material, it's ideal for general indoor environments. Standard cross section, 7.7in, Tensile Strength: 222, Natural, 500pc.
QTY
  • Product Description
  • Specifications
Pan-Ty® Locking Wing Mount Push Ties use an all-in-one design to attach bundles to another surface using a stable, secure, rattle-free connection. Plus, with Nylon 6.6 material, it's ideal for general indoor environments. Standard cross section, 7.7in, Tensile Strength: 222, Natural, 500pc.
  • Specifications
    • Product Segment : IEI
    • Material Description : Nylon 6.6 ()
    • Product Type : Premium Cable Tie
    • Color : Natural
    • Environment : Indoor
    • Material : Nylon 6.6
    • Overall Length (In.) : 7.7
    • Overall Length (mm) : 196
    • Body Width (mm) : 4.8
    • Body Width (In.) : 0.19
    • Body Thickness (In.) : 0.052
    • Body Thickness (mm) : 1.32
    • Maximum Bundle Diameter (In.) : 1.75
    • Maximum Bundle Diameter (mm) : 44.4
    • Minimum Bundle Diameter (mm) : 1.5
    • Minimum Bundle Diameter (In.) : 0.06
    • Minimum Loop Tensile Strength (N) : 222
    • Minimum Loop Tensile Strength (lb) : 50
    • Maximum Operating Temperature (°F) : 185
    • Maximum Operating Temperature (°C) : 85
    • Minimum Operating Temperature (°F) : -76
    • Minimum Operating Temperature (°C) : -60
    • Minimum Installation Temperature (°F) : -4
    • Minimum Installation Temperature (°C) : -20
    • Standards Met : CSA Certified, UL Recognized (File #E56854), RoHS Compliant
    • For Use With : GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2
    • Application : General
  • Packaging Details
    • UPC : 07498354331
    • GTIN Package : 00074983543311
    • Standard Package Volume Ft3 : 0.2559
    • Standard Package Weight Pounds : 2.2000
    • Std Package Height In : 4.1
    • Std Package Height MM : 104.14
    • Std Package Length In : 12.1
    • Std Package Length MM : 307.34
    • Std Package Width In : 10.2
    • Std Package Width MM : 259.08
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 500
    • GTIN Carton : 50074983543316
    • Standard Carton Volume Ft3 : 2.5587
    • Standard Carton Weight Pounds : 22.0000
    • Std Carton Height In : 18.41
    • Std Carton Height MM : 467.614
    • Std Carton Length In : 22.96
    • Std Carton Length MM : 583.184
    • Std Carton Width In : 10.46
    • Std Carton Width MM : 265.684
    • Std Ctn Qty : 5000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : CR
    • RoHS Compliant : Compliant
    • EAN : 00074983543311
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000.0000
    • Pallet Quantity : 80,000
    • Pallet Volume : 40.938658
    • Pallet Weight : 352.0000
