Standard

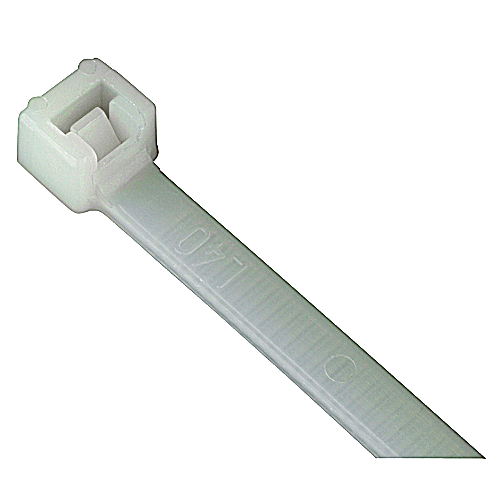

CABLE TIE 14IN 50LB NATURAL

TNBL14509C L14509C TNBL14509C
0.37 / EA
http://schema.org/OutOfStock
Mayer-DDS-Standard-1
  • Cable Color: Natural
  • Length: 14.1 in
  • Material: Nylon
  • Max. Bundle Diameter: 4 in
  • Nominal Length: 14 in
  • Package Type: Standard
  • Package Width: .187 in
  • Temperature Rating: -40 to 185 °F
Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 372.24mm (14.655 Inches), Width of 4.73mm (0.186 Inches), Thickness of 1.35mm (0.053 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds)
QTY
  • Product Description
  • Specifications
Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 372.24mm (14.655 Inches), Width of 4.73mm (0.186 Inches), Thickness of 1.35mm (0.053 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds)
  • Dimension Information
    • Max. Wire Bundle Diameter (inches) : 4
    • Length (inches) : 14.1
    • Min. Wire Bundle Diameter (inches) : 1/16
    • Width (inches) : 0.187
    • Nominal Length (inches) : 14
  • Certifications
    • RoHS Compliance : Yes
  • Packaging
    • Package Height : 10.6
    • Package Width : 13.3
    • Inner Package : 100
    • Outer Package : 5000
    • Order Multiple : 100
    • Package Type : Standard
    • T&B Sold in UOM : Each
    • Package Length : 17.1
    • T&B Weight Per UOM : 5 lbs. per 1000
  • Tooling
    • Application Tools : ERG50, QC-100, L-200, L-400-C
  • General
    • Material : Nylon 6.6
    • Color : Natural
  • Specifications
    • Flammability Rating : UL 94 V-2
    • Temperature Rating : -40°F to 185°F
    • Military Standard Part No. : MS-3367-2-9
