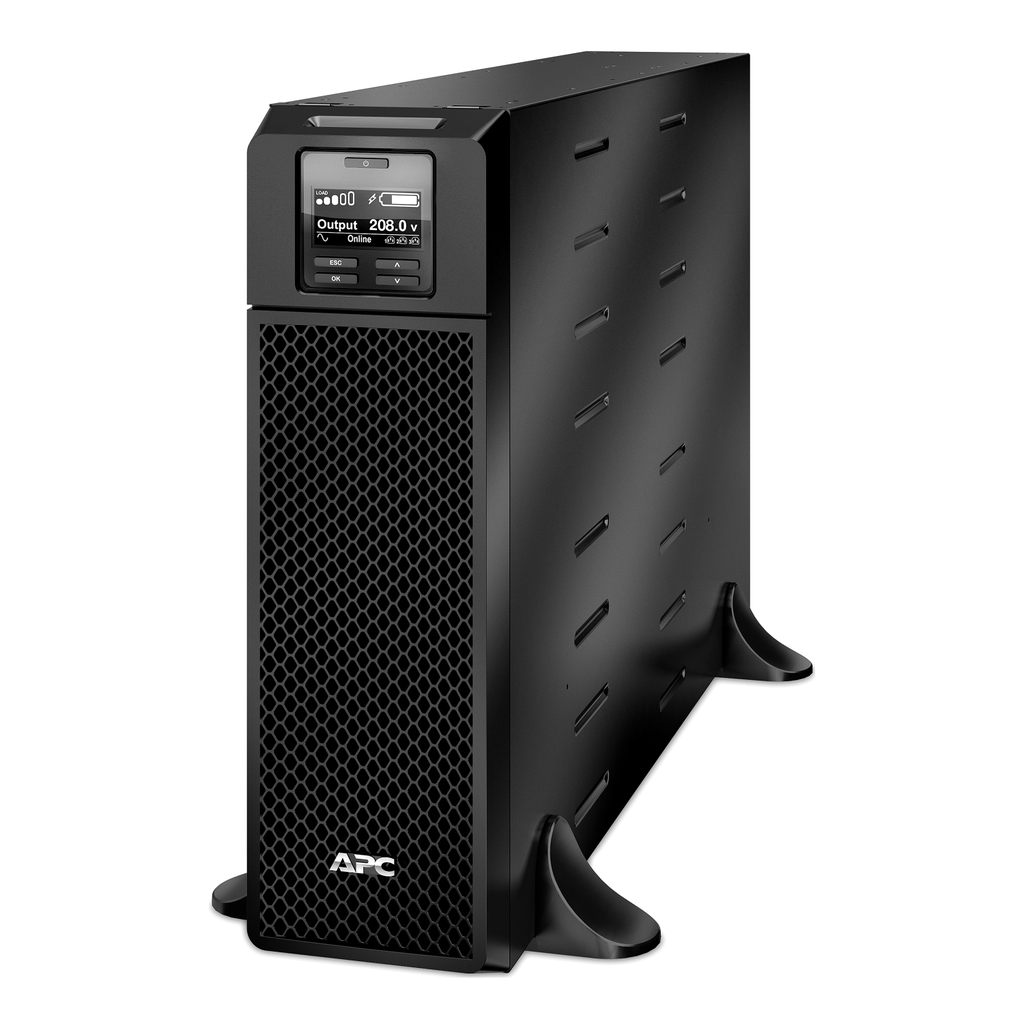

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 2x NEMA L6-30R and 2x L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Alarm : audible and visible alarms : prioritized by severity
• Physical Attributes
• Color : Black
• Complementary Attributes
• Curve Load Maximum : 100 %
• Curve Load Minimum : 2 %
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Maximum Configurable Power In VA : 5400 VA
• Important Information Attributes
• Persona Type Ids : EUA, OM, PB, SC, VR
• Persona Type Names : Consumer, Original Equipment Manufacturer, Panel Builder, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Output Connection Type : 2 NEMAL6-20R, 2 NEMAL6-30R
• Provided Equipment : CD with software, Documentation CD, Installation guide, Removable support feet, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card
• Ups Connectivity : serial port, USB port, pre-installed network management card 3
• Carbon Footprint Of The Distribution Phase A4 : 9.0058463077, 9 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 8 kg CO2 eq., 7.9354190769
• Carbon Footprint Of The Installation Phase A5 : 0, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 814 kg CO2 eq., 813.5505846154
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 10 656 kg CO2 eq., 10655.6550216223
• Warranty In Months : 24 Battery, 36 UPS
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Pre Comm Date : 2014-09-04
• HTML Description : APC Smart-UPS SRT 5000VA 208VHigh density, double-conversion on-line power protection with scalable runtimeIncludes: CD with software , Documentation CD , Installation guide , Removable support feet , Temperature Probe , USB cable , Warranty card , Web/SNMP Management C
• Manufacturer : American Power Conversion Corp. (APC)
• Device Type : UPS - Network and Server
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Spare Used In Spare Kit : No
• Spare Part Order Method : ERP to ERP
• Spare Part Order Method Direction : Consult local ERP Setup
• Service Catalog Item : Finished good
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1512017_EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : L - LOB initialized
• Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
• Function Option Id : STANDARD
• Function Option : Standard
• Additional Specification : high density
• Crest Factor : 3 : 1
• Curve Equation : efficiency
• Curve Load Maximum : 100 %
• Curve Load Minimum : 2 %
• Curve Test Cond Id : Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 240V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve X Axis Title : load
• Curve X Axis Units : percentage
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Curve Y Axis Title : efficiency
• Curve Y Axis Units : percentage
• Efficiency At Full Load : 100...275 V adjustable (half load)
• Energy Efficiency Optimized : False
• Input Connection Type : NEMA L6-30P
• Maximum Configurable Power In VA : 5400 VA
• Mounting Mode : rack-mounted with included kit
• Mounting Preference : no preference
• Number Of Tare Power : 77 W
• Package Weight Lbs : 64.41 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS On-Line
• Redundant : No
• Returnability : Yes
• Show Note Op Temperature : No
• Surge Energy Rating : 480 J
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 11 486 kg CO2 eq.
• Typical Recharge Time : 1.5 h
• Ups Design Life : 7 year(s)
• Ups Size : S
• Usb Compatible : Yes
• Waveform Type : Sine wave
• Output Frequency Sync To Mains : 50/60 Hz +/- 3 Hz sync to mains
• Emergency Power Off EPO : Yes
• Max Configurable Power Watts : 4800 W
• Pre Installed Smartslot Trade Cards : network management card 3 with environmental monitoring
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1512017EN
• Pep Verification Date : 2025-10-25
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : MARK KALOUDIS
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : Yes
• Energy Star : ENERGY STAR UPS V2.0 (USA)
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Carbon Footprint : 11486.1468716223
• Circularity Profile : ENVEOLI1512017_EN
• Environmental Disclosure : ENVPEP1512017EN
• IP Degree Of Protection : IP20
• Online Thermal Dissipation : 1047 Btu/h
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 % non-condensing
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 % non-condensing
• Pep Code : ENVPEP1512017EN
• Pep Verification Date : 2025-10-25
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : CD with software, Documentation CD, Installation guide, Removable support feet, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card
• Additional Specification : high density
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS On-Line
• Output Attributes
• Bypass Type : Internal Bypass (Automatic and Manual)
• Harmonic Distortion : Less than 2%
• Other Output Voltages : 240 V
• Output Voltage : 208 V 1 phase
• Surge Protection And Filtering Attributes
• Surge Energy Rating : 480 J
• Contractual Warranty Attributes
• Warranty Period : 3 years repair or replace (excluding battery) and 2 years for battery
• Warranty : 3 years repair or replace (excluding battery) and 2 years for battery
• Input Attributes
• Efficiency At Full Load : 100...275 V adjustable (half load)
• Input Frequency : 40 - 70 Hz auto-sensing
• Main Input Voltage : 208 V AC 1 phase
• Other Input Voltages : 240 V
• Batteries & Runtime Attributes
• Battery Option : SRT192BP 1 2520 VAh, SRT192BP 2 4200 VAh, SRT192BP 3 5880 VAh, SRT192BP 4 7560 VAh, SRT192BP 5 9240 VAh, SRT192BP 6 10920 VAh, SRT192BP 8 14600 VAh, SRT192BP 10 17640 VAh
• Removable Battery : USER_REPLACEABLE
• Battery Curve : D
• Battery Design Life : 2 year(s)
• Battery Power In VAH : 840 VAh runtime
• Battery Size : lead-acid internal included
• Battery Slots Empty : 0
• Included Battery Modules : 0
• Battery Charge Power Watts : 556 W rated
• Batteries : SRT192BP
• Replacement Battery : APCRBC140
