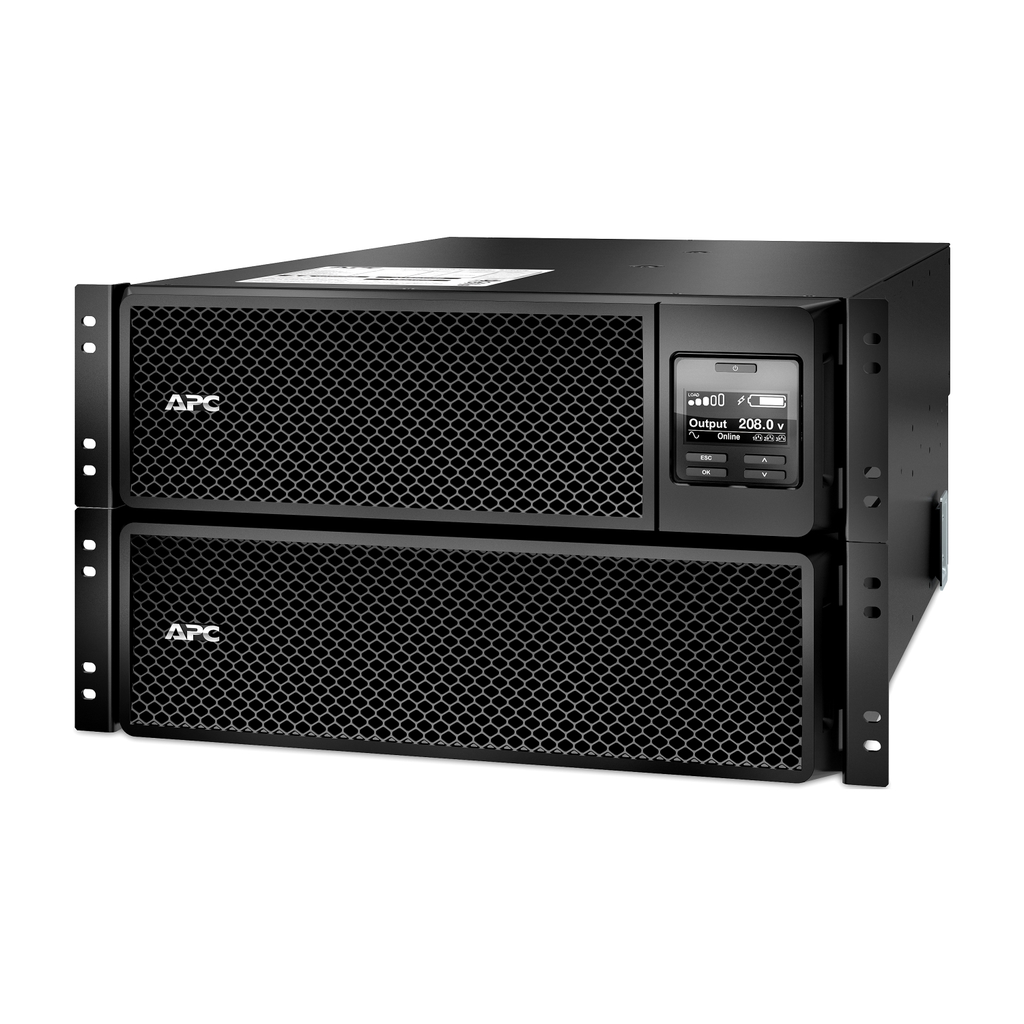

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power

• Number Of Input Connectors
• 1 Hard Wire 3-wire (2PH + G)
• Output Frequency Sync To Mains
• 50/60 Hz +/- 3 Hz sync to mains
• Mounting Mode
• rack-mounted with included kit
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Warranty In Months
• 36 UPS
• 24 Battery
• Ups Connectivity
• serial port
• USB port
• embedded network management card 3
• available expansion slot
• Carbon Footprint Of The Installation Phase A5
• 0
• 0 kg CO2 eq.
• Battery Size
• lead-acid internal
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 16 kg CO2 eq.
• 15.9309149538
• Provided Equipment
• CD with software
• Documentation CD
• Installation guide
• Rack mounting hardware
• Rack Mounting brackets
• Rack Mounting support rails
• Temperature Probe
• USB cable
• Warranty card
• Web/SNMP Management Card
• Storage Relative Humidity
• 0-95 % non-condensing
• Battery Power In VAH
• 1799 VAh runtime
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 633 kg CO2 eq.
• 1633.2603292308
• Main Input Voltage
• 208 V AC 1 phase
• 240 V AC 1 phase
• Battery Charge Power Watts
• 1191 W rated
• Market Segmentation
• Residential
• Commercial
• Industrial
• Persona Type Names
• Consumer
• Original Equipment Manufacturer
• Panel Builder
• Electrician
• IT Channel Partner
• Alarm
• audible and visible alarms : prioritized by severity
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 19 011 kg CO2 eq.
• 19010.7273272098
• Relative Humidity
• 0-95 % non-condensing
• Persona Type Ids
• EUA
• OM
• PB
• SC
• VR
• Carbon Footprint Of The Distribution Phase A4
• 18.0798733154
• 18 kg CO2 eq.
• Battery Option
• SRT192RMBP2 1 3598 VAh
• SRT192RMBP2 2 5397 VAh
• SRT192RMBP2 3 7196 VAh
• SRT192RMBP2 4 8995 VAh
• S
• Output Connector Type
• Hard Wire 3-wire (2PH + G) for 1 zone(s)
• Input Frequency
• 40 - 70 Hz auto-sensing
• Market Segmentation Id
• RESIDENTIAL
• COMMERCIAL
• INDUSTRIAL
• Efficiency At Full Load
• 100...275 V adjustable (half load)
• Output Connection Type
• 4 NEMAL6-20R
• 2 NEMAL6-30R
• Output Voltage
• 208 V 1 phase
• 240 V 1 phase

• Physical Attributes
• Color : Black
• Complementary Attributes
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Maximum Configurable Power In VA : 10000 VA
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 10/16/2025
• Pre Comm Date : 11/7/2014
• HTML Description : APC Smart-UPS SRT 10000VA RM 208VHigh density, double-conversion on-line power protection with scalable runtimeIncludes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware,
• Manufacturer : American Power Conversion Corp. (APC)
• Device Type : UPS - Network and Server
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Preventive Maintenance : 0
• Cr Shelf Life : 12
• Spare Used In Spare Kit : No
• Spare Part Order Method : ERP to ERP
• Spare Part Order Method Direction : Consult local ERP Setup
• Service Catalog Item : Finished good
• Manufacturing Carbon Footprint : 1633.260329
• Distribution Carbon Footprint : 18.07987332
• Installation Carbon Footprint : 0
• Use Carbon Footprint : 19010.72733
• End Of Life Carbon Footprint : 15.93091495
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1512017_EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1850
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : L - LOB initialized
• Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Additional Specification : high density
• Crest Factor : 3:01
• Curve Equation : efficiency
• Curve Fixed Loss : 0.0098
• Curve Load Maximum : 100%
• Curve Load Minimum : 1%
• Curve Proportional Loss : 0.0189
• Curve Square Loss : 0.0241
• Curve Test Cond Id : Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 240V/60Hz electrical input and balanced resistive load (PF =
• Curve X Axis Maximum : 100%
• Curve X Axis Minimum : 0%
• Curve X Axis Title : load
• Curve X Axis Units : percentage
• Curve Y Axis Maximum : 100%
• Curve Y Axis Minimum : 50%
• Curve Y Axis Title : efficiency
• Curve Y Axis Units : percentage
• Energy Efficiency Optimized : Energy efficient product
• Extendable Run Time : 1
• Graph Display : 1
• KW Rating : 10000 W
• Liquid Electrolyte Value : 0
• Maximum Configurable Power In VA : 10000 VA
• Mounting Preference : no preference
• Number Of Power Module Filled Slots : 0
• Number Of Power Module Free Slots : 0
• Number Of Rack Unit : 6U
• Number Of Tare Power : 65 W
• Package Weight Lbs : 129.73 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS On-Line
• RBC Quantity : 2
• Redundant : No
• Returnability : Yes
• Show Note Op Temperature : No
• Surge Energy Rating : 480 J
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 20 678 kg CO2 eq.
• Two Post Mountable : 0
• Typical Recharge Time : 1.5 h
• Ups Design Life : 7 year(s)
• Ups Size : S
• Usb Compatible : Yes
• Waveform Type : Sine wave
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Emergency Power Off EPO : Yes
• Max Configurable Power Watts : 10000 W
• Pre Installed Smartslot Trade Cards : network management card 3 with environmental monitoring
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 20677.99844
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1512017_EN
• Pep Verification Date : 10/25/2025
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 129730
• Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 0
• Energy Model Manufacturing A1 A3 : Electricity Mix; High voltage; 2020; Asia Pacific, APAC
• Energy Model Installation A5 : No energy used
• Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
• Recyclability Potential In : 65
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0
• Acidification Ap Mole Of H Equiv Distribution A4 : 0
• Acidification Ap Mole Of H Equiv Installation A5 : 0
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 0
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Climate Change Total Kg Co2 Eq Total Life Cycle : 20677.99844
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 1633.260329
• Climate Change Total Kg Co2 Eq Distribution A4 : 18.07987332
• Climate Change Total Kg Co2 Eq Installation A5 : 0
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 19010.72733
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 15.93091495
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 0
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 0
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0
• Ecotoxicity Fresh Water Ctue Installation A5 : 0
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : 0
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : 0
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0
• Freshwater Eutrophication Kg P Eq Installation A5 : 0
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 0
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : 0
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0
• Net Use Of Fresh Water M3 Distribution A4 : 0
• Net Use Of Fresh Water M3 Installation A5 : 0
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : 0
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : 0
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0
• Radioactive Waste Disposed Of Kg Distribution A4 : 0
• Radioactive Waste Disposed Of Kg Installation A5 : 0
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 0
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 0
• Water Use M3 Eq Manufacturing A1 A3 : 0
• Water Use M3 Eq Distribution A4 : 0
• Water Use M3 Eq Installation A5 : 0
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0
• Water Use M3 Eq End Of Life C1 C4 : 0
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Additional Specification : high density
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS On-Line
• Output Attributes
• Bypass Type : Internal Bypass (Automatic and Manual)
• Harmonic Distortion : Less than 2%
• Other Output Voltages : 240 V
• Surge Protection And Filtering Attributes
• Surge Energy Rating : 480 J
• Environment Attributes
• ROHS Exemption Information : Yes
• Take Back : Yes
• Energy Star : ENERGY STAR UPS V2.0 (USA)
• Recycled Metal Content At Cr Level : 0%
• Mercury Free : Yes
• Optimized Energy Efficiency : Energy efficient product
• Carbon Footprint : 20677.99844
• Circularity Profile : ENVEOLI1512017_EN
• Environmental Disclosure : ENVPEP1512017_EN
• EU ROHS Directive : Compliant with Exemptions
• IP Degree Of Protection : IP20
• Online Thermal Dissipation : 2490 Btu/h
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Storage Altitude : 0-50000 ft
• Pep Code : ENVPEP1512017_EN
• Pep Verification Date : 10/25/2025
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 3 years repair or replace (excluding battery) and 2 years for battery
• Warranty : 3 years repair or replace (excluding battery) and 2 years for battery
• Input Attributes
• Other Input Voltages : 240 V
• Specifications
• Country of Origin : United States
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE
• Battery Curve : D
• Battery Design Life : 2 year(s)
• Included Battery Modules : 0
• Batteries : SRT192RMBP2
• Replacement Battery : APCRBC140
• Overview Attributes
• Presentation : High density, double-conversion on-line power protection with scalable runtime.
