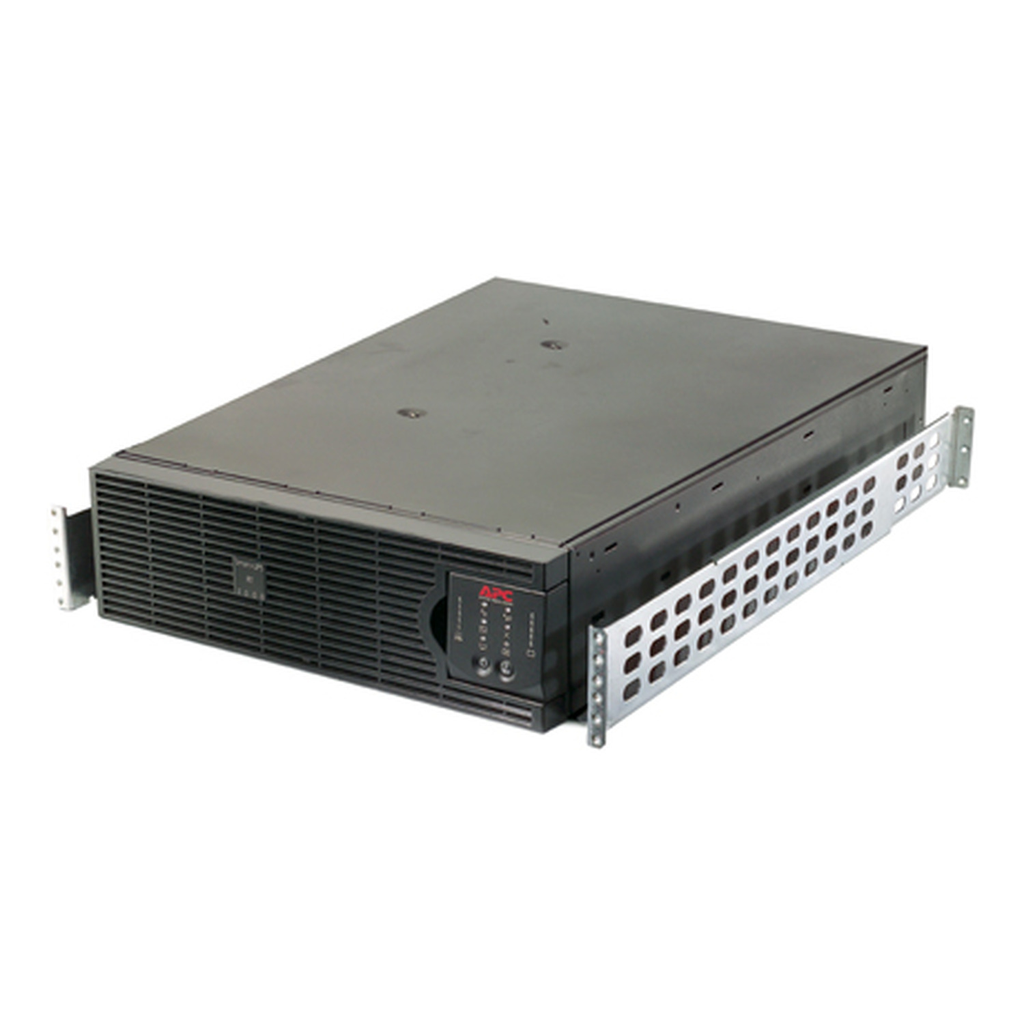

Smart-UPS On-Line provides high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute™ management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated network management card for remote management (optional on models below 5kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, internal bypass, and input power factor correction.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Alarm : alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Free Slots : 0
• Physical Attributes
• Cable Length : 10 ft
• Color : Black
• Complementary Attributes
• Curve Load Maximum : 100 %
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Maximum Configurable Power In Va : 5000 VA
• Rated Power In Va : 5000 VA
• Rated Power In W : 4000 W
• Important Information Attributes
• Persona Type Ids : EUA, OM, PB, SC, VR
• Persona Type Names : Consumer, Original Equipment Manufacturer, Panel Builder, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Efficiency At Full Load : 85...136 V adjustable, 156...236 V, 90 % full load)
• Output Connection Type : 4 NEMA5-20R, 1 NEMAL6-30R, 1 NEMAL14-30R
• Provided Equipment : CD with software, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, User Manual
• Size Ups Version : Internetworking, Server, Telecom
• Topology : On-Line
• Ups Connectivity : serial port, USB port, pre-installed network management card 3
• Carbon Footprint Of The Distribution Phase A4 : 9.7535862923, 10 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 9 kg CO2 eq., 8.5942833231
• Carbon Footprint Of The Installation Phase A5 : 0, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 881 kg CO2 eq., 881.0982953846
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 16 257 kg CO2 eq., 16256.9932087324
• Local Data Status : Publishable
• Local Publishable Date : 2026-05-15
• Pre Comm Date : 2008-10-07
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : UPS - Network and Server
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Cr Shelf Life : 12
• Service Catalog Item : Finished good
• Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1512017_EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Acoustic Level : 55 dBA
• Crest Factor : 3 : 1
• Curve Equation : efficiency
• Curve Load Maximum : 100 %
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve X Axis Title : load
• Curve X Axis Units : percentage
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Curve Y Axis Title : efficiency
• Curve Y Axis Units : percentage
• Energy Efficiency Optimized : False
• Extendable Run Time : 1
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
• Graph Display : 1
• Input Connection Type : NEMA L14-30P
• Maximum Configurable Power In Va : 5000 VA
• Mounting Location : front
• Mounting Mode : rack-mounted
• Mounting Preference : lower
• Number Of Cables : 1
• Number Of Rack Unit : 3U
• Number Of Tare Power : 60 W
• Performance Multiplier : 1
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS On-Line
• Rbc Quantity : 1
• Redundant : No
• Returnability : Yes
• Show Note Op Temperature : No
• Software Version : v6.2.5-6
• Surge Energy Rating : 365 J
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 17 156 kg CO2 eq.
• Typical Recharge Time : 2.5 h
• Ups Design Life : 7 year(s)
• Ups Size : S
• Usb Compatible : No
• Value Multiplier : 1
• Waveform Type : Sine wave
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Output Frequency Sync To Mains : 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains
• Emergency Power Off Epo : Yes
• Max Configurable Power Watts : 4000 W
• Warranty In Months : 24
• Pep Code : ENVPEP1512017EN
• Database Version : 2025-30
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; High voltage; 2020; Asia Pacific, APAC
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 65
• Offer Owner Code : 190792
• Pn : 1
• Height Nominal : 130 mm
• Width Nominal : 432 mm
• Pre Installed Smartslot Cards : network management card 2 with environmental monitoring
• Certificate Agency : CSA
• Environment Attributes Main
• Ambient Air Temperature For Storage : -15-45 °C, -15-45 °C
• Take Back : Yes
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 17156.4393737324
• Ambient Air Temperature For Operation : 0-40 °C
• Circularity Profile : ENVEOLI1512017_EN
• Environmental Disclosure : ENVPEP1512017EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Online Thermal Dissipation : 1589 Btu/h
• Operating Altitude : 0...10000 ft
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 % non-condensing
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 % non-condensing
• Pep Code : ENVPEP1512017EN
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : CD with software, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, User Manual
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS On-Line
• ETIM
• ETIM 8 : EC000382
• ETIM 9 : EC000382
• Output Attributes
• Output Voltage : 120 V AC 1 phase, 208 V AC 1 phase
• Bypass Type : Internal Bypass (Automatic and Manual)
• Harmonic Distortion : Less than 2%
• Other Output Voltages : 240 V
• Surge Protection And Filtering Attributes
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
• Surge Energy Rating : 365 J
• Contractual Warranty Attributes
• Warranty Period : 2 years repair or replace
• Warranty : 2 years repair or replace
• Input Attributes
• Efficiency At Full Load : 85...136 V adjustable, 156...236 V, 90 % full load)
• Main Input Voltage : 120 V AC 1 phase, 208 V AC 1 phase
• Input Frequency : 50/60 Hz +/- 5 Hz auto-sensing
• Other Input Voltages : 240 V
• Specifications
• Country of Origin : Philippines, United States
• Depth : 660 mm
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE, User replaceable
• Battery Option : SURT192RMXLBP3U 1 2880 VAh, SURT192RMXLBP3U 2 4800 VAh, SURT192RMXLBP3U 3 6720 VAh, SURT192RMXLBP3U 4 8640 VAh, SURT192RMXLBP3U 5 10560 VAh, SURT192RMXLBP3U 6 12480 VAh, SURT192RMXLBP3U 7 14400 VAh, SURT192RMXLBP3U 8 16320 VAh, SURT192RMXLBP3U 9 18240 VAh, SURT192RMXLBP3U 10 20160 VAh
• Additional Information : Configurable for 208 or 240 nominal output voltage
• Battery Curve : C
• Battery Design Life : 2 year(s)
• Battery Life : 3-5 year(s)
• Battery Power In Vah : 960 VAh runtime
• Battery Size : lead-acid internal included
• Battery Type : Lead-Acid battery
• Included Battery Modules : 2
• Battery Charge Power Watts : 382 W rated
• Overview Attributes
• Presentation : High density, double-conversion on-line power protection with scalable runtime.
