AMERICAN POWER CONVERSION CORP

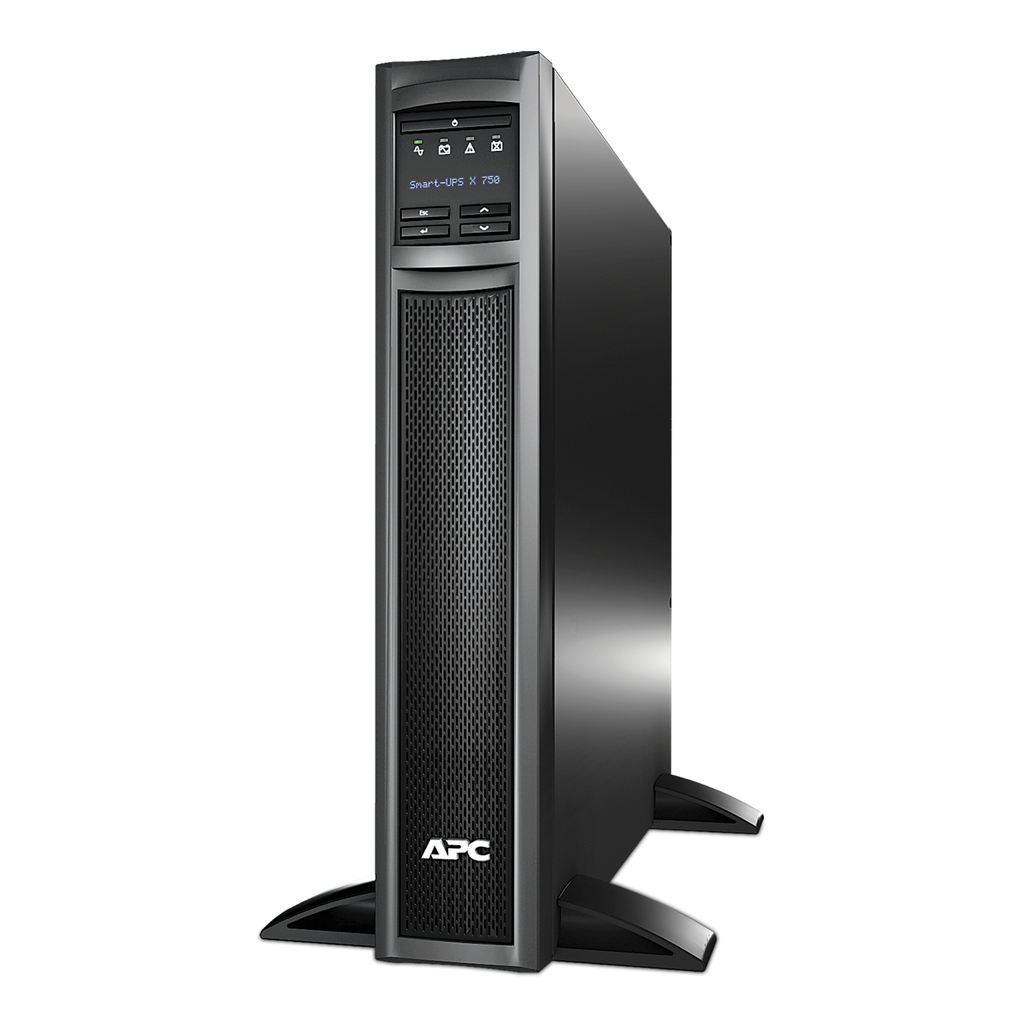

APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port, Extended runtime

SMARTUPS X750VA RACK/TOWERLCD1

APCSMX750C SMX750C 731304401100
1083.37 / EA
http://schema.org/OutOfStock
Mayer-DDS-APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port, Extended runtime-1
  • Output Voltage: 120 V
  • Warranty Length: 2 yr, 3 yr
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
QTY
  • Specifications
  • Communications & Management Attributes
    • Alarm : alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Physical Attributes
    • Color : Black
  • Complementary Attributes
    • Curve Load Maximum : 100 %
    • Curve Load Minimum : 1 %
    • Curve X Axis Maximum : 100 %
    • Curve X Axis Minimum : 0 %
    • Curve Y Axis Maximum : 100 %
    • Curve Y Axis Minimum : 50 %
    • Maximum Configurable Power In VA : 750 VA
    • Maximum Input Current Per Phase : 12 A
    • Maximum Short Circuit Withstand Icw : 1000 kA
  • Important Information Attributes
    • Persona Type Ids : EUA, OM, PB, SC, VR
    • Persona Type Names : Consumer, Original Equipment Manufacturer, Panel Builder, Electrician, IT Channel Partner
    • Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Residential, Commercial, Industrial
    • Efficiency At Full Load : 75...154 V adjustable, 82...143 V
    • Provided Equipment : Warranty card, Cat 5 ethernet cable, USB cable, Smart UPS signalling RS-232 cable, Removable support feet, Rack Mounting brackets, Installation guide
    • Ups Connectivity : serial port, USB port, SmartConnect port, available expansion slot
    • Carbon Footprint Of The Distribution Phase A4 : 16.6591621462, 17 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 25.4022451903, 25 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 5 kg CO2 eq., 4.8429403482
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 697 kg CO2 eq., 697.350075594
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 166 kg CO2 eq., 165.9504897646
    • Warranty In Months : 36 UPS, 24 Battery
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-09
    • HTML Description : APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port, Extended runtime
    • Manufacturer : American Power Conversion Corp. (APC)
    • Device Type : UPS - Network and Server
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : SPIBS
    • Average Life Duration : 5 year(s)
    • Spare Used In Spare Kit : No
    • Spare Part Order Method : ERP to ERP
    • Spare Part Order Method Direction : Consult local ERP Setup
    • Service Catalog Item : Finished good
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1612028_EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Additional Specification : extended run
    • Curve Equation : efficiency
    • Curve Load Maximum : 100 %
    • Curve Load Minimum : 1 %
    • Curve Test Cond Id : Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
    • Curve X Axis Maximum : 100 %
    • Curve X Axis Minimum : 0 %
    • Curve X Axis Title : load
    • Curve X Axis Units : percentage
    • Curve Y Axis Maximum : 100 %
    • Curve Y Axis Minimum : 50 %
    • Curve Y Axis Title : efficiency
    • Curve Y Axis Units : percentage
    • Energy Efficiency Optimized : Energy efficient product
    • Equipment Protection Policy : Lifetime : $150000
    • Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
    • Full Load Runtime : 00:11:30 660 W
    • Half Load Runtime : 00:27:00 330 W
    • Input Connection Type : NEMA 5-15P
    • Maximum Configurable Power In VA : 750 VA
    • Maximum Input Current Per Phase : 12 A
    • Mounting Mode : tower
    • Mounting Preference : lower
    • Number Of Rack Unit : 2U
    • Number Of Tare Power : 5.6 W
    • Output Connection Type : 8 NEMA5-15R
    • Package Weight Lbs : 26.5 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : uninterruptible power supply (UPS)
    • Range Of Product : Smart-UPS
    • Redundant : No
    • Returnability : No
    • Show Note Op Temperature : No
    • Surge Energy Rating : 645 J
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 910 kg CO2 eq.
    • Typical Recharge Time : 3 h
    • Ups Design Life : 6 year(s)
    • Ups Size : S
    • Usb Compatible : Yes
    • Waveform Type : Sine wave
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Output Frequency Sync To Mains : 50/60 Hz +/- 3 Hz sync to mains
    • Emergency Power Off EPO : Yes
    • Max Configurable Power Watts : 675 W
    • Maximum Short Circuit Withstand Icw : 1000 kA
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1612028EN
    • Pep Verification Date : 2025-10-25
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0010-ed1.1-EN-2015 10 16
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : BALASUBRAMANI HARI
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : Yes
    • Energy Star : ENERGY STAR UPS V2.0 (USA)
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Optimized Energy Efficiency : Energy efficient product
    • Carbon Footprint : 910.2049130433
    • Circularity Profile : ENVEOLI1612028_EN
    • Environmental Disclosure : ENVPEP1612028EN
    • Online Thermal Dissipation : 69 Btu/h
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 0-95 %
    • Storage Altitude : 0-50000 ft
    • Storage Relative Humidity : 0-95 %
    • Pep Code : ENVPEP1612028EN
    • Pep Verification Date : 2025-10-25
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0010-ed1.1-EN-2015 10 16
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Provided Equipment : Warranty card, Cat 5 ethernet cable, USB cable, Smart UPS signalling RS-232 cable, Removable support feet, Rack Mounting brackets, Installation guide
    • Additional Specification : extended run
    • Product Or Component Type : uninterruptible power supply (UPS)
    • Range Of Product : Smart-UPS
  • Output Attributes
    • Harmonic Distortion : Less than 5%
    • Output Voltage : 120 V AC 1 phase
  • Surge Protection And Filtering Attributes
    • Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
    • Surge Energy Rating : 645 J
  • Contractual Warranty Attributes
    • Warranty Period : 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect
    • Warranty : 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect
  • Input Attributes
    • Efficiency At Full Load : 75...154 V adjustable, 82...143 V
    • Input Frequency : 50/60 Hz +/- 3 Hz auto-sensing
    • Main Input Voltage : 120 V AC 1 phase
  • Batteries & Runtime Attributes
    • Battery Option : SMX48RMBP2U 1 939 VAh, SMX48RMBP2U 2 1620 VAh, SMX48RMBP2U 3 2296 VAh, SMX48RMBP2U 4 2952 VAh, SMX48RMBP2U 5 3648 VAh
    • Removable Battery : USER_REPLACEABLE
    • Battery Curve : D
    • Battery Design Life : 2 year(s)
    • Battery Power In VAH : 269 VAh runtime
    • Battery Size : lead-acid internal included
    • Battery Slots Empty : 1
    • Included Battery Modules : 1
    • Battery Charge Power Watts : 104 W rated
    • Replacement Battery : APCRBC116
