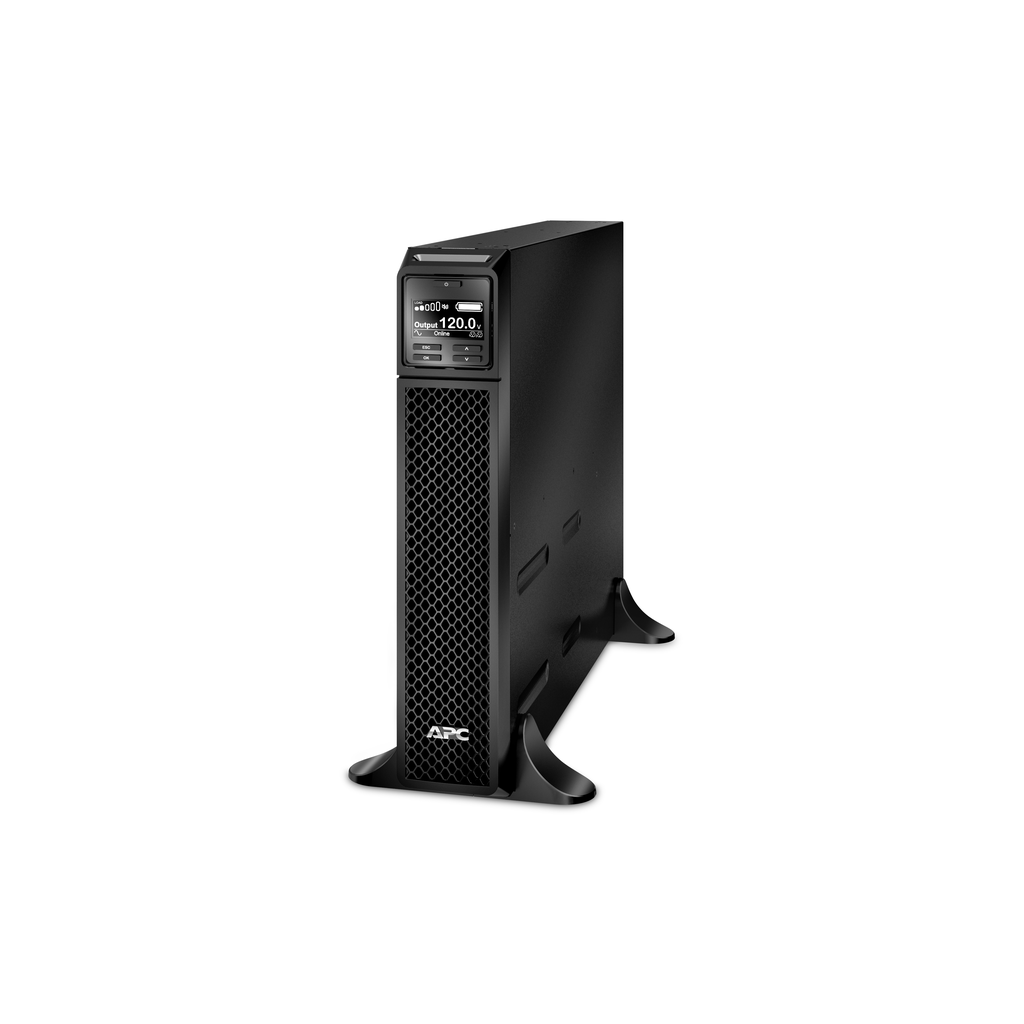

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L5-30P input and 8x NEMA 5-20R and 1x NEMA L5-30R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.

• Features
• 3kVA/2.7kW double-conversion on-line pure sine wave tower UPS
• Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
• Rack/Tower convertible (rail kit SRTRK4 or SRTRK3 sold separately)
• Delivers clean power with zero transfer time for critical or sensitive devices
• Add up to 10 external battery packs (SRT96RMBP) for extended runtime
• Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Alarm : audible and visible alarms : prioritized by severity
• Free Slots : 1
• Physical Attributes
• Cable Length : 2.4 m
• Color : Black
• Complementary Attributes
• Curve Load Maximum : 100 %
• Curve Load Minimum : 2 %
• Maximum Configurable Power In Va : 3000 VA
• Rated Power In Va : 3000 VA
• Rated Power In W : 2700 W
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Important Information Attributes
• Persona Type Ids : EUA, OM, PB, SC, VR
• Persona Type Names : Consumer, Original Equipment Manufacturer, Panel Builder, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Mounting Mode : tower, not rack-mountable
• Provided Equipment : Installation guide, Removable support feet, USB cable, Warranty card
• Size Ups Version : Internetworking, Server, Telecom
• Ups Connectivity : serial port, USB port
• Carbon Footprint Of The Distribution Phase A4 : 5.0978184923, 5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 4.4918961231, 4 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : kg CO2 eq., 0
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 461 kg CO2 eq., 460.5156553846
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 7 514 kg CO2 eq., 7514.4891951675
• Warranty In Months : 36 UPS, 24 Battery
• Local Data Status : Publishable
• Local Publishable Date : 2026-08-03
• Pre Comm Date : 2016-05-17
• Return Indicator : N
• Device Type : UPS - Network and Server
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Cr Shelf Life : 12
• Service Catalog Item : Finished good
• Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1512017_EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1850
• Rohs Eur Full Compliance Status : Compliant By Exemption
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Acoustic Level : 55 dBA
• Additional Specification : high density
• Average Percentage Of Recycled Plastic Content : 15 %
• Crest Factor : 3 : 1
• Curve Equation : efficiency
• Curve Fixed Loss : 0.0174
• Curve Proportional Loss : 0.0134
• Curve Square Loss : 0.0509
• Curve Test Cond Id : Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
• Energy Efficiency Optimized : False
• Extendable Run Time : 1
• Graph Display : 1
• Input Connection Type : NEMA L5-30P
• Mounting Location : front
• Mounting Position : vertical
• Mounting Preference : lower
• Number Of Cables : 1
• Number Of Tare Power : 25 W
• Output Connection Type : 8 NEMA1 NEMA
• Performance Multiplier : 1
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS On-Line
• Rbc Quantity : 1
• Redundant : No
• Returnability : No
• Show Note Op Temperature : No
• Software Version : v6.2.5-6
• Surge Energy Rating : 340 J
• Sustainable Packaging : No
• Topology : On-Line
• Total Lifecycle Carbon Footprint : 7 985 kg CO2 eq.
• Typical Recharge Time : 3 h
• Ups Design Life : 7 year(s)
• Ups Size : S
• Usb Compatible : Yes
• Value Multiplier : 1
• Waveform Type : Sine wave
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Database Version : 2025-30
• Data Source : extrapolated product
• Height Nominal : 85 mm
• Width Nominal : 432 mm
• Certificate Agency : ENERGY STAR V2.0 (USA)
• Energy Star® : ENERGY STAR UPS V2.0 (USA)
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8504407018
• Output Frequency Sync To Mains : 50/60 Hz +/- 3 Hz sync to mains
• Curve X Axis Title : load
• Curve X Axis Units : percentage
• Curve Y Axis Title : efficiency
• Curve Y Axis Units : percentage
• Emergency Power Off Epo : Yes
• Max Configurable Power Watts : 2700 W
• Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Recyclability Potential In % : 65
• Environment Attributes Main
• Ambient Air Temperature For Storage : -15-45 °C, -15-45 °C
• Take Back : Yes
• Energy Star : ENERGY STAR UPS V2.0 (USA)
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 7984.5945651675
• Ambient Air Temperature For Operation : 0-40 °C
• Circularity Profile : ENVEOLI1512017_EN
• Environmental Disclosure : ENVPEP1512017EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Online Thermal Dissipation : 805 Btu/h
• Operating Altitude : 0...10000 ft
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 % non-condensing
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 % non-condensing
• Pep Code : ENVPEP1512017EN
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : Installation guide, Removable support feet, USB cable, Warranty card
• Additional Specification : high density
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS On-Line
• ETIM
• ETIM 8 : EC000382
• ETIM 9 : EC000382
• ETIM 10 : EC000382
• Output Attributes
• Bypass Type : Internal Bypass (Automatic and Manual)
• Harmonic Distortion : Less than 2%
• Output Voltage : 120 V 1 phase
• Contractual Warranty Attributes
• Warranty Period : 3 years repair or replace (excluding battery) and 2 years for battery
• Warranty : 3 years repair or replace (excluding battery) and 2 years for battery
• Input Attributes
• Input Frequency : 40 - 70 Hz auto-sensing
• Main Input Voltage : 120 V AC 1 phase
• Specifications
• Country of Origin : United States
• Weight : 36740 g
• Depth : 635 mm
• Batteries & Runtime Attributes
• Battery Option : SRT96BP 1 1362 VAh, SRT96BP 2 2270 VAh, SRT96BP 3 3178 VAh, SRT96BP 4 4086 VAh, SRT96BP 5 4994 VAh, SRT96BP 6 5902 VAh, SRT96BP 7 6801 VAh, SRT96BP 8 7718 VAh, SRT96BP 9 8626 VAh, SRT96BP 10 9534 VAh
• Removable Battery : USER_REPLACEABLEUser replaceable
• Battery Curve : D
• Battery Design Life : 2 year(s)
• Battery Life : 3-5 year(s)
• Battery Power In Vah : 454 VAh runtime
• Battery Size : lead-acid internal included
• Battery Type : Lead-Acid battery
• Battery Voltage : 96V
• Included Battery Modules : 1
• Battery Charge Power Watts : 151 W rated
• Overview Attributes
• Presentation : High density, double-conversion on-line power protection with scalable runtime.
