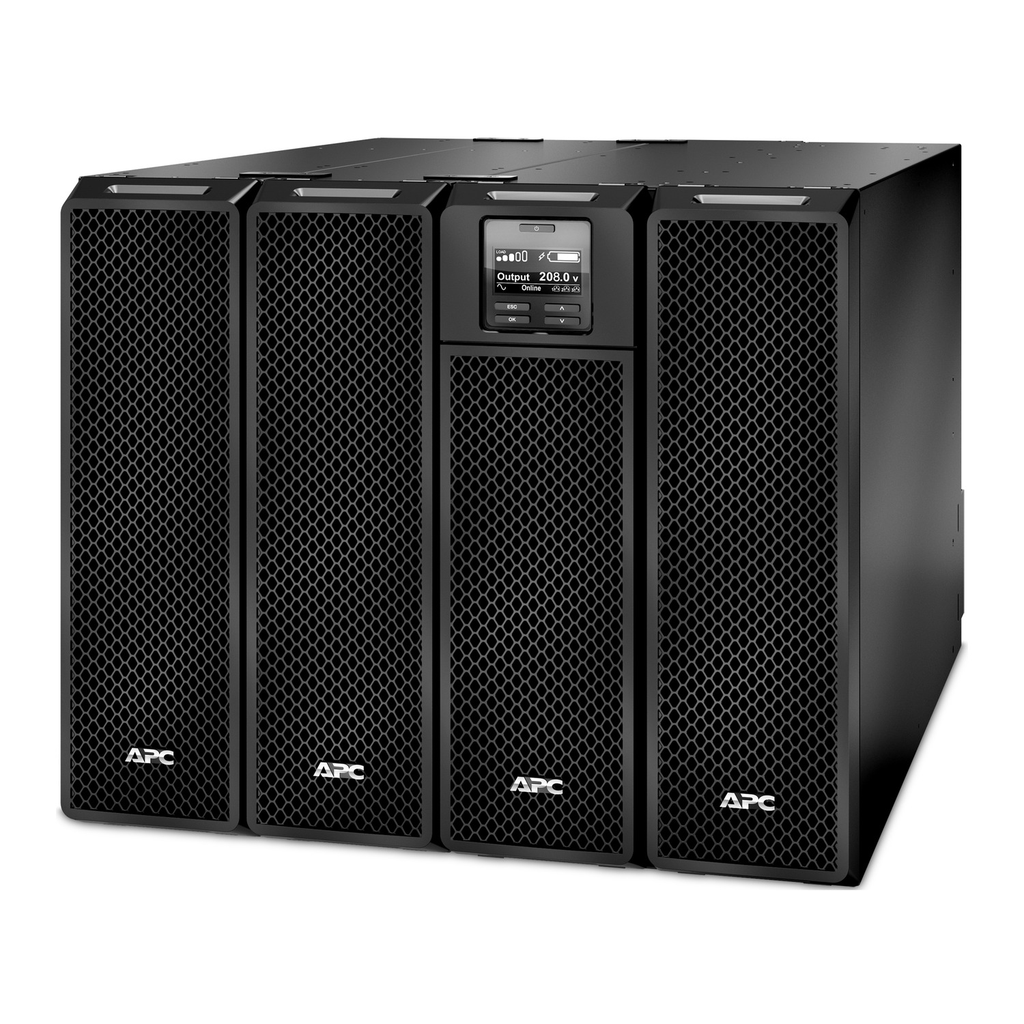

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 16x 5-20R, 4x L6-20R, 6x L6-30R, and 2x L14-30R NEMA outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

• What's in the box?
• Web/SNMP Management Card
• Temperature Probe
• Documentation CD
• USB cable
• CD with software
• Installation guide
• Warranty card
• Features
• Text and mimic diagrams that display modes of operation, system parameters and alarms.
• Connect the device to a network using a 10 or 100 BaseT connection
• Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• Provides early-warning fault analysis on batteries enabling timely preventive maintenance
• Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
• 10kVA/10kW double-conversion on-line pure sine wave tower UPS
• Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
• Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
• 1-Year Secure Network Management Card subscription included
• Add up to 10 external battery packs (SRT192BP2) for extended runtime
• Embedded Network Management Card for network-based UPS monitoring & management
• Graceful shutdown of physical servers, virtual machines and HCI Clusters
• SmartSlot for additional communication options
• Delivers clean power with zero transfer time for critical or sensitive devices
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance
• Rohs : Compliant By Exemption
• Reach : Reference contains Substances of Very High Concern above the threshold
• Reach Compliance Date : 2025-12-10
• Removable Battery : User replaceable
• Battery
• ReplacementBattery : APCRBC140
• TypicalRechargeTime : 1.5 h
• BatteryType : Lead-Acid battery
• Sustainability
• TakeBack : Yes
• Carbon Footprint : 22335.2511497098
• Recycled metal content in percentage : 0 %
• Packaging with recycled cardboard : Yes
• Packaging without single use plastic : No
• Product contributes saved avoided emissions : No
• Weight, Height, Width, Depth
• Height : 17.01 in (432 mm)
• Width : 20.55 in (522 mm)
• Depth : 28.15 in (715 mm)
• Weight : 494.96 lb(US) (224.98 kg)
• Physical
• ProductOrientation : no preference
• Color : Black
• SurgeEnergyRating : 480 J
• MountPosition : front, vertical
• Output
• OutputPowerCapacity : 10000 VA
• OutputConnections : 16 NEMA5-20R, 2 NEMAL14-30R, 4 NEMAL6-20R, 6 NEMAL6-30R, Hard Wire 3-wire (2PH + G) for 1 zone(s)
• NominalOutputVoltage : 120 V 1 phase, 208 V 1 phase, 240 V 1 phase
• Topology : On-Line
• Waveformtype : Sine wave
• Warranty
• Warranty : UPS: 36 month(s), Battery: 24 month(s)
