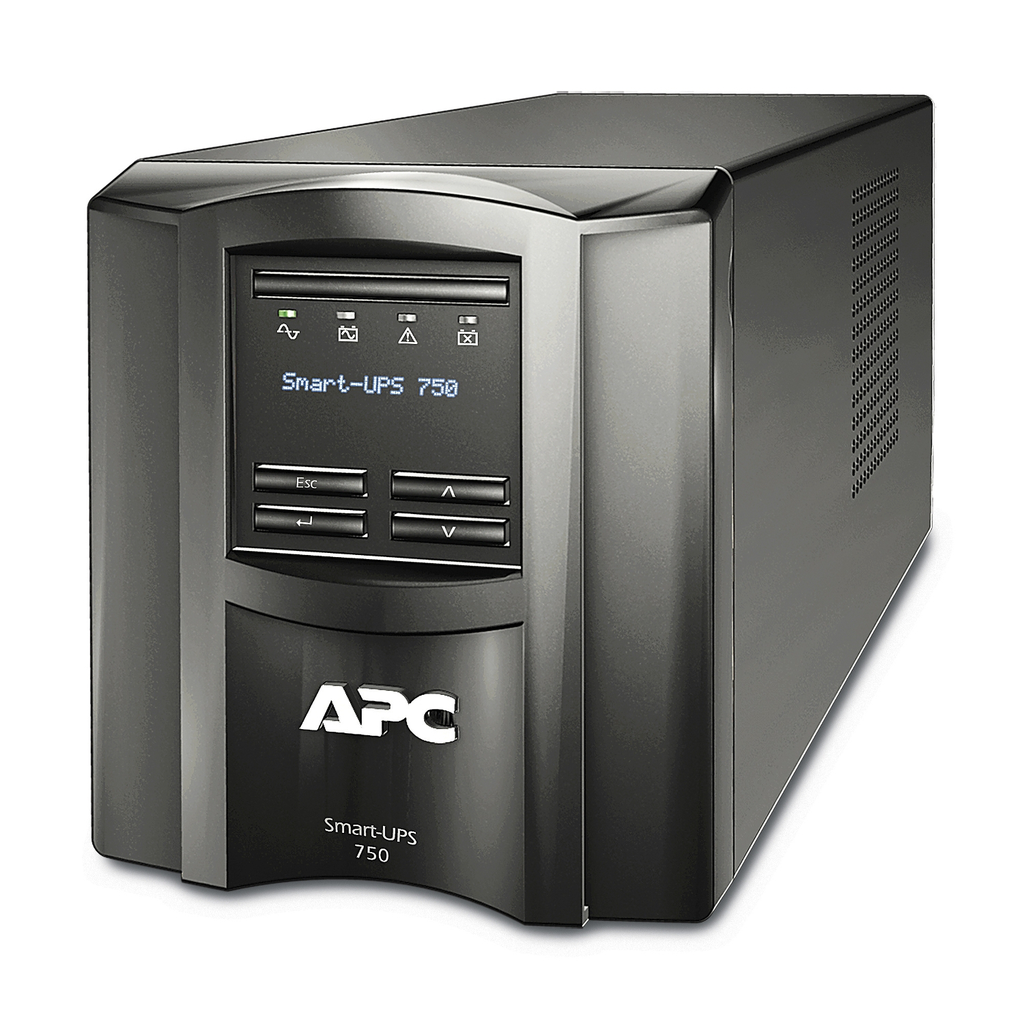

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Alarm : alarm when on battery : distinctive low battery alarm : configurable delays
• Physical Attributes
• Color : Black
• Complementary Attributes
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Maximum Configurable Power In VA : 750 VA
• Important Information Attributes
• Persona Type Ids : EUA, OM, PB, SC, VR
• Persona Type Names : Consumer, Original Equipment Manufacturer, Panel Builder, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Efficiency At Full Load : 75...154 V adjustable, 82...144 V
• Size Ups Version : Internetworking, Server, Telecom, Workstation
• Ups Connectivity : serial port, USB port, SmartConnect port, available expansion slot
• Carbon Footprint Of The Distribution Phase A4 : 9.0999172012, 9 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 13.8757475272, 14 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 3 kg CO2 eq., 2.6454125239
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 381 kg CO2 eq., 380.9211947426
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 126 kg CO2 eq., 125.5673433621
• Warranty In Months : 24 Battery, 36 UPS
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-09
• Pre Comm Date : 2017-05-11
• HTML Description : APC Smart-UPS 750VA LCD 120V with SmartConnectIntelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devicesIncludes: CD with software, Documentation CD, USB cable
• Manufacturer : American Power Conversion Corp. (APC)
• Device Type : UPS - Network and Server
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Spare Used In Spare Kit : No
• Spare Part Order Method : ERP to ERP
• Spare Part Order Method Direction : Consult local ERP Setup
• Service Catalog Item : Finished good
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1612028_EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : L - LOB initialized
• Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
• Function Option Id : STANDARD
• Function Option : Standard
• Additional Specification : cloud-enabled monitoring
• Curve Equation : efficiency
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Curve Test Cond Id : Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 125V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve X Axis Title : load
• Curve X Axis Units : percentage
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Curve Y Axis Title : efficiency
• Curve Y Axis Units : percentage
• Energy Efficiency Optimized : Energy efficient product
• Equipment Protection Policy : Lifetime : $150000
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
• Input Connection Type : NEMA 5-15P
• Maximum Configurable Power In VA : 750 VA
• Mounting Mode : tower
• Mounting Preference : no preference
• Number Of Tare Power : 15 W
• Output Connection Type : 6 NEMA5-15R
• Package Weight Lbs : 14.02 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : uninterruptible power supply (UPS)
• Provided Equipment : USB cable
• Range Of Product : Smart-UPS
• Redundant : No
• Returnability : Yes
• Show Note Op Temperature : No
• Surge Energy Rating : 540 J
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 532 kg CO2 eq.
• Transfer Time : 6ms typical : 10ms maximum
• Typical Recharge Time : 3 h
• Ups Size : S
• Usb Compatible : Yes
• Waveform Type : Sine wave
• Output Frequency Sync To Mains : 50/60 Hz +/- 3 Hz sync to mains
• Max Configurable Power Watts : 500 W
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1612028EN
• Pep Verification Date : 2025-10-25
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : BALASUBRAMANI HARI
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : Yes
• Energy Star : ENERGY STAR UPS V2.0 (USA)
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Optimized Energy Efficiency : Energy efficient product
• Carbon Footprint : 532.1096153569
• Circularity Profile : ENVEOLI1612028_EN
• Environmental Disclosure : ENVPEP1612028EN
• Online Thermal Dissipation : 90 Btu/h
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 %
• Pep Code : ENVPEP1612028EN
• Pep Verification Date : 2025-10-25
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Additional Specification : cloud-enabled monitoring
• Product Or Component Type : uninterruptible power supply (UPS)
• Provided Equipment : USB cable
• Range Of Product : Smart-UPS
• Output Attributes
• Other Output Voltages : 110 V, 125 V
• Harmonic Distortion : Less than 5%
• Output Voltage : 120 V AC 1 phase
• Surge Protection And Filtering Attributes
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
• Surge Energy Rating : 540 J
• Contractual Warranty Attributes
• Warranty Period : 3 years repair or replace (excluding battery) and 2 years for battery
• Warranty : 3 years repair or replace (excluding battery) and 2 years for battery
• Input Attributes
• Efficiency At Full Load : 75...154 V adjustable, 82...144 V
• Other Input Voltages : 110 V, 125 V
• Input Frequency : 50/60 Hz +/- 3 Hz auto-sensing
• Main Input Voltage : 120 V AC 1 phase
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE
• Battery Curve : B
• Battery Power In VAH : 146 VAh runtime
• Battery Size : lead-acid internal included
• Battery Slots Empty : 0
• Included Battery Modules : 0
• Battery Charge Power Watts : 49 W rated
• Replacement Battery : RBC48
• Overview Attributes
• Presentation : Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
