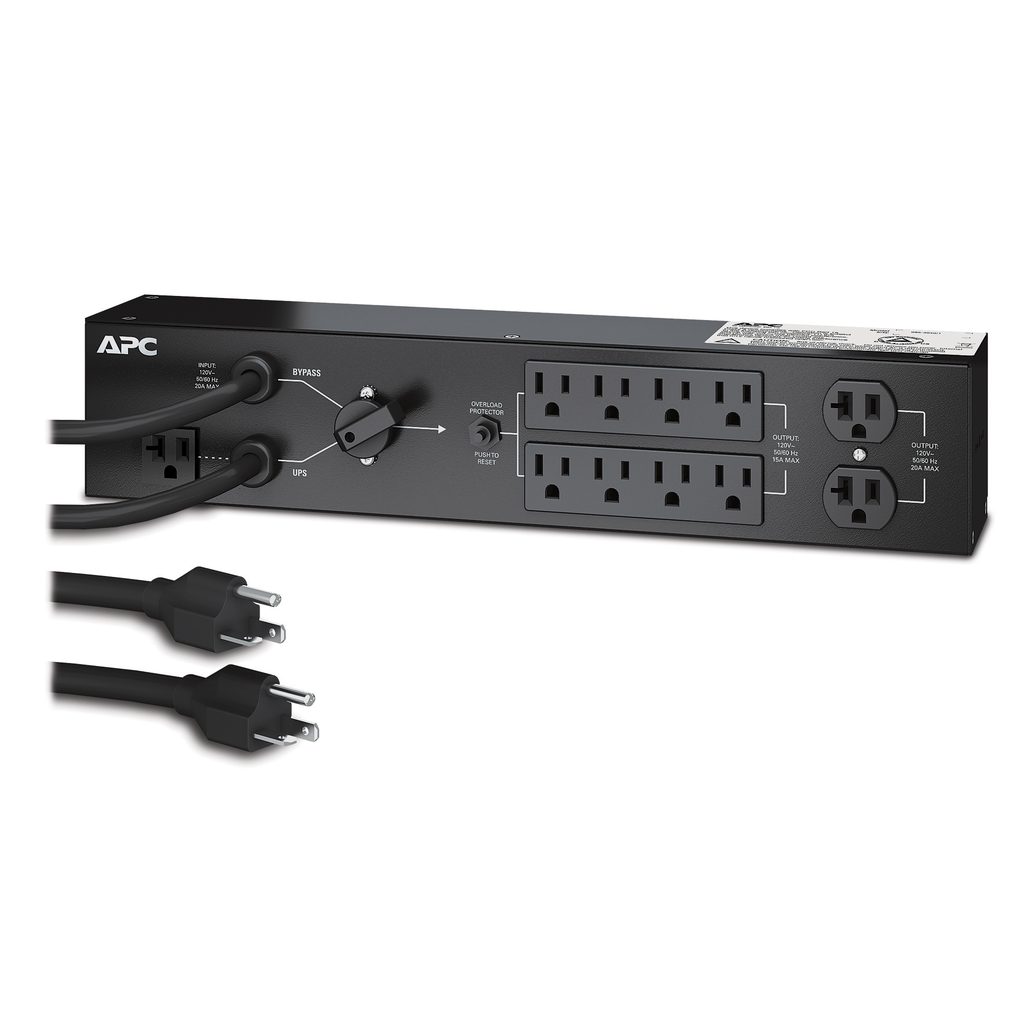

The APC Service Bypass Panel supports output voltage of 120V. It includes 8 NEMA 5-15R and 2 5-20R outlets. It features a 2U rack-mount design and is rack mountable. It includes rack mounting brackets and a user manual.

• Features
• APC SERVICE BYPASS PDU
• Designed to work with the world’s most popular network and server UPS
• Bypass/UPS switch allows switching the supply to the load b/w the incoming supply & UPS, to isolate UPS for maintenance
• Includes Rack mounting brackets & User manual
• 2 years repair or replace warranty

• Physical Attributes
• Cable Length : 2.4 m
• Color : Black
• Complementary Attributes
• Maximum Total Current Draw Per Phase : 20 A
• Important Information Attributes
• Persona Type Ids : EUA, VR
• Persona Type Names : Consumer, IT Channel Partner
• Number Of Power Socket Outlets : 8 NEMA 5-15R, 2 NEMA 5-20R10
• Provided Equipment : User Manual, Rack Mounting brackets
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Pre Comm Date : 2011-04-29
• Return Indicator : Y
• Device Type : UPS - Bypass Panels
• Serviceability : No
• Traceability : Yes
• Field Service Division : SPIBS
• Service Catalog Item : Finished good
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2405
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• Product Kit Identifier : N
• Acceptable Input Voltage : 100-125 V
• Cord Length : 4 ft
• Efficiency : 99 %
• Energy Efficiency Optimized : False
• Input Connection Type : NEMA 5-20P
• Load Capacity : 2200 VA
• Load Power Factor Range : 0-1
• Max Line Current : 20 A
• Mounting Location : front
• Mounting Mode : rack-mounted
• Mounting Preference : no preference
• Number Of Cables : 1
• Number Of Rack Unit : 2U
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : bypass kit
• Protection Type : circuit breaker
• Range Of Product : Maintenance Bypass Panels
• Returnability : Yes
• Sustainable Packaging : No
• Ups Size : L
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Height Nominal : 89 mm
• Width Nominal : 432 mm
• Certificate Agency : TÜV
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8537109170
• Warranty In Months : 24
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Ambient Air Temperature For Storage : -15-45 °C, -15-45 °C
• Take Back : Yes
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 0-40 °C
• Eu Rohs Directive : Compliant
• Operating Altitude : 0...15000 ft
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 %
• General Attributes
• Provided Equipment : User Manual, Rack Mounting brackets
• Product Or Component Type : bypass kit
• Range Of Product : Maintenance Bypass Panels
• ETIM
• ETIM 8 : EC002850
• ETIM 9 : EC002850
• ETIM 10 : EC002850
• Output Attributes
• Output Voltage : 120 V
• Contractual Warranty Attributes
• Warranty Period : 2 years repair or replace
• Warranty : 2 years repair or replace
• Input Attributes
• Efficiency : 99 %
• Input Current Limits : 20 A
• Input Frequency : 50/60 Hz
• Main Input Voltage : 120 V
• Specifications
• Country of Origin : India
• Depth : 76 mm
