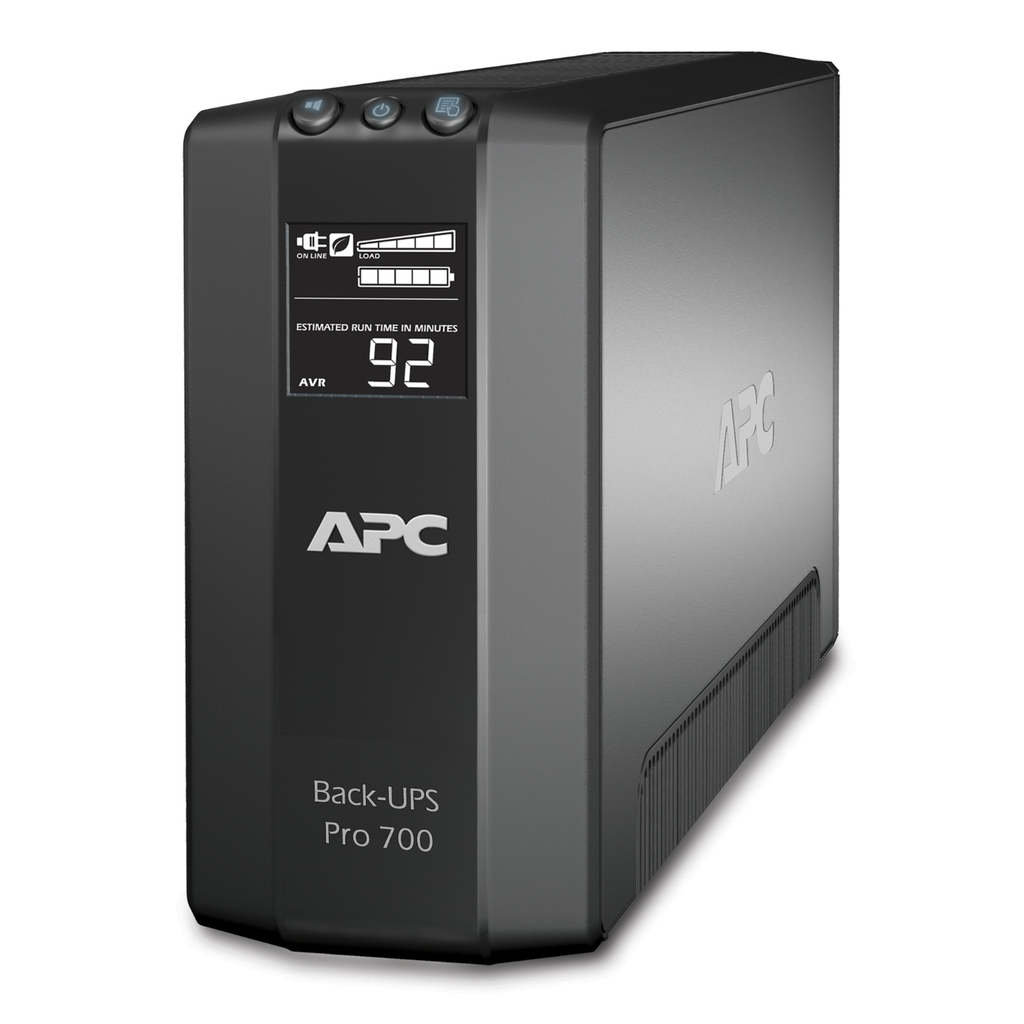

This product is part of the Back-UPS Pro range. This 700VA UPS has 6 total outlets, 3 outlets provide UPS power backup and surge protection, 3 outlets offer surge protection only. It features a built-in AVR and a LCD interface with audible alarms. Its dimensions are 7.48 x 3.58 x 12.2 inches and 15.76 lbs. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Control Panel : LED Status display with On Line : On Battery
• Physical Attributes
• Cable Length : 6 ft
• Color : Black
• Complementary Attributes
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Maximum Configurable Power In Va : 700 VA
• Maximum Input Current Per Phase : 12 A
• Rated Power In Va : 700 VA
• Rated Power In W : 420 W
• Important Information Attributes
• Persona Type Ids : EUA, OM, PB, SC, VR
• Persona Type Names : Consumer, Original Equipment Manufacturer, Panel Builder, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Mounting Mode : tower, not rack-mountable
• Output Connection Type : 3 NEMA5-15R, 3 NEMA5-15Rsurge
• Plug Standard : NEMA, 5-15P
• Topology : Line Interactive
• Carbon Footprint Of The Distribution Phase A4 : 0.8261818181818181, 0.8 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.7 kg CO2 eq., 0.7287272727272728
• Carbon Footprint Of The Installation Phase A5 : 0, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 77 kg CO2 eq., 76.65454545454546
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 207 kg CO2 eq., 206.54545454545453
• Warranty In Months : 12 Battery, 36 UPS
• Certificate Agency : NOM, TÜV, ENERGY STAR V2.0 (USA)
• Local Data Status : Publishable
• Local Publishable Date : 2026-05-13
• Pre Comm Date : 2009-07-23
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : UPS - Computer and Peripheral
• Serviceability : No
• Traceability : No
• Field Service Division : SPIBS
• Cr Shelf Life : 12
• Service Catalog Item : Finished good
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1712010_EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1915
• Rohs Eur Full Compliance Status : Compliant By Exemption
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Acoustic Level : 45 dBA
• Curve Equation : efficiency
• Curve Fixed Loss : 0.0055
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Curve Square Loss : 0.0046
• Curve Test Cond Id : Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve X Axis Title : load
• Curve X Axis Units : percentage
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Curve Y Axis Title : efficiency
• Curve Y Axis Units : percentage
• Data Line Protection : coaxial cable for CATV/SATV/modem/audio-video
• Efficiency At Full Load : 88...143 V
• Energy Efficiency Optimized : Energy efficient product
• Equipment Protection Policy : Lifetime : $150000
• Filtering : Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in
• Graph Display : 1
• Input Connection Type : NEMA 5-15P
• Maximum Configurable Power In Va : 700 VA
• Maximum Input Current Per Phase : 12 A
• Mounting Preference : no preference
• Number Of Tare Power : 5 W
• Performance Multiplier : 1
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Back-UPS Pro
• Rbc Quantity : 1
• Redundant : No
• Returnability : Yes
• Show Note Op Temperature : No
• Software Version : v6.2.5-6
• Surge Energy Rating : 354 J
• Sustainable Packaging : No
• Switching Current Capacity : 15 A
• Total Lifecycle Carbon Footprint : 285 kg CO2 eq.
• Transfer Time : 8ms typical : 12ms maximum
• Typical Recharge Time : 12 h
• Ups Connectivity : USB port
• Ups Size : WS
• Usb Compatible : Yes
• Value Multiplier : 1
• Waveform Type : Stepped approximation to a sinewave
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Type Of Usb Power Supply : none
• Output Frequency Sync To Mains : 50/60 Hz +/- 3 Hz sync to mains
• Max Configurable Power Watts : 420 W
• Pep Code : ENVPEP1712010EN
• Database Version : 2025-30
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; High voltage; 2020; Asia Pacific, APAC
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 62
• Offer Owner Code : 190792
• Pn : 1
• Height Nominal : 190 mm
• Scc14 : 10731304266799
• Width Nominal : 91 mm
• Environment Attributes Main
• Ambient Air Temperature For Storage : -15-45 °C, -15-45 °C
• Take Back : Yes
• Energy Star : ENERGY STAR UPS V2.0 (USA)
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Optimized Energy Efficiency : Energy efficient product
• Carbon Footprint : 285.09090909090907
• Ambient Air Temperature For Operation : 0-40 °C
• Circularity Profile : ENVEOLI1712010_EN
• Environmental Disclosure : ENVPEP1712010EN
• Eu Rohs Directive : Compliant By Exemption
• Online Thermal Dissipation : 48.5 Btu/h
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Storage Altitude : 0-3000 m
• Storage Relative Humidity : 0-95 %
• Pep Code : ENVPEP1712010EN
• Pep Verification Date : 2025-10-25
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Back-UPS Pro
• ETIM
• ETIM 8 : EC000382
• ETIM 9 : EC000382
• Output Attributes
• Output Voltage : 120 V AC 1 phase
• Surge Protection And Filtering Attributes
• Filtering : Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in
• Surge Energy Rating : 354 J
• Contractual Warranty Attributes
• Warranty Period : 3 years repair or replace
• Warranty : 3 years repair or replace
• Input Attributes
• Plug Standard : NEMA, 5-15P
• Efficiency At Full Load : 88...143 V
• Input Frequency : 50/60 Hz +/- 3 Hz auto-sensing
• Main Input Voltage : 120 V AC 1 phase
• Switching Current Capacity : 15 A
• Specifications
• Country of Origin : Philippines, United States
• Depth : 310 mm
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE, User replaceable
• Battery Power In Vah : 102 VAh capacity, 86 VAh runtime
• Battery Capacity : 9.0 Ah
• Battery Curve : C
• Battery Graph Comments : This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.
• Battery Life : 3-5 year(s)
• Battery Size : lead-acid internal included
• Battery Slots Empty : 0
• Battery Type : Lead-Acid battery
• Battery Voltage : 12 V
• Included Battery Modules : 1
• Battery Charge Power Watts : 7 W rated
