Surface Raceway, LD10 Right Angle Fitting, Low Voltage, Electric Ivory

LD10 RIGHT ANGLE EI

PANRAF10EI-X RAF10EI-X 074983251711
3.09 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surface Raceway, LD10 Right Angle Fitting, Low Voltage, Electric Ivory-1
  • Country of Origin: Costa Rica
  • Height: 0.91 in, 23.1 mm
  • Material: PVC
  • Mounting Type: Snap-On
  • Overall Length: 2.5 in, 63.5 mm
  • Type: Low Voltage Fitting
  • Width: 2.5 in, 63.5 mm

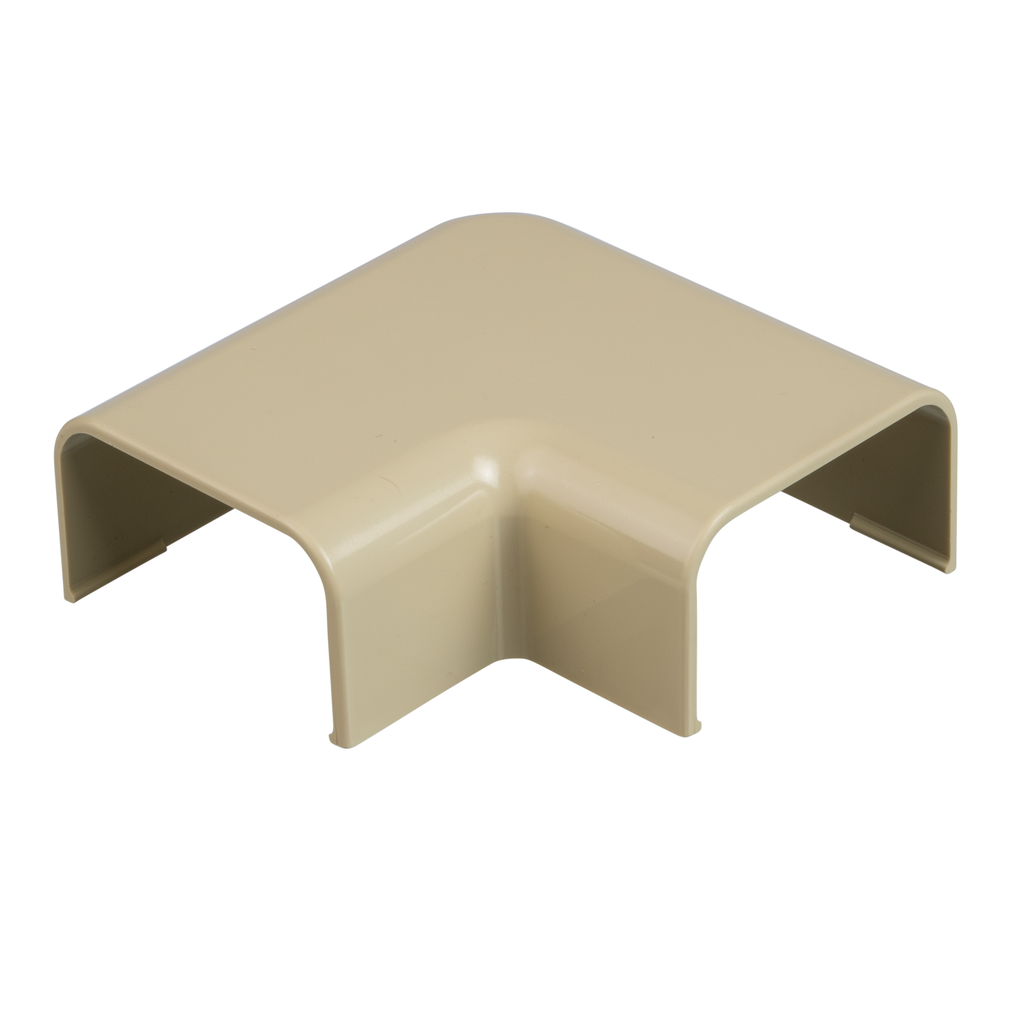

The right angle fitting is a one-piece Surface Raceway fitting designed to transition your raceway around a corner while maintaining a 1" bend radius. It is made to be used with the LD10 raceway, in applications up to 50 V. It is a snap-on installation and measures 2.5” in length. It is constructed with ABS plastic, meets TIA/EIA, and is Electric Ivory.
QTY
  • Product Description
  • Features
  • Specifications
The right angle fitting is a one-piece Surface Raceway fitting designed to transition your raceway around a corner while maintaining a 1" bend radius. It is made to be used with the LD10 raceway, in applications up to 50 V. It is a snap-on installation and measures 2.5” in length. It is constructed with ABS plastic, meets TIA/EIA, and is Electric Ivory.
  • Prop 65
    • No
  • Standards and Certifications
    • Standards Met: UL94V-0, FT4, Meets TIA/EIA Standards
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : EDI-ENT
    • Overall Length (mm) : 63.5
    • Overall Height (In.) : 0.91
    • Overall Width (In.) : 2.5
    • Product Type : Low Voltage Fitting
    • Overall Height (mm) : 23.1
    • Overall Width (mm) : 63.5
    • Application : Surface Raceway products provide flexibility for routing, protecting, and consealing Low-Voltage Data, Fiber Optic and Electrical Wiring within any Enterprise Environment
    • Material : PVC
    • Overall Length (In.) : 2.5
    • For Use With : LD10
    • Mount Method : Snap-On
    • Color : Electric Ivory
    • Fitting Type : Right Angle
    • Sub Brand : Pan-Way®
    • Raceway Type : Low Voltage
    • Material Properties : Rigid
  • Packaging Details
    • UPC : 07498325171
    • GTIN Package : 00074983251711
    • Standard Package Volume Ft3 : 0.0839
    • Standard Package Weight Pounds : 0.4610
    • Std Package Height In : 2.3
    • Std Package Height MM : 58.42
    • Std Package Length In : 9.9
    • Std Package Length MM : 251.46
    • Std Package Width In : 6
    • Std Package Width MM : 152.4
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • GTIN Carton : 50074983251716
    • Standard Carton Volume Ft3 : 0.4194
    • Standard Carton Weight Pounds : 2.3050
    • Std Carton Height In : 7.1
    • Std Carton Height MM : 180.34
    • Std Carton Length In : 11
    • Std Carton Length MM : 279.4
    • Std Carton Width In : 9.3
    • Std Carton Width MM : 236.22
    • Std Ctn Qty : 50
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : CR
    • EAN : 00074983251711
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 50.0000
    • Pallet Quantity : 3,600
    • Pallet Volume : 30.196883
    • Pallet Weight : 165.9600
    • RoHS Compliant : Compliant
