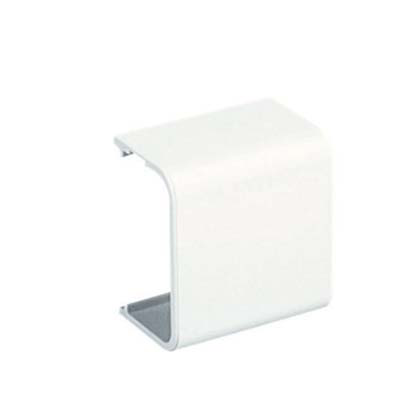

Surface Raceway, LD10 / LDPH10 Coupler, Power Rated, White

COUPLER FITTING LD10 WH

PANCFX10WHX CFX10WH-X 074983530724
3.71 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surface Raceway, LD10 / LDPH10 Coupler, Power Rated, White-1
  • Country of Origin: Costa Rica
  • Height: 0.93 in, 23.6 mm
  • Material: ABS
  • Mounting Type: Snap-On
  • Overall Length: 1.24 in, 31.5 mm
  • Type: Power Rated Fitting
  • Width: 1.62 in, 41.1 mm
The coupler fitting is used to efficiently manage cable placement. It is designed to be used with LD10, and LDPH10 Surface Raceway and is a 1.24 inch length. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It features a snap-on installation, is made of ABS plastic and is White.
QTY
  • Product Description
  • Specifications
The coupler fitting is used to efficiently manage cable placement. It is designed to be used with LD10, and LDPH10 Surface Raceway and is a 1.24 inch length. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It features a snap-on installation, is made of ABS plastic and is White.
  • Packaging Details
    • UPC : 07498353072
    • GTIN Package : 00074983530724
    • Standard Package Volume Ft3 : 0.0370
    • Standard Package Weight Pounds : 0.2800
    • Std Package Height In : 1.7
    • Std Package Height MM : 43.18
    • Std Package Length In : 6.95
    • Std Package Length MM : 176.53
    • Std Package Width In : 5.1
    • Std Package Width MM : 129.54
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • GTIN Carton : 50074983530729
    • Standard Carton Volume Ft3 : 0.1851
    • Standard Carton Weight Pounds : 1.4000
    • Std Carton Height In : 4.45
    • Std Carton Height MM : 113.03
    • Std Carton Length In : 10.15
    • Std Carton Length MM : 257.81
    • Std Carton Width In : 6.4
    • Std Carton Width MM : 162.56
    • Std Ctn Qty : 50
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : CR
    • RoHS Compliant : Compliant
    • EAN : 00074983530724
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 50
    • Pallet Quantity : 15,950
    • Pallet Volume : 59.030951
    • Pallet Weight : 446.6000
  • Specifications
    • Product Segment : EDI-ENT
    • Sub Brand : Pan-Way®
    • Product Type : Power Rated Fitting
    • Color : White
    • Fitting Type : Coupler
    • For Use With : LD10, LDPH10, LD2P10
    • Material : ABS
    • Mount Method : Snap-On
    • Raceway Type : Power Rated
    • Standards Met : Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
    • Overall Height (mm) : 23.6
    • Overall Height (In.) : 0.93
    • Overall Length (In.) : 1.24
    • Overall Length (mm) : 31.5
    • Overall Width (mm) : 41.1
    • Overall Width (In.) : 1.62
    • Application : Surface Raceway Products Provide Maximum Flexibility for Routing, Protecting, and Concealing High-Performance Copper, Voice, Video, Fiber Optic, and Electrical Wiring within any Enterprise Environment to Provide an Innovative and Satisfying Office Environ
