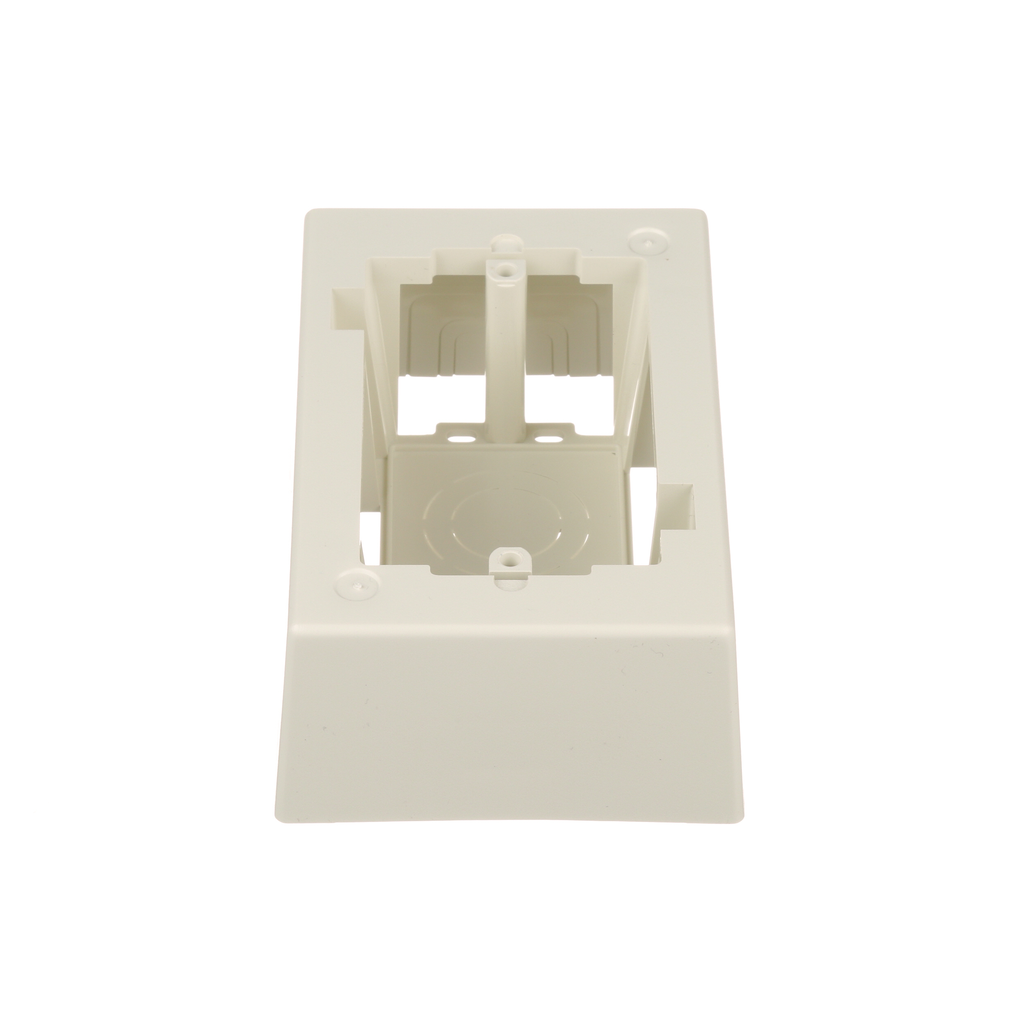

Surface Raceway, Low Voltage Junction Box, 1-gang, Off White

JUNCTION BOX 1G IW

PANJB1IWA JB1IW-A 074983582853
9.29 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surface Raceway, Low Voltage Junction Box, 1-gang, Off White-2
  • Country of Origin: USA
  • Height: 1.75 in, 44.4 mm
  • Material: ABS
  • Overall Length: 129.4 mm, 5.09 in
  • Type: Junction Box
  • Width: 3.34 in, 85 mm
The Low Voltage Surface Mount Outlet Box is a one-gang style box designed for low voltage applications. It is made to be used with the Pan-Way® LD profile raceway. The Low Voltage Surface Mount Outlet Box features breakout for 1/2”, 3/4”, or 1” diameter conduit as well as an adhesive backing. It accepts Pan-Way® Screw-On Faceplates or any NEMA standard single gang faceplate. It measures5.09" L x 3.34" W x 1.75" H (129.3mm x 84.8mm x 19.1mm). It is made of ABS plastic and is Off White.
QTY
  • Product Description
  • Specifications
The Low Voltage Surface Mount Outlet Box is a one-gang style box designed for low voltage applications. It is made to be used with the Pan-Way® LD profile raceway. The Low Voltage Surface Mount Outlet Box features breakout for 1/2”, 3/4”, or 1” diameter conduit as well as an adhesive backing. It accepts Pan-Way® Screw-On Faceplates or any NEMA standard single gang faceplate. It measures5.09" L x 3.34" W x 1.75" H (129.3mm x 84.8mm x 19.1mm). It is made of ABS plastic and is Off White.
  • Specifications
    • Product Segment : EDI-ENT
    • Product Type : Junction Box
    • Color : Off White
    • Gang Opening Type : Single Gang
    • Material : ABS
    • Raceway Type : One-Piece Outlet Box
    • Standards Met : RoHS Compliant
    • Sub Brand : Pan-Way®
    • Overall Length (mm) : 129.4
    • Overall Length (In.) : 5.09
    • Overall Width (mm) : 85
    • Overall Width (In.) : 3.34
    • Overall Height (mm) : 44.4
    • Overall Height (In.) : 1.75
    • Application : Single Gang One-Piece Outlet Box
  • Packaging Details
    • UPC : 07498358285
    • GTIN Package : 00074983582853
    • Standard Package Volume Ft3 : 0.0352
    • Standard Package Weight Pounds : 0.2276
    • Std Package Height In : 2.7
    • Std Package Height MM : 68.58
    • Std Package Length In : 6.6
    • Std Package Length MM : 167.64
    • Std Package Width In : 4.9
    • Std Package Width MM : 124.46
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50074983582858
    • Standard Carton Volume Ft3 : 0.3518
    • Standard Carton Weight Pounds : 2.2760
    • Std Carton Height In : 4.5
    • Std Carton Height MM : 114.3
    • Std Carton Length In : 13.35
    • Std Carton Length MM : 339.09
    • Std Carton Width In : 10.3
    • Std Carton Width MM : 261.62
    • Std Ctn Qty : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983582853
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 10.0000
    • Pallet Quantity : 1,430
    • Pallet Volume : 50.307197
    • Pallet Weight : 325.4680
